NSF

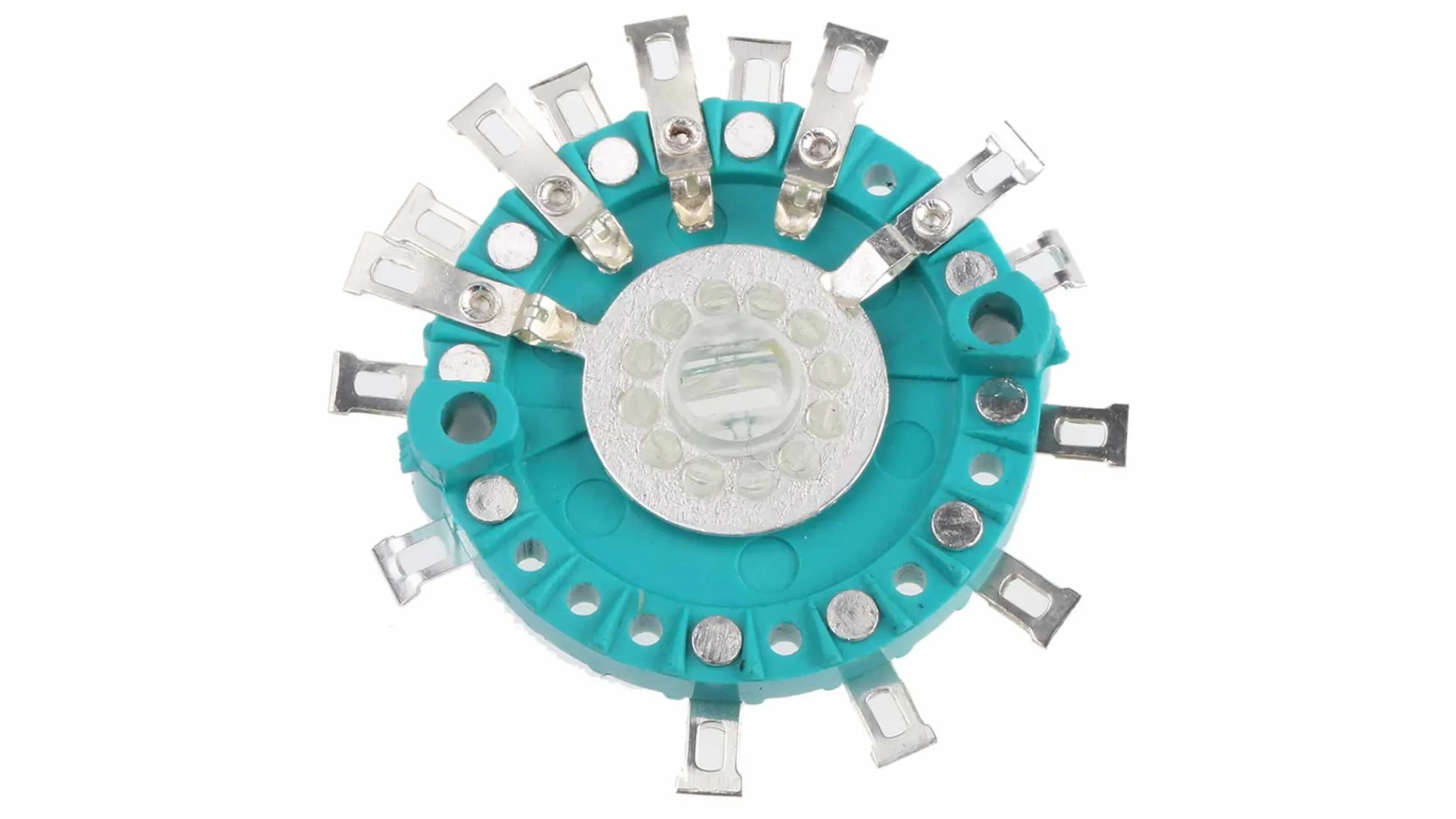

NSF Rotary Switch Wafer 4-Position

NSF Rotary Switch Wafer 4-Position

352-216

$ 107.00 SGD
$ 107.00 SGD
Sale Sold out
Shipping calculated at checkout.

Request For Quote
Attribute
Value
Diameter 25.4mm
Number of Switch Positions 4
Voltage Rating 300V ac/dc
Number of Contacts 3
Contact Configuration 3P4T
Contact Current Rating 150 mA @ 250 V ac
Contact Material Silver Plated Brass
Contact Type Non-Shorting
Minimum Operating Temperature -40°C
Maximum Operating Temperature +100°C
Mounting Type Panel Mount
Terminal Type Solder
Miniature Shaft Assembly & Wafers Miniature Shaft Assembly Double-spring detent mechanisms in miniature size Life expectancy >100000 detent operations 30° indexing and adjustable end stops Takes up to 8 miniature wafers (the capacity is reduced if spacers and/or screens are used) 6mm diameter shaft and M10 x 0.75 mounting bushes Overall length 94mm, front shaft length 12mm Optional accessories are available for to suit individual requirements Wafers Glass-fibre loaded diallyl phthalate stators, polycarbonate rotors and silver-plated contacts Available in break before make (bbm), and make before break (mbb) versions 25mm diameter
