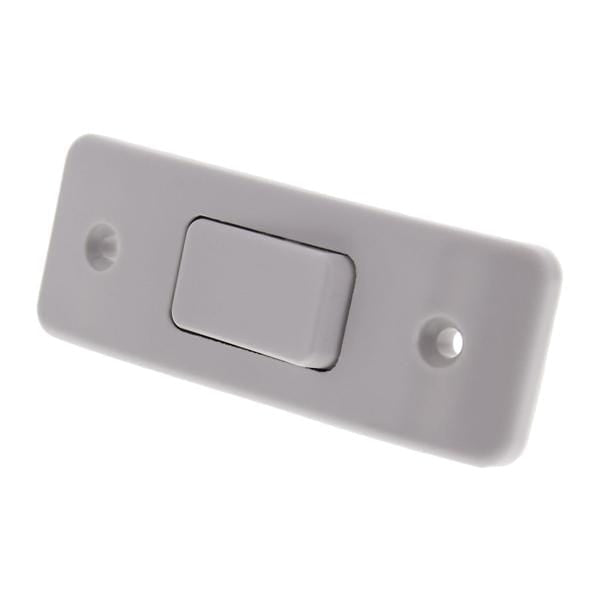

MK Electric White 10A Flush Mount Rocker 2 Way Clip Light Switch x12Pcs
MK Electric White 10A Flush Mount Rocker 2 Way Clip Light Switch x12Pcs
SKU SKU:4408773
Out of stock
Couldn't load pickup availability
Share
Technical data sheets
*Check stock before ordering. Lead time 4 working days.*
Product Details
10A Flush Mount Architrave Switches
A flush 10A single pole two way switch and a separately available blanking plate
Antimicrobial properties which inhibit the growth of infectious diseases
No derating necessary when used with fluorescent or inductive loads
Wire as one or two way as required
Standards
BS3676 Pt.1 : 1989
Standards
BS3676 Pt.1 : 1989
Supplied with
8888
MK Logic Plus Flush Mounting
Stylish, quality, reliable and safe products that incorporate a host of design features which make the installers job easier and quicker. Logic Plus products are made from a high grade thermoset material which has an inherent antimicrobial property. In recent independent tests, the Logic Plus products were equal to, or exceeded, competitor ’Anti-Bac’ products when tested for resistance to MRSA, E-Coli, Salmonella and Klebsiella Pneumoniae.
Specifications
| Attribute | Value |
| Switch Type | Rocker |
| Number of Gangs | 1 |
| Number of Poles | 1 |
| Number of Ways | 2 |
| Mount Type | Flush |
| Current Rating | 10 A |
| IP Rating | IP2X |
| Colour | White |
| Material | Urea Formaldehyde |
| Series | Logic Plus |
| Voltage Rating | 250 V ac |
| Finish | Semi Gloss |
| Illumination | Not Illuminated |
| Faceplate Fixing | Clip In |
| Colour Shade | MK White |
| Faceplate Depth | 7 mm |
| Minimum Box Depth | 16mm |
| Fixing Standard | BS Standard |
| Number of Modules | 1 |
| Width | 32 mm |
| Height | 86mm |
| Termination Type | Captive Screw |
| Length | 86 mm |
