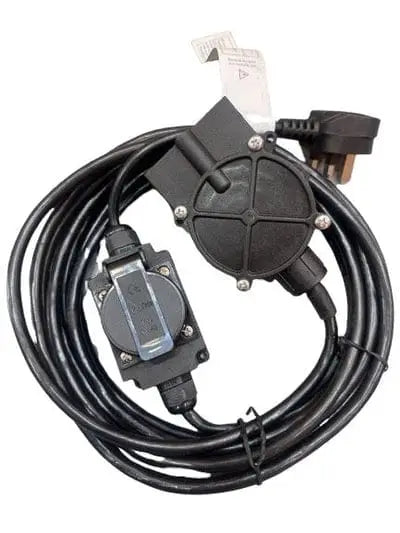

Mepcato Piggyback Diaphragm Switch (Extra Low Level) | Model : WP*X1000

Mepcato Piggyback Diaphragm Switch (Extra Low Level) | Model : WP*X1000 The remote switch X1000 for submersible pumps can be used either by attaching it to Little Giant 5-MPS pump or used separately with other pumps to control on-off operation of the pump. The switch is activated by pressure to a diaphragm which activates a switch providing power to the pump. Features : Converts any manual pump to automatic operation, up through 1 HP Easy Installation, with Quick Piggy-Back Plugs and Power Socket When the water drops too low, the switch turns the pump off; when the water level comes back up the switch turns the pump back on Match with Little Giant 5-MSP,start level 5cm-7.6cm,off level 1.27cm-3.8cm Specifications : Type : Diaphragm Max. Amps Running : 10A Voltage : 115V/230V PVC Cord Length : 5.5m connect cord & 0.25m power cable Max. temperature : 50°C Dimensions : Switch - 148x86x42mm, Socket - 130x55x52mm Installation : For installation on the Little Giant 5-MSP, 6-CIM-R or 6-CBM-R pumps For installation on M-100, HOME, CSS-250, 50PS pumps For universal installation, X-1000 can be attached to a pipe with the cable ties provided Automatic power cord contains a breather tube. Be sure power cord is not pinched so that breather tube is obstructed. Non-restrictive air flow in breather tube is required for proper operation Test the pump after all electrical connections have been made. Do not attempt to run the pump without water; this could result in permanent damage to the pump
