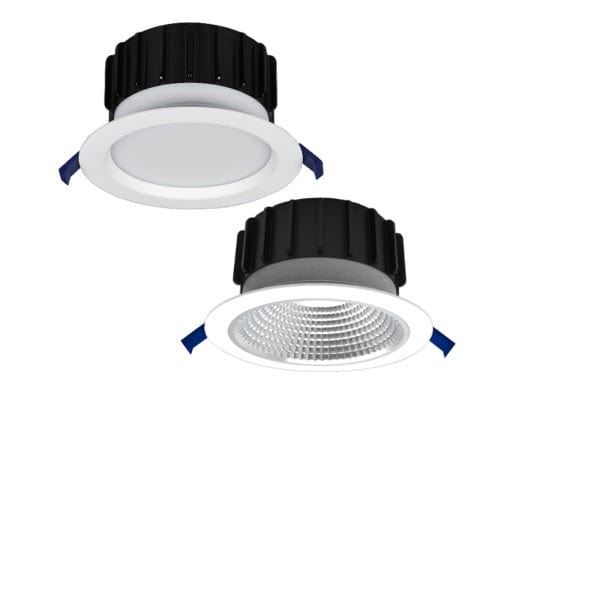

Megaman PROV1 DL MILENA 19.5/25W R150 3000K/4000K SDIM ACT IP54 Integrated LED Downlight

Megaman PROV1 DL MILENA 19.5/25W R150 3000K/4000K SDIM ACT IP54 Integrated LED Downlight

SKU SKU:4892657117363

Regular price $58.00 USD
Regular price $60.00 USD Sale price $58.00 USD
Sale Sold out
Shipping calculated at checkout.

175 in stock

Technical Details:

Datasheet

PRODUCT FEATURES

• Modular downlight unit consist of dual-lumen output & dual-CCT LED light engine and a reflector or diffuser bezel.

• The modular components design allows the assembly in-situ with tooless installation • The flexibility modular design enables a faster delivery period for customer requirements, which is an ideal solution for short lead time projects

• Offer high cut-off angle for better glare control in reflector version

• Tooless terminal block facilitate easy installation and maintenance, and through wiring possible

• Wide range of sizes allow retrofit for many conventional downlights in existing ceiling cut-outs

• Delivery of wide and uniform light distribution

• Flicker free ≤ 3% to avoid eye fatigue

• IP54 rated for damp location such as bathroom and kitchen



Lumen Output: 2500 lm

Lifespan: 50,000 h

Electrical Data
Voltage (V) 220-240V
Frequency (Hz) 50/60
Input Current (mA) 139/109
Power Factor (λ) >0.9



Product Data
Product Wattage (W) 25/19.5
Light Source Integrated LED-3000/4000
Beam Angle (°) 100
Colour Render Index (Ra) > Ra80
Protection Class CL II
Colour Consistency (SDCM) ≤4
Energy Label A+
Operating Temperature -30°C to +40°C
Switching Cycles (times) 100,000
Weight (g) 550
Application Retails, Bathrooms, Hotels, Kitchens, Offices, Restaurants



Performance Data
Total Luminous Flux (lm) 2320/1860 @3000K 2500/2000 @4000K
Luminous Flux (lm) 2320/1860 @3000K 2500/2000 @4000K
Luminous Efficacy (lm/W) 93/95@3000K 100/103@4000K
IP Rating IP20/IP54



Product Dimensions
Diameter (mm) 172
Height (mm) 87
