MEGAMAN LED 1.9W Filament A60 Bulb

MEGAMAN LED 1.9W Filament A60 Bulb

SKU 4892657100211

$ 9.80 SGD
$ 10.00 SGD $ 9.80 SGD
Sale Sold out
Shipping calculated at checkout.

281 in stock
Request For Quote

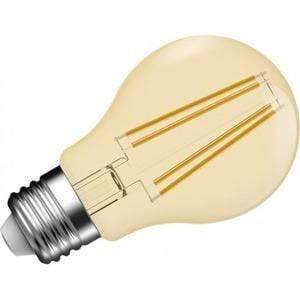

Install this beautiful and classy MEGAMAN LED 1.9W FILAMENT A60 LED bulb which has got classy and vintage look with clear golden plastic covering. The product can also be used as decoration lights for home, during festivals, parties or family get together.



General Data



Rated Voltage [V]

220-240

Surge Voltage [V]

500

Frequency [Hz]

50

Lamp Wattage [W]

1.9

Lamp Current [mA]

19

Power Factor

N/A

Dimmable[N/Y]

N

Outdoor Use[N/Y]

N

DC 230V Input [N/Y]

N

Operating Temp [℃]

-30 to +45

Light Data [Initial]



Lux distribution [lux]

N/A

Max.luminous Intensity[cd]

N/A

Beam Angle[°]

N/A

Total lumen[lm]

200

90° Useful Lumen[lm]

N/A

120° Useful Lumen[lm]

N/A

Color Temperature [K]

2000

SDCM

≤6

Color Rendering Index

80

Energy class

A++

Weighted energy consumption

2

Equivalence Wattage(W)

21

Lamp Efficacy

105

LLMF

≥0.7

Warm Up Time 60%[sec]

Instant full light

Starting Time[sec]

<0.5

Warning for lamp >90 deg

N/A

Inrush current Ipeak(A)

TBA

Inrush current Twidth(uS)

TBA

Percentage Flicker(%)

<3

EEI

0.09

Life Time [at 230V, lot size min. 20 units]



Life Time at 230V, 25℃ [h]

15,000

Switching cycle up to 50% failure (30s on, 30s off) [cycles]

>100,000

Geometrical Data

  •  Diameter (R) [mm] 60±1.0
  • Diagonal(D)[mm] N/A
  • Width(W)[mm] N/A
  • Height(H)[mm] N/A
  •      Length (L) [mm]   104±3.0
  • Weight [g] 4
  • Base E27
  • RoHS Compliant
  • Color of plastic component Golden Clear
  • Cover finish Glass
  • Flammability of plastic component ≥V2
  • Technical Data
    • Safety Requirement according to IEC/EN 62560

according to IEC/EN 62493

  • Photobiological Safety according to IEC/EN62471
  • Performance Requirement according to ERP 244

according to IEC 62612

  • EMC Requirement according toEN 55015

according toIEC/EN 61547

according toIEC/EN 61000-3-2

according toIEC/EN 61000-3-3

  • Approvals CE
  • Lamp cap twist safe[Nm] 3
