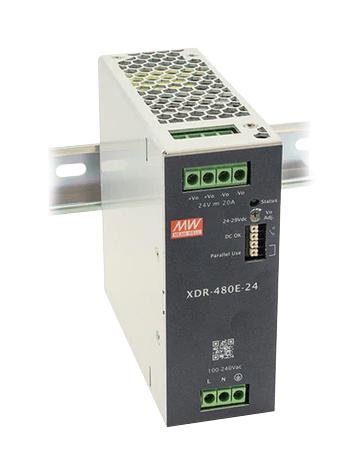

MEANWELL XDR-480E-24 - 480W 24V 20A ACTIVE PFC SINGLE OUTPUT DIN RAIL

H125 W48 D125mm ~0.9kg

XDR-480E-24 is a XDR-480E series, 480W AC/DC economical ultra-slim industrial DIN rail power supply. Key features of this series include a narrow 48mm casing, optimising system installation space, and an ultra-wide input range suitable for global use. It boasts a maximum efficiency and a low standby power consumption less than 1.2W for energy savings and carbon reduction. It features UL61010, TUV BS EN/EN62368-1, BS EN/EN61558-1/-2-16, BS EN EN61010; CB IEC62368-1, IEC61558-1, IEC61010; RCM AS/NZS 62368-1, AS/NZS 61558-1/-2-16;BSMI CNS15598-1;CCC GB4943.1 safety certifications. Suitable for industrial control system, semiconductor fabrication equipment, factory automation, electro-mechanical apparatus, and battery charger applications.

• Input voltage range from 85-264V AC with PFC and 120 to 370V DC
• 24V DC rated output voltage, 20A rated output current
• Typical efficiency of 95.5% and 480W rated power
• Built-in constant current limiting circuit and built-in DC OK relay contact
• Protections: short circuit, overload, over-voltage, over-temperature
• Fanless design, cooling by free air convection
• Over-voltage category III (OVC III)
• Wide operating temperature range of -40°C to +70°C (up to +50°C at full load)
• Can be installed on DIN rail TS-35/7.5 or 15
• 3-year warranty
