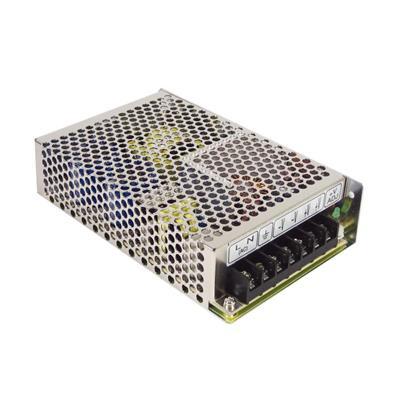

MEANWELL RQ Series Switch Mode Power Supply
MEANWELL RQ Series Switch Mode Power Supply
SKU:RQ-65D
Couldn't load pickup availability
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
Contact Us
Contact Us
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
Share
Description
Switch-mode power supply unit (SMPS PSU) - Meanwell (RQ) - output voltage 5Vdc / 12Vdc / 24Vdc / 12Vdc - Output current 8A / 3A / 1.5A / 1A - Rated power 65W - Input voltage 115-230Vac (200Vac / 208Vac / 220Vac / 230Vac nom.) (Single phase) - Rated for -20...+70°C ambient
MEAN WELL ENCLOSURED SWITCHING POWER SUPPLY; AC-DC
| Product: | Switching Supplies |
|---|---|
| Product Category: | Switching Power Supplies |
| Open Frame / Enclosed | Enclosed |
| Brand | Mean Well |
| Carton Dimension | 35.15x32.72x18.4 |
| Gross Weight: | 14.1 kg |
| Input Voltage: | 88 VAC to 264 VAC |
| Output voltage (DC) |
5Vdc 12Vdc 24Vdc 12Vdc |
|
Supply voltage (AC)
|
115-230Vac (200Vac / 208Vac / 220Vac / 230Vac nom.) |
|
Rated current
|
8A 3A 1.5A 1A |
|
Current consumption
|
40A A |
|
Rated power
|
65W |
|
Type
|
Input = Single phase Without PFC |
|
Protection functions
|
Short-circuit Over load Over voltage Over temperature |
|
Accuracy class
|
Voltage tolerance +/-±2% Voltage tolerance +/-±6% Voltage tolerance +/-±8% Voltage tolerance +/-±5% |
|
Efficiency
|
0.78 |
| Model | RQ-65D |
| Net Weight: | 13.1 kg |
| Number of Outputs: | 4 Output |
| Output Current Channel 1: | 4 A |
| Output Voltage Channel 1: | 5 VDC |
| Output Current Channel 2: | 1.5 A |
| Output Voltage Channel 2: | 12 VDC |
| Output Current Channel 3: | 1 A |
| Output Voltage Channel 3: | 24 VDC |
| Mounting Style: | Chassis |
| Height: | 38 mm |
| Length: | 129 mm |
| Width: | 98 mm |
| Dimensions: | 129 mm L x 98 mm W x 38 mm H |
| Safety: | CUL,TUV,CB,CE |
| Serie: | RQ-65 |
| Specification | O/P +5V4A +12V1.5A 24V1A -12V0.5A |
| Output Power: | 65 W |
| Factory Pack Quantity: | 30 |
| Number Of Outputs: | 4 Output |
| Output Voltage: | 5VDC |
| Output Power: | 65W |
| Output Current: | 4 A |
| Is Premium Price | Yes |
| Net weight(pc) | 0.5 |

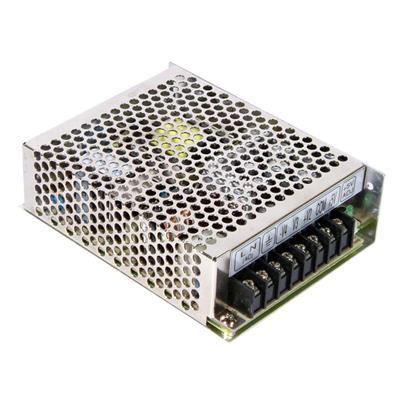

RQ-85B
Description
Switch-mode power supply unit (SMPS PSU) - Meanwell (RQ) - output voltage 5Vdc / 12Vdc / -5Vdc / -12Vdc - Output current 10A / 4A / 1A / 1A - Rated power 85W - Input voltage 115-230Vac (200Vac / 208Vac / 220Vac / 230Vac nom.) (Single phase) - Rated for -20...+70°C ambient
MEAN WELL ENCLOSURED SWITCHING POWER SUPPLY; AC-DC
| Product: | Switching Supplies |
|---|---|
| Product Category: | Switching Power Supplies |
| Open Frame / Enclosed | Enclosed |
| Brand | Mean Well |
| Carton Dimension | 35.15x32.72x18.4 |
| Gross Weight: | 14.1 kg |
| Input Voltage: | 88 VAC to 264 VAC, 125 VDC to 373 VDC |
|
Output voltage (DC)
|
5Vdc 12Vdc -5Vdc -12Vdc |
|
Supply voltage (AC)
|
115-230Vac (200Vac / 208Vac / 220Vac / 230Vac nom.) |
|
Rated current
|
10A 4A 1A 1A |
|
Current consumption
|
40A A |
|
Rated power
|
85W |
|
Type
|
Input = Single phase Without PFC |
|
Protection functions
|
Short-circuit Over load Over voltage Over temperature |
|
Accuracy class
|
Voltage tolerance +/-±2% Voltage tolerance +7/-3 Voltage tolerance +/-±8% Voltage tolerance +/-±5% |
|
Efficiency
|
0.76 |
| Model | RQ-85B |
| Net Weight: | 13.1 kg |
| Number of Outputs: | 4 Output |
| Output Current Channel 1: | 7 A |
| Output Voltage Channel 1: | 5 VDC |
| Output Current Channel 2: | 3.1 A |
| Output Voltage Channel 2: | 12 VDC |
| Output Current Channel 3: | 0.5 A |
| Output Voltage Channel 3: | - 5 VDC |
| Mounting Style: | Chassis |
| Height: | 38 mm |
| Length: | 159 mm |
| Width: | 97 mm |
| Dimensions: | 159 mm L x 97 mm W x 38 mm H |
| Safety: | CUL,TUV,CB,CE |
| Serie: | RQ-85 |
| Specification | O/P +5V7A +12V3.1A -5V0.5A -12V0.5A |
| Output Power: | 35 W |
| Factory Pack Quantity: | 24 |
| Number Of Outputs: | 4 Output |
| Output Voltage: | 5VDC |
| Output Power: | 35W |
| Output Current: | 7 A |
|
Is Premium Price |
Yes |
|
Net weight(pc) |
0.6 kg |
