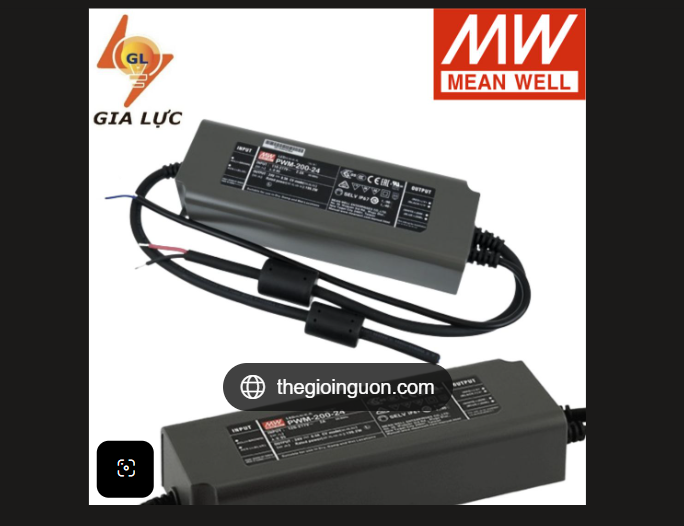

MEANWELL PWM-200-24 - 199.2W 24V 8.3A IP67 LED DRIVER, CONSTANT VOLTAGE, PWM OUTPUT, 3 IN 1 DIMMING

H40 W195 D68mm ~1.0kg

The MEAN WELL PWM-200-24 is a high-performance 199.2W constant-voltage LED driver designed to provide reliable 24V DC power for LED strip lighting, decorative lighting, architectural lighting, and other professional LED applications. It delivers up to 8.3A at 24V DC and features a PWM-style output specifically designed to maintain consistent LED brightness and color performance.

Key Features:

• Output: 24V DC, 8.3A
• Rated power: 199.2W
• Constant-voltage PWM output
• Wide input range: 100–305VAC
• IP67 fully encapsulated construction
• 3-in-1 dimming: 0–10V DC / PWM / resistance
• PWM output frequency up to 4kHz
• Class II isolated design with PFC
• Standby power consumption below 0.5W
• Typical lifetime: >50,000 hours
• Suitable for dry, damp, and wet locations
• Ideal for LED strips, architectural, decorative, and indoor LED lighting
• 5-year warranty
