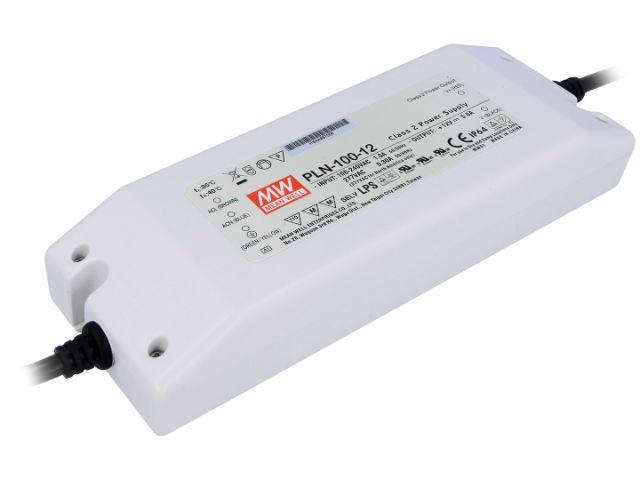

MEANWELL PLN Series Constant Voltage Power Supply
MEANWELL PLN Series Constant Voltage Power Supply
SKU SKU:PLN-30-36
Regular price
$ 43.37 SGD
Regular price
Sale price
$ 43.37 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Features:
- Universal AC input / Full range (upto 295 VAC)
- Protections:Short circuit / over current / over voltage / over temperature
- Cooling by free air convection
- Built in constant current limiting circuit with adustable OCP level
- Fully isolated plastic case with IP64 level
- Built in active PFC function
- Pass LPS
- Class II power unit , no FG
- Class 2 power unit
- 100% full load burn-in test
- High Reliability
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
Specification:
| Product: | Switching Supplies |
|---|---|
| Product Category: | LED Power Supplies |
| Brand | Mean Well |
| Carton Dimension | 43.4x34x24 |
| Gross Weight: | 14.2 kg |
| Input Voltage: | 90 VAC to 264 VAC, 127 VDC to 370 VDC |
| Model | PLN-30-36 |
| Net Weight: | 13.4 kg |
| Number of Outputs: | 1 Output |
| Output Current Channel 1: | 0.84 A |
| Output Voltage Channel 1: | 36 VDC |
| Mounting Style: | Chassis |
| Dimensions: | 145 mm L x 47 mm W x 30 mm H |
| Dimming: | Without Dimming |
| Safety: | CUL,TUV,CB,CE,TUV PSE |
| Serie: | PLN-30 |
| Specification | O/P +36V0.84A |
| Output Power: | 30 W |
| Factory Pack Quantity: | 60 |
| Number Of Outputs: | 1 Output |
| Output Voltage: | 36VDC |
| Output Power: | 30W |
| Output Current: | 0 - 0.99 A |
| Is Premium Price | Yes |
| Product: | Switching Supplies |
|---|---|
| Product Category: | LED Power Supplies |
| Brand | Mean Well |
| Carton Dimension | 39.5x26.2x20.8 |
| Gross Weight: | 12 kg |
| Input Voltage: | 90 VAC to 264 VAC, 127 VDC to 370 VDC |
| Model | PLN-100-12 |
| Net Weight: | 11.5 kg |
| Number of Outputs: | 1 Output |
| Output Current Channel 1: | 5 A |
| Output Voltage Channel 1: | 12 VDC |
| Mounting Style: | Chassis |
| Dimensions: | 200 mm L x 70.5 mm W x 35 mm H |
| Dimming: | Without Dimming |
| Safety: | CUL,TUV,CB,CE,TUV PSE |
| Serie: | PLN-100 |
| Specification | O/P +12V5A |
| Output Power: | 60 W |
| Factory Pack Quantity: | 20 |
| Number Of Outputs: | 1 Output |
| Output Voltage: | 12VDC |
| Output Power: | 60W |
| Output Current: | 5 A |
| Is Premium Price | Yes |
