MEANWELL NED Series Dual Output Switch Mode Power Supply
MEANWELL NED Series Dual Output Switch Mode Power Supply
SKU SKU:NED-35A
Regular price
$ 33.55 SGD
Regular price
$ 36.00 SGD
Sale price
$ 33.55 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
NED-35W
Description
Dual-output switch-mode power supply unit (SMPS PSU) - Meanwell (NED-35A/50B) - output voltage (output 1 nom.) 5Vdc / (output 2 nom.) 12Vdc/24Vdc - Output current 0.5-5A/1-6A (output 1) / 0.1-1.5A/0.2-2A (output 2) - Rated power 35W / 32W /50W/54W(maximum) - Input voltage 85-264Vac (100Vac / 110Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac nom.) (Single phase) - Rated for -20…+60°C ambient - 2-outputs
MEAN WELL ENCLOSURED SWITCHING POWER SUPPLY; AC-DC
Specification:

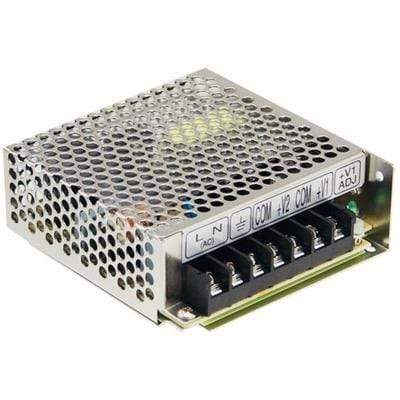

NED-35A
| Lifecycle: | NRND: Not recommended for new designs. |
|---|---|
| Product Category: | Switching Power Supplies |
| Brand | Mean Well |
| Carton Dimension | 34x33x23.5 |
| Gross Weight: | 19.3 kg |
| Input Voltage: | 90~264 |
| Output voltage (DC) |
(output 1) 4.75Vdc-5.50Vdc (adjustable range) (output 1 nom.) 5Vdc (output 2) 11.4-13.2Vdc (adjustable range) (output 2 nom.) 12Vdc |
| Supply voltage (AC) | 85-264Vac (100Vac / 110Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac nom.) |
| Supply voltage (DC) | 120-370Vdc (120Vdc / 127Vdc / 200Vdc / 220Vdc / 250Vdc nom.) |
| Rated current |
0.5-5A (output 1) 0.1-1.5A (output 2) |
| Protection functions |
Short-circuit Over load (Hiccup mode; auto-recovery) Over voltage (Rated output voltage; shut off) |
| Protection settings |
Over load (110-150%) Over voltage (115-135%) |
| Accuracy class | (output 1) 2.0% (output 2) 6.0% |
| Ripple | (output 1) 80mV (output 2) 120mV |
| Model | NED-35A |
| Net Weight: | 18.3 kg |
| Output Voltage Channel 1: | 5/12, 5/24 |
| Dimensions: | 99x97x36mm |
| Safety: | CUL,CB |
| Serie: | NED-35 |
| Specification | O/P +5V4A +12V1A |
| Output Power: | 35 |
| Approvals: | UL60950-1 |
| Factory Pack Quantity: | 45 |
| Output Power: | 35W |
| Is Premium Price | Yes |
| Gross weight(pc) | 0.4 kg |

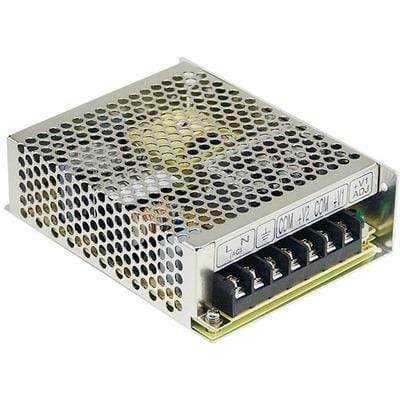

NED-50B
| Product: | Switching Supplies |
|---|---|
| Lifecycle: | NRND: Not recommended for new designs. |
| Product Category: | Switching Power Supplies |
| Brand | Mean Well |
| Carton Dimension | 42.5x33x25 |
| Gross Weight: | 14.1 kg |
| Input Voltage: | 85 VAC to 264 VAC, 120 VDC to 370 VDC |
| Output voltage (DC) |
(output 1) 4.75Vdc-5.50Vdc (adjustable range) (output 1 nom.) 5Vdc (output 2) 22.8-26.4Vdc (adjustable range) (output 2 nom.) 24Vdc |
| Supply voltage (DC) | 120-370Vdc (120Vdc / 127Vdc / 200Vdc / 220Vdc / 250Vdc nom.) |
| Rated current |
1-6A (output 1) 0.2-2A (output 2) |
| Rated power |
50W 54W (maximum) |
| Protection functions |
Short-circuit Over load (Hiccup mode; auto-recovery) Over voltage (Rated output voltage; shut off) |
| Type |
Input = Single phase 2 output channels Without PFC |
| Protection settings |
Over load (110-150%) Over voltage (115-135%) |
| Accuracy class |
(output 1) 2.0% (output 2) 6.0% |
| Ripple | (output 1) 80mV (output 2) 200mV |
| Model | NED-50B |
| Net Weight: | 13.1 kg |
| Number of Outputs: | 2 Output |
| Output Current Channel 1: | 4 A |
| Output Voltage Channel 1: | 5 VDC |
| Output Current Channel 2: | 1.4 A |
| Output Voltage Channel 2: | 24 VDC |
| Mounting Style: | Chassis |
| Dimensions: | 129x98x38mm |
| Safety: | CUL,CB |
| Serie: | NED-50 |
| Specification | O/P +5V4A +24V1.4A |
| Output Power: | 50 W |
| Approvals: | UL60950-1 |
| Factory Pack Quantity: | 30 |
| Number Of Outputs: | 2 Output |
| Output Voltage: | 5VDC |
| Output Power: | 50W |
| Output Current: | 4 A |
| Is Premium Price | Yes |
| Gross weight(pc) | 0.5 kg |
