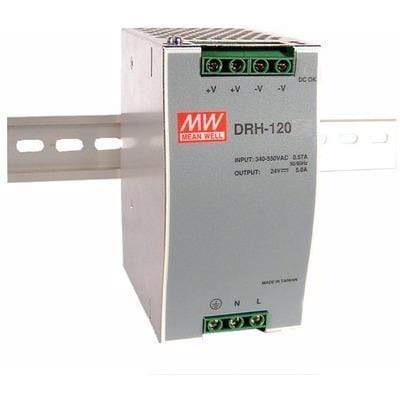

MEANWELL DRH Series Rail Mount Power Supply

MODEL

DRH-120-24

DRH-120-48

OUTPUT

DC VOLTAGE

24V

48V

RATED CURRENT

5A

2.5A

CURRENT RANGE

0 ~ 5A

0 ~2.5A

RATED POWER

120W

120W

RIPPLE & NOISE (max.) Note.2

80mVp-p

80mVp-p

VOLTAGE ADJ. RANGE

24 ~ 28V

48 ~ 55V

VOLTAGE TOLERANCE Note.3

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

LOAD REGULATION

±0.5%

±0.5%

SETUP, RISE, HOLD UP TIME

1700ms, 120ms, 16ms/400VAC           1000ms, 120ms, 30ms/500VAC at full load

INPUT

VOLTAGE RANGE

340 ~ 550VAC           480 ~ 780VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

85%

86%

AC CURRENT

0.65A/400VAC           0.6A/500VAC

INRUSH CURRENT (max.)

COLD START 50A

LEAKAGE CURRENT

<3.5mA / 530VAC

PROTECTION

OVERLOAD

105 ~ 160% rated output power

Protection type : Constant current limiting, recovers automatically after fault condition is removed

OVER VOLTAGE

30 ~ 36V

59 ~ 66V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.

-20 ~ +60℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃)

VIBRATION

Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6

SAFETY & EMC

(Note 4)

SAFETY STANDARDS

UL60950-1, EAC TP TC 004 approved, IEC60950-1 CB approved by SIQ

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55011 (CISPR11), EN55032 (CISPR32), EN61204-3 Class B, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020

OTHERS

MTBF

178.7Khrs min.       MIL-HDBK-217F (25℃)

DIMENSION

65.5*125.2*100mm (W*H*D)

PACKING

0.75Kg; 20pcs/16Kg/1.29CUFT

NOTE

1.  All parameters NOT specially mentioned are measured at 400VAC input, rated load and 25℃ of ambient temperature.

2.  Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3.  Tolerance : includes set up tolerance, line regulation and load regulation.

4.   The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

5.  The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}.
