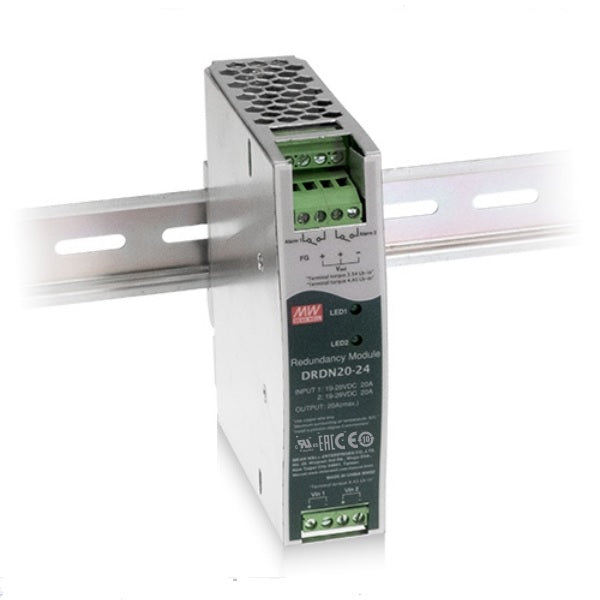

Meanwell DRDN20 Series 20A Power Supply Redundancy Module

Meanwell DRDN20 Series 20A Power Supply Redundancy Module

DRDN20-24

$ 55.00 SGD
$ 59.00 SGD $ 55.00 SGD
Sale Sold out
Shipping calculated at checkout.

Request For Quote

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

Contact Us

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

Technical Details:

Datasheet.

Features:

  • Support 1+1 and N+1 redundancy system

  • 2 channels input and 1 output

  •  Suitable for redundancy operation of 12V/24V/48V system

  •  Output current up to 20A

  •  Cooling by free air convection

  •  40~+80C ultra-wide operating temperature ( >+60C derating)

  •  32mm slim width

  •  Built-in 2 channels DC OK signal and alarm relay contact

  •  Installed on DIN Rail TS35/7.5 or 15

  •  3 years warranty.

Applications:

  • Industrial control system.
  • Semiconductor fabrication equipment.
  • Factory automation.
  • Electro-mechanical apparatus.

Description

The DRDN20 series is a 20A redundancy module that can be used with a power supply to improve overall system operation reliability. Product key features include:12V/24V/48V input voltage for selection, support N+1 and 1+1 redundancy systems,built-in two rails DC input contacts and single output. The MOSFET technology implemented can reduce heat loss and reduce the voltage difference between the input and output voltages, built-in 2 channels DC OK relay contacts for monitoring output status, ultra-wide operating temperature of -40 to +80C and narrow width (32mm).

SPECIFICATION



MODEL

DRDN20-

=12V, 24V, 48V







INPUT

NUMBER OF INPUT

2 Channels

DC NORMAL VOLTAGE

12Vdc

24Vdc

48Vdc

DC VOLTAGE RANGE

9~14Vdc

19~29Vdc

36~60Vdc

RATED CURRENT

0~20A per input        Continuous

VOLTAGE DROP (Vin-Vout) (max.)

0.25V

PEAK CURRENT

0~30A per input        5Sec.

EFFICIENCY (Typ.)

98%

INPUT REVERSE CURRENT (max.)

1mA

INPUT REVERSE VOLTAGE (max.)

40Vdc

40Vdc

65Vdc



OUTPUT

RATED CURRENT

0~20A, Continuous

PEAK CURRENT (max.)

30A, 5Sec.

CAPACITANCE(Typ.)

320uF

STANDBY POWER LOSSES(Typ.)

1.5W

PROTECTION

OVERLOAD

<30A,5Sec. No damage

SHORT CIRCUIT

<30A,5Sec. No damage





FUNCTION

REDUNDANCY

For 1+1 redundancy ,and support N+1 redundancy

BOTH INPUTS VOLTAGE ALARM

<8.5V or >14.7V (±5%)

<18V or >31V (±5%)

<34.2V or >63V (±5%)

RELAY

30Vdc/1A resistive load

LED STATUS DISPLAY

Green LED OK







ENVIRONMENT

COOLING

Free air convection

WORKING TEMP.                       Note.2

-40 ~ +80℃ (Refer to "Derating Curve")

WORKING HUMIDITY

5 ~ 95% RH non-condensing

STORAGE TEMP.

-40 ~ +85℃

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 60℃)

VIBRATION

Component:10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC61373

OPERATING ALTITUDE             Note.3

5000 meters/OVC II













SAFETY & EMC

(Note.4)

SAFETY STANDARDS

IEC62368-1, UL62368-1, EAC TP TC 004 approved

WITHSTAND VOLTAGE

IP/OP - Chassis : 0.5KVac ; IP/OP- Relay : 0.5KVac ; Relay - Chassis : 0.5KVac

ISOLATION RESISTANCE

IP/OP - Chassis, IP/OP- Relay, Relay - Chassis:>100M Ohms / 500Vdc / 25℃/ 70% RH





EMC EMISSION

Parameter

Standard

Test Level / Note

Conducted

BS EN/EN55032(CISPR32)

Class B

Radiated

BS EN/EN55032(CISPR32)

Class B

Voltage Flicker

-----

-----

Harmonic Current

-----

-----











EMC IMMUNITY

BS EN/EN55035, BS EN/EN61000-6-2(BS EN/EN50082-2), BS EN/EN55024

Parameter

Standard

Test Level / Note

ESD

BS EN/EN61000-4-2

Level 4, 15KV air ; Level 3, 8KV contact; criteria A

Radiated

BS EN/EN61000-4-3

Level 3, 10V/m ; criteria A

EFT / Burst

BS EN/EN61000-4-4

Level 3, 2KV ; criteria A

Surge

BS EN/EN61000-4-5

Level 3, 1KV/Line-Line ;Level 3, 2KV/Line-Line-Chassis ;criteria A

Conducted

BS EN/EN61000-4-6

Level 3, 10V ; criteria A

Magnetic Field

BS EN/EN61000-4-8

Level 4, 30A/m ; criteria A



OTHERS

MTBF

1836.0K hrs min.      Telcordia SR-332 (Bellcore) ;   482.1K hrs min.      MIL-HDBK-217F (25℃)

DIMENSION

32*125.2*102mm (W*H*D)

PACKING

0.35Kg;28psc/10.8Kg/1.24CUFT







NOTE

1.  All parameters NOT specially mentioned are measured at normal input (12V/24V/48V), rated load and 25℃ of ambient temperature.

2.  Derating may be needed over high ambient temperature. Please check the derating curve for more details.

3.  The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

4.  The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.

(as available on http://www.meanwell.com)
