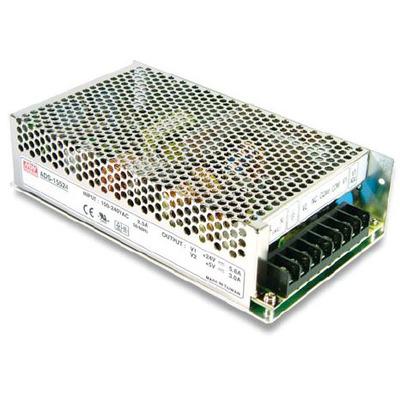

MEANWELL ADS Series Single Output Switch Mode Power Supply
MEANWELL ADS Series Single Output Switch Mode Power Supply
SKU SKU:ADS-15512
Couldn't load pickup availability
Share
Features:
- Universal AC input / Full range
- Protections: Short circuit / Over load / Over voltage
- Cooling by free air convection
- 100 % full load burn-in test
- Fixed switching frequency at 45KHz
Specification:
|
MODEL |
ADS-15512 |
ADS-15524 |
ADS-15548 |
||||
|
OUTPUT |
OUTPUT NUMBER |
CH1 |
CH2 |
CH1 |
CH2 |
CH1 |
CH2 |
|
DC VOLTAGE |
12V |
5V |
24V |
5V |
48V |
5V |
|
|
RATED CURRENT |
11.5A |
3A |
5.8A |
3A |
2.9A |
3A |
|
|
CURRENT RANGE |
0 ~ 12.5A |
0 ~ 3A |
0 ~ 6.5A |
0 ~ 3A |
0 ~ 3.2A |
0 ~ 3A |
|
|
RATED POWER |
153W |
154.2W |
154.2W |
||||
|
RIPPLE & NOISE (max.) Note.2 |
150mVp-p |
100mVp-p |
150mVp-p |
100mVp-p |
240mVp-p |
100mVp-p |
|
|
VOLTAGE ADJ. RANGE |
CH1:10.8 ~ 13.2V |
CH1:21.6 ~ 26.4V |
CH1:43.2 ~ 52.8V |
||||
|
VOLTAGE TOLERANCE Note.3 |
±2.0% |
±3.0% |
±1.0% |
±3.0% |
±1.0% |
±5.0% |
|
|
LINE REGULATION |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
LOAD REGULATION |
±1.0% |
±2.0% |
±0.5% |
±2.0% |
±1.0% |
±1.0% |
|
|
SETUP, RISE TIME |
1000ms, 90ms/230VAC 2000ms, 90ms/115VAC at full load |
||||||
|
HOLD UP TIME (Typ.) |
24ms/230VAC 20ms/115VAC at full load |
||||||
|
INPUT |
VOLTAGE RANGE |
88 ~ 264VAC 124 ~ 370VDC |
|||||
|
FREQUENCY RANGE |
47 ~ 63Hz |
||||||
|
POWER FACTOR (Typ.) |
PF>0.92 |
||||||
|
EFFICIENCY (Typ.) |
77% |
82% |
82% |
||||
|
AC CURRENT (Typ.) |
2.5A/115VAC 1.5A/230VAC |
||||||
|
INRUSH CURRENT (Typ.) |
COLD START 23A/115VAC 45A/230VAC |
||||||
|
LEAKAGE CURRENT |
<1mA / 240VAC |
||||||
|
PROTECTION |
OVERLOAD |
105 ~ 135% rated output power |
|||||
|
Protection type : Constant current limiting, recovers automatically after fault condition is reoved |
|||||||
|
OVER VOLTAGE |
CH1:13.8 ~ 16.2V |
CH1:27.6 ~ 32.4V |
CH1:55.2 ~ 64.8V |
||||
|
Protection type : Shut down o/p voltage, re-power on to recover |
|||||||
|
ENVIRONMENT |
WORKING TEMP. |
-10 ~ +60℃ (Refer to "Derating Curve") |
|||||
|
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
||||||
|
STORAGE TEMP., HUMIDITY |
-20 ~ +85℃, 10 ~ 95% RH |
||||||
|
TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) |
||||||
|
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
||||||
|
SAFETY & EMC (Note 4) |
SAFETY STANDARDS |
UL60950-1, TUV EN60950-1, EAC TP TC 004 approved |
|||||
|
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC |
||||||
|
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
||||||
|
EMC EMISSION |
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020 |
||||||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A, EAC TP TC 020 |
||||||
|
OTHERS |
MTBF |
202.3K hrs min. MIL-HDBK-217F (25℃) |
|||||
|
DIMENSION |
199*110*50mm (L*W*H) |
||||||
|
PACKING |
1Kg; 16pcs/16Kg/0.95CUFT |
||||||
