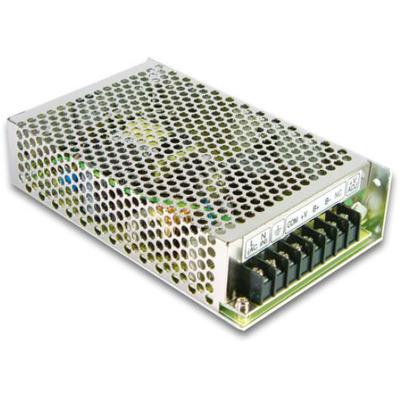

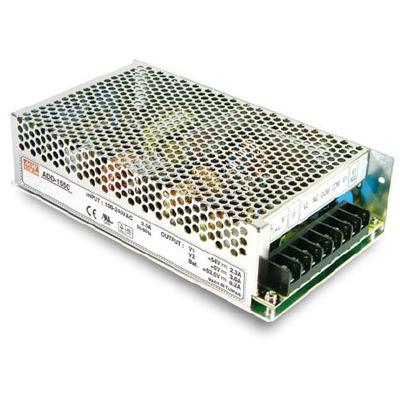

MEANWELL ADD Series Dual Output Switch Mode Power Supply
MEANWELL ADD Series Dual Output Switch Mode Power Supply
SKU SKU:ADD-55A
Couldn't load pickup availability
Share
Features:
- Universal AC input / Full range
- Built in active PFC function
- Protections: Short circuit / Over load / Over voltage
- Battery low / battery polarity protection
- Cooling by free air convection
- 100 % full load burn-in test
- Fixed switching frequency at 45KHz
Specification:
|
MODEL |
ADD-55A |
ADD-55B |
|||||
|
OUTPUT |
OUTPUT NUMBER |
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 |
|
DC VOLTAGE |
13.8V |
5V |
13.4V |
27.6V |
5V |
26.5V |
|
|
RATED CURRENT |
2.5A |
3A |
0.23A |
1.3A |
3A |
0.16A |
|
|
CURRENT RANGE |
0 ~ 3.5A |
0 ~ 4A |
-------- |
0 ~ 2A |
0 ~ 4A |
-------- |
|
|
RATED POWER |
52.58W |
55.12W |
|||||
|
RIPPLE & NOISE (max.) Note.2 |
100mVp-p |
100mVp-p |
-------- |
150mVp-p |
150mVp-p |
-------- |
|
|
VOLTAGE ADJ. RANGE |
CH1: 12 ~ 14.5V |
CH1: 24 ~ 29V |
|||||
|
VOLTAGE TOLERANCE Note.3 |
±1.0% |
±3.0% |
-------- |
±1.0% |
±3.0% |
-------- |
|
|
LINE REGULATION |
±1.0% |
±0.5% |
-------- |
±1.0% |
±0.5% |
-------- |
|
|
LOAD REGULATION |
±1.0% |
±0.5% |
-------- |
±1.0% |
±0.5% |
-------- |
|
|
SETUP, RISE TIME |
800ms, 50ms/230VAC 1600ms, 50ms/115VAC at full load |
||||||
|
HOLD UP TIME (Typ.) |
80ms/230VAC 16ms/115VAC at full load |
||||||
|
INPUT |
VOLTAGE RANGE |
88 ~ 264VAC 124 ~ 370VDC |
|||||
|
FREQUENCY RANGE |
47 ~ 63Hz |
||||||
|
EFFICIENCY (Typ.) |
71% |
74% |
|||||
|
AC CURRENT (Typ.) |
1.6A/115VAC 1A/230VAC |
||||||
|
INRUSH CURRENT (Typ.) |
COLD START 20A/115VAC 40A/230VAC |
||||||
|
LEAKAGE CURRENT |
<1mA / 240VAC |
||||||
|
PROTECTION |
OVERLOAD |
105 ~ 150% rated output power |
|||||
|
Protection type : AC Charging Mode : Hiccup mode, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse |
|||||||
|
OVER VOLTAGE |
CH1:14.49 ~ 18.63V |
CH1:28.98 ~ 37.26V |
|||||
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
|||||||
|
FUNCTION |
DC ALARM SIGNAL(OPTIONAL) |
AC fail CN1 PIN2 |
|||||
|
Battery low under charge voltage 82.5%±2% CN1 PIN1 |
|||||||
|
Normal 0.8V max. Abnormal 5V±0.5V |
|||||||
|
ENVIRONMENT |
WORKING TEMP. |
-10 ~ +60℃ (Refer to "Derating Curve") |
|||||
|
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
||||||
|
STORAGE TEMP., HUMIDITY |
-20 ~ +85℃, 10 ~ 95% RH |
||||||
|
TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) on CH1 output |
||||||
|
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
||||||
|
SAFETY & EMC (Note 4) |
SAFETY STANDARDS |
UL60950-1, TUV EN60950-1, EAC TP TC 004 approved |
|||||
|
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
||||||
|
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
||||||
|
EMC EMISSION |
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020 |
||||||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A, EAC TP TC 020 |
||||||
|
OTHERS |
MTBF |
241.3K hrs min. MIL-HDBK-217F (25℃) |
|||||
|
DIMENSION |
159*97*38mm (L*W*H) |
||||||
|
PACKING |
0.57Kg; 24pcs/13.7Kg/0.75CUFT |
||||||
|
MODEL |
ADD-155A |
ADD-155B |
ADD-155C |
|||||||
|
OUTPUT |
OUTPUT NUMBER |
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 |
|
DC VOLTAGE |
13.8V |
5V |
13.3V |
27.6V |
5V |
27.1V |
54V |
5V |
53.5V |
|
|
RATED CURRENT |
9.5A |
3A |
0.5A |
4.5A |
3A |
0.5A |
2.3A |
3A |
0.2A |
|
|
CURRENT RANGE |
0 ~ 10.5A |
0 ~ 3A |
-------- |
0 ~ 5A |
0 ~ 3A |
-------- |
0 ~ 2.5A |
0 ~ 3A |
-------- |
|
|
RATED POWER |
152.75W |
152.75W |
149.9W |
|||||||
|
RIPPLE & NOISE (max.) Note.2 |
150mVp-p |
100mVp-p |
-------- |
200mVp-p |
100mVp-p |
-------- |
240mVp-p |
100mVp-p |
-------- |
|
|
VOLTAGE ADJ. RANGE |
CH1: 12 ~ 14.5V |
CH1: 24 ~ 29V |
CH1: 48 ~ 58V |
|||||||
|
VOLTAGE TOLERANCE Note.3 |
±2.0% |
±3.0% |
-------- |
±1.0% |
±3.0% |
-------- |
±1.0% |
±5.0% |
-------- |
|
|
LINE REGULATION |
±1.0% |
±0.5% |
-------- |
±1.0% |
±0.5% |
-------- |
±1.0% |
±0.5% |
-------- |
|
|
LOAD REGULATION |
±1.0% |
±2.0% |
-------- |
±1.0% |
±2.0% |
-------- |
±1.0% |
±2.0% |
-------- |
|
|
SETUP, RISE TIME |
1000ms, 90ms/230VAC 2000ms, 90ms/115VAC at full load |
|||||||||
|
HOLD UP TIME (Typ.) |
24ms/230VAC 20ms/115VAC at full load |
|||||||||
|
INPUT |
VOLTAGE RANGE |
88 ~ 264VAC 124 ~ 370VDC |
||||||||
|
FREQUENCY RANGE |
47 ~ 63Hz |
|||||||||
|
POWER FACTOR (Typ.) |
PF>0.92 at full load |
|||||||||
|
EFFICIENCY (Typ.) |
78% |
81% |
81% |
|||||||
|
AC CURRENT (Typ.) |
2.5A/115VAC 1.5A/230VAC |
|||||||||
|
INRUSH CURRENT (Typ.) |
COLD START 23A/115VAC 45A/230VAC |
|||||||||
|
LEAKAGE CURRENT |
<1mA / 240VAC |
|||||||||
|
PROTECTION |
OVERLOAD |
CH1,CH2:105 ~ 135% CH3:0.51 ~ 0.9A rated output power |
||||||||
|
Protection type : AC Charging Mode : Constant current limiting, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse |
||||||||||
|
OVER VOLTAGE |
CH1:15.87 ~ 18.63V |
CH1:31.74 ~ 37.26V |
CH1:62.1 ~ 72.9V |
|||||||
|
Protection type : Shut down o/p voltage, re-power on to recover |
||||||||||
|
BATTERY LOW |
10V±0.8V |
19.5V(+1.5V,-1V ) |
39V±2V |
|||||||
|
ENVIRONMENT |
WORKING TEMP. |
-10 ~ +60℃ (Refer to "Derating Curve") |
||||||||
|
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
|||||||||
|
STORAGE TEMP., HUMIDITY |
-20 ~ +85℃, 10 ~ 95% RH |
|||||||||
|
TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) on +5V output |
|||||||||
|
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
|||||||||
|
SAFETY & EMC (Note 4) |
SAFETY STANDARDS |
UL60950-1, TUV EN60950-1, EAC TP TC 004 approved |
||||||||
|
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
|||||||||
|
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
|||||||||
|
EMC EMISSION |
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020 |
|||||||||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A, EAC TP TC 020 |
|||||||||
|
OTHERS |
MTBF |
164.2K hrs min. MIL-HDBK-217F (25℃) |
||||||||
|
DIMENSION |
199*110*50mm (L*W*H) |
|||||||||
|
PACKING |
1Kg; 16pcs/16Kg/0.95CUFT |
|||||||||
