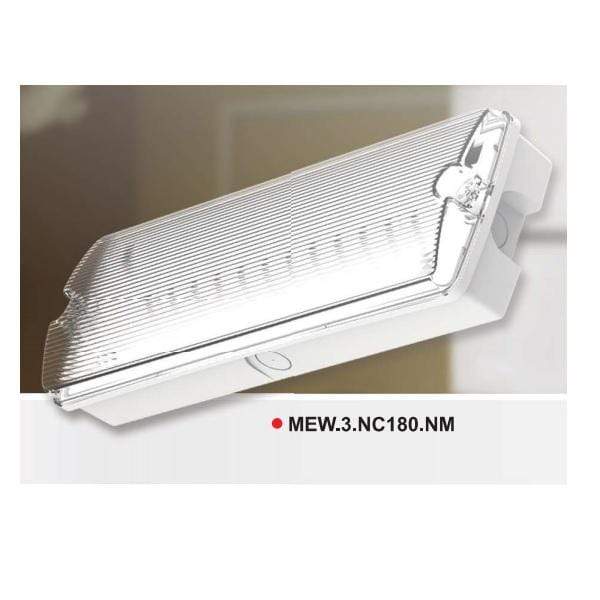

Maxspid ROCKY MEW.3.NC180.NM 3W Surface Mount Emergency Light
Maxspid ROCKY MEW.3.NC180.NM 3W Surface Mount Emergency Light
SKU SKU:MEW.3.NC180.NM
2024-23-MEW.3 1 4085ac19-9e03-4928-a69a-456e7bcb15d6.pdf
Couldn't load pickup availability
Share
ROCKY MEW
Key Features:
> Using Surface Mount Technology LED
> High Durability & Reliability
> Low Heat
> Low Maintenance
> Low Power Consumption
> No “Black Ends”
Technical Specifications:
| WEIGHT | 0.6 kg |
|---|---|
| DIMENSIONS | 355 x 109 x 61 mm |
| MODE OF OPERATION |
Non-Maintained |
| LAMP |
Maxspid 3W SMT LED Lamp |
| RATED DURATION |
3 hrs and others |
| MAINS SUPPLY |
230 Volts |
| MAINS FREQUENCY |
50/60 Hz |
| POWER CONSUMPTION |
< 2W |
| BATTERY |
High temp nickel cadmium |
| CHARGE MONITOR |
Green LED |
| TEST FACILITY |
Tactile Switch |
| SAFETY FEATURE |
Low volt cut-off preventing battery overdischarge |
| DIFFUSER |
Injection moulded fire retardant high impact polycarbonate diffuser and base. Clear reeded diffuser is designed for non-glare and greater light distribution |
| MOUNTING |
Wall or ceiling |
| CABLE ENTRY |
Ø20mm K/O hole |
| COMPLIANCE |
SS 563 : Part 1 & 2, SS IEC 60598-2-22 |
| WARRANTY |
1 Year |
