M4

Maxspid Power Pack MPP 4pin for PLC Recess Downlight

Maxspid Power Pack MPP 4pin for PLC Recess Downlight

SKU SKU:MPPMPLC13-18E NC

Regular price $ 64.61 SGD
Regular price $ 70.00 SGD Sale price $ 64.61 SGD
Sale Sold out
Shipping calculated at checkout.
Model No
Type
Size

Request For Quote

For the datasheet click here

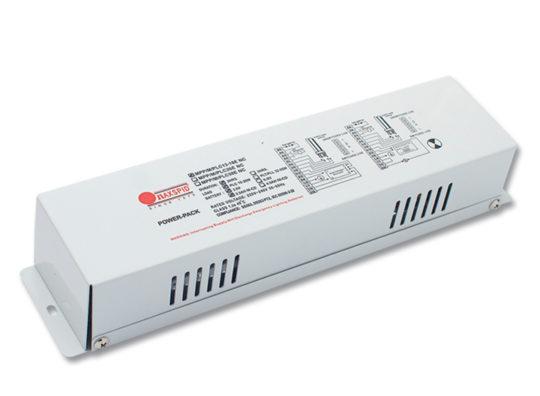

POWER PACK MPP 4pin:

Technical Specifications:

WEIGHT 1.9 kg

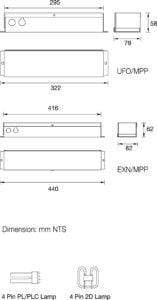

DIMENSIONS 322 x 78 x 58 mm
MODE OF OPERATION

Maintained / combined maintained

LAMP

4-pin PL/PLC and 2D lamps

RATED DURATION

2 hr and others

MAINS SUPPLY

230 Volts

MAINS FREQUENCY

50/60 Hz

POWER CONSUMPTION

> 2VA

BATTERY

High temp nickel cadmium

CHARGE MONITOR

Green LED Ø5mm

TEST FACILITY

Push-off test switch

SAFETY FEATURE

Low volt cut-off preventing battery overdischarge

FITTING CONSTRUCTION

Electro galvanised steel with epoxy powder coating

CABLE ENTRY

Ø20mm K/O hole

COMPLIANCE

IEC 61347-2-7, IEC 61347-1

WARRANTY

1 Year



Ordering Guide:

Model Lamp For use with Remote box size
MPP/M/PLC13-18E NC PLC10-26W 4-pin Conventional and Electronic ballast UFO/MPP
MPP/M/PLC58E NC PLT32W-42W 4-pin EXN/MPP



Note: Can be incorporated into combined maintained, combined non-maintained and non-maintained mode of operation
