M4

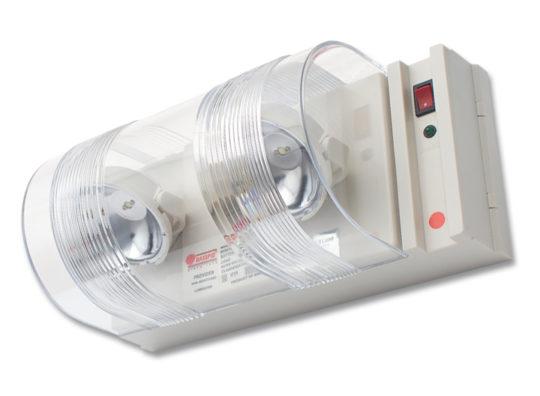

Maxspid 2x3LED PROVIDER PP203LNC Emergency Light

Maxspid 2x3LED PROVIDER PP203LNC Emergency Light

SKU SKU:PP203LNC

Regular price $158.00 USD
Regular price $169.00 USD Sale price $158.00 USD
Sale Sold out
Shipping calculated at checkout.

Request For Quote

For the datasheet click here.

PROVIDER  PP203L:

Key Features:
> High Brightness Output
> High Lumen/watt Efficiency
> Low Power Consumption
> Low Maintenance
> Long Lifespan

Technical Specifications:

WEIGHT 1.2 kg

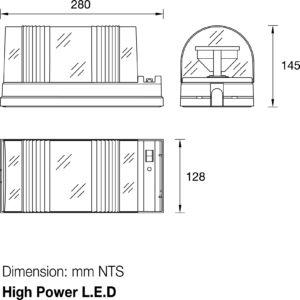

DIMENSIONS 280 x 128 x 145 mm
MODE OF OPERATION

Non-Maintained

LAMP

2 x 3W High Power LED

RATED DURATION

2 hr and others

MAINS SUPPLY

230 Volts

MAINS FREQUENCY

50/60 Hz

POWER CONSUMPTION

> 2VA

BATTERY

High temp nickel cadmium

CHARGE MONITOR

Green LED Ø5mm

TEST FACILITY

Rocker switch

SAFETY FEATURE

Low volt cut-off preventing battery over discharge

DIFFUSER

High impact thermoplastic enclosure in a matt white finish. Transparent half cylinder Polycarbonate lamp shield with fresnel pattern and fully adjustable self-locking lamp heads.

MOUNTING

Wall or ceiling. The snap-fit design will facilitate easy installations. Easily removable mounting and knockout holes are provided (fitting can be positioned vertically or horizontally)

CABLE ENTRY

Ø20mm K/O hole

COMPLIANCE

SS 563 : Part 1 & 2, SS IEC 60598-2-22

WARRANTY

1 Year



Ordering Guide:

Model Lamp Battery type
PP203L NC 2 x 3W LED Nickel cadmium
