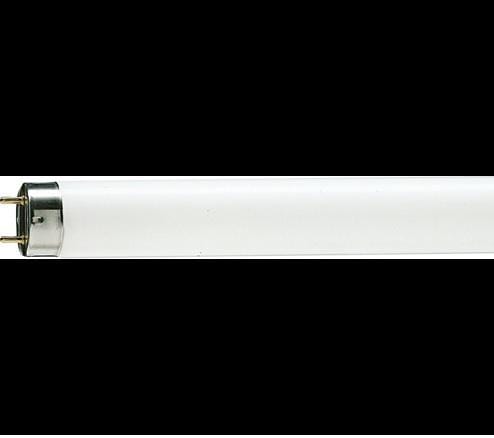

Philips MASTER TL-D 90 Graphica 36W/965 T8 Tube x10PCs

Philips MASTER TL-D 90 Graphica 36W/965 T8 Tube x10PCs

SKU 928044796581

$ 265.00 SGD
$ 287.00 SGD $ 265.00 SGD
Sale Sold out
Shipping calculated at checkout.

Request For Quote

Datasheet

General Information

  • Flux measurement reference
    Sphere
  • Cap-Base
    G13 [Medium Bi-Pin Fluorescent]

Light Technical

  • Color Code
    965 [CCT of 6500K]
  • Luminous Flux
    2,100 lumen
  • Color Designation
    Cool Daylight
  • Chromaticity Coordinate X (Nom)
    0.313
  • Chromaticity Coordinate Y (Nom)
    0.337
  • Correlated Color Temperature (Nom)
    6500 K
  • Luminous Efficacy (rated) (Nom)
    57.1 lm/W
  • Color rendering index (CRI)
    97

Operating and Electrical

  • Power Consumption
    36.8 W
  • Lamp Current (Nom)
    0.440 A

Controls and Dimming

  • Dimmable
    Yes

Mechanical and Housing

  • Bulb Shape
    T8 [26 mm (T8)]

Approval and Application

  • Energy Efficiency Class
    G
  • Mercury (Hg) Content (Nom)
    1.7 mg
  • Energy Consumption kWh/1000 h
    37 kWh
  • EPREL Registration Number
    423528

Product Data

  • Full product code
    871150088836525
  • Order product name
    MASTER TL-D 90 Graphica 36W/965 SLV/10
  • Order code
    928044796581
  • Numerator - Quantity Per Pack
    1
  • Numerator - Packs per outer box
    10
  • Material number (12NC)
    928044796581
  • Full product name
    MASTER TL-D 90 Graphica 36W/965 SLV/10
  • EAN/UPC - Case
    8711500888662

Installation diagrams

  • 36 W Medium Bi-Pin Fluorescent 26 mm (T8)
    36 W Medium Bi-Pin Fluorescent 26 mm (T8)
  • G13
    G13
