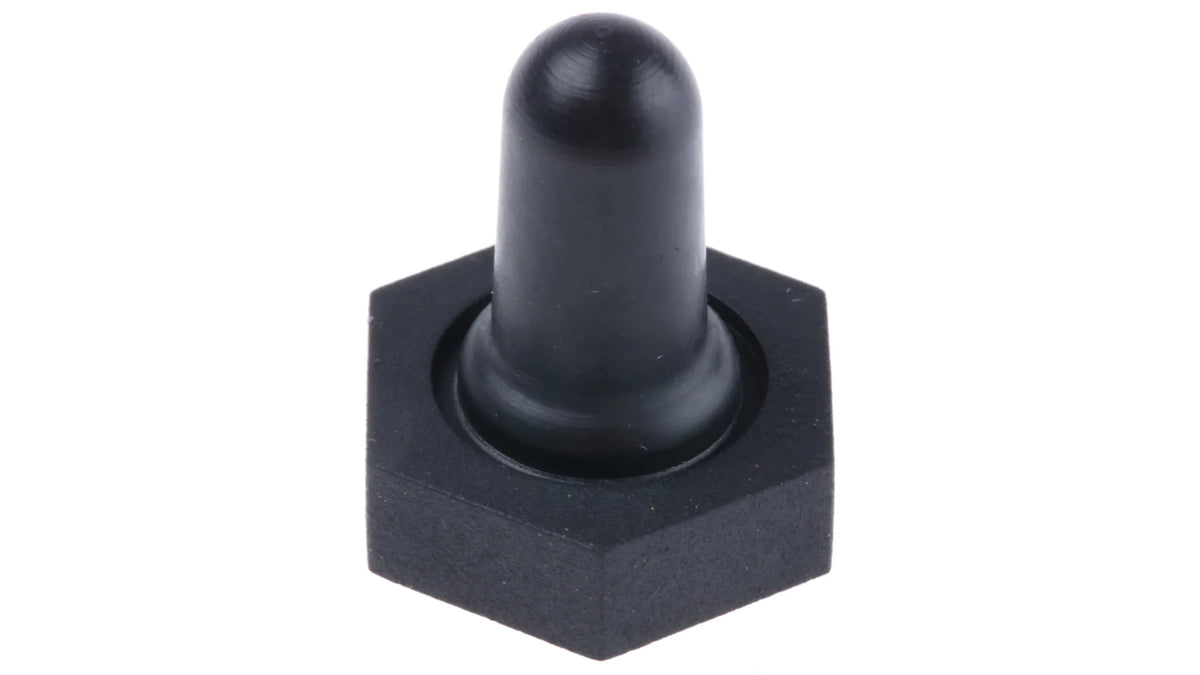

Marquardt Toggle Switch Cap for 1820 Series

Marquardt 1820 Series Toggle Switches Marquardt 1820 series single and double pole toggle switches. The 1820 toggle switches are suitable for use in Class II appliances and are available in a choice of SPST, SPDT, DPST or DPDT switching formats including SPDT center off changeover with latching action contacts (see stock number 741-1003). A black Neoprene® lever cover which simply screws onto the toggle switch M12x0.75mm bush is available to protect the actuator from dust and water ingression. Long mechanical and electrical life Contact distance ≥3mm (apart from stock number 741-1003 which has a contact distance <3mm) Contact resistance 100MΩ Electrical connection via Solder tag or 4.8mm Faston/Quick Connect style terminals UL 94 V-2 flammability rated NoteSee stock number 103-9475 for Neoprene® protective cover. Neoprene is a registered trademark of DuPont.ApprovalsUL; CSA; ENEC
