Technical data sheets
White Antimicrobial One-Way Module 1
White Two-Way Module 1
Aluminium One-Way Module 2
White Antimicrobial One-Way Modules 2
White Antimicrobial Two-Way Module 2
White Two-Way Module 2
*Check stock before ordering. Lead time 5 working days.*
Product Details
Pushbuttons 6 A - 250 V∼
Automatic terminals, no tool required

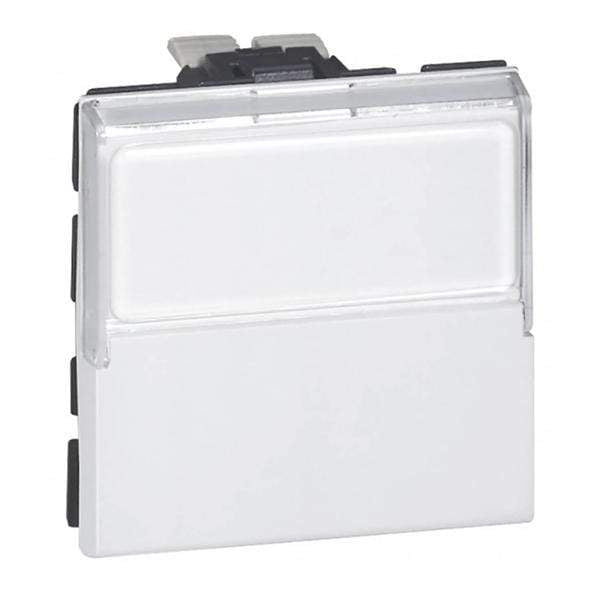

Two-way pushbutton with label-holder
White antimicrobial - 2 modules
Contains a silver compound to prevent the growth of bacteria on the surface of the plate

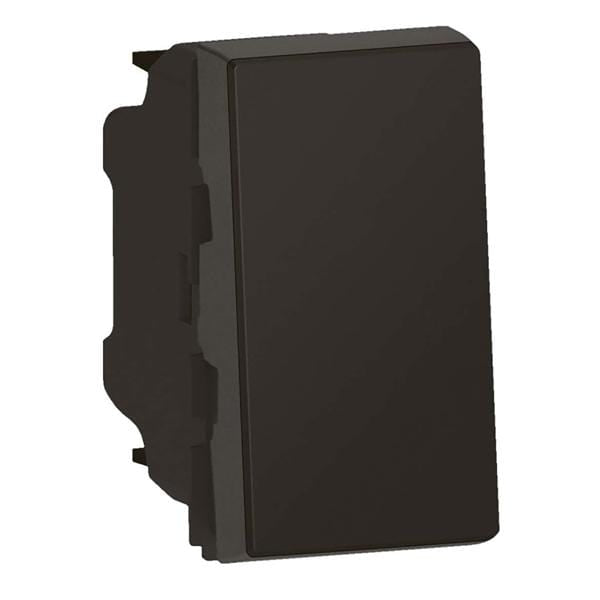

Mosaic Easy-Led 6A 250V push button or reversing push button ∼ 1 module - matt black
Mosaic Easy-Led push-buttons or reversing push-buttons 6 A - 250 V ∼
Allows, depending on the wiring, to become a reversing pusher
1 mechanism makes it possible to make a function with indicator or standard

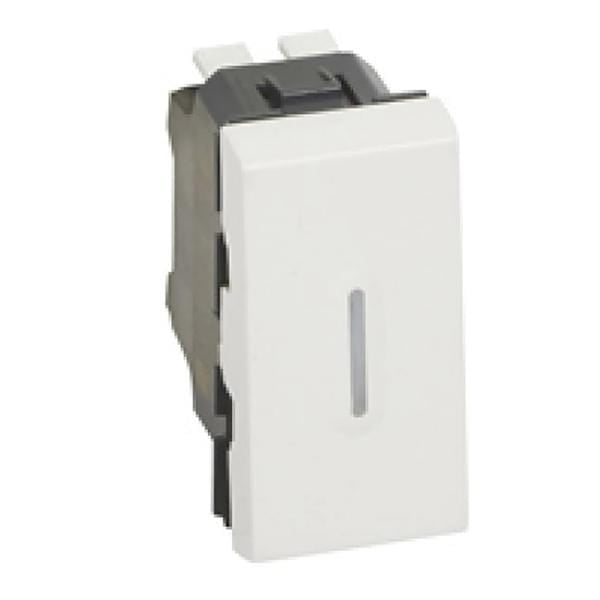

Becomes luminous with plug-in indicator ref. 0 676 86L in 230 V or ref. 0 676 87L in 12, 24 and 48 V
1 module
Matte Black
The Legrand pushbutton or reversing pushbutton, allows depending on the wiring to become a reversing push button. A mechanism allows for an indicator or standard function. It can be mounted recessed or surface mounted and is to be fitted with finishing plates. Its 1-module push button
mechanism allows for an indicator light function or standard. Turns on light with plug-in indicator ref. 0 676 86L in 230 V or ref. 0 676 87L at 12, 24, 48 V.
Impact tests: IK 04
Penetration of solid / liquid bodies: IP 31 D
Mechanism housing: PC
Specifications
Black - One-Way Module 1
| Attribute |
Value |
| Switch Type |
Push Button |
| Number of Gangs |
1 |
| Range |
Mosaic |
| Number of Poles |
1 |
| Number of Ways |
1 |
| Current Rating |
6 A |
| IP Rating |
IP31D |
| Colour |
Black |
| Material |
ABS |
| Series |
Mosaic |
| Voltage Rating |
250 V |
| Illumination |
Non-Illuminated |
| Height |
45mm |
| Faceplate Depth |
12.5 mm |
| Termination Type |
Sprung Terminal |
| Minimum Box Depth |
36.5mm |
| Fixing Standard |
45 mm |

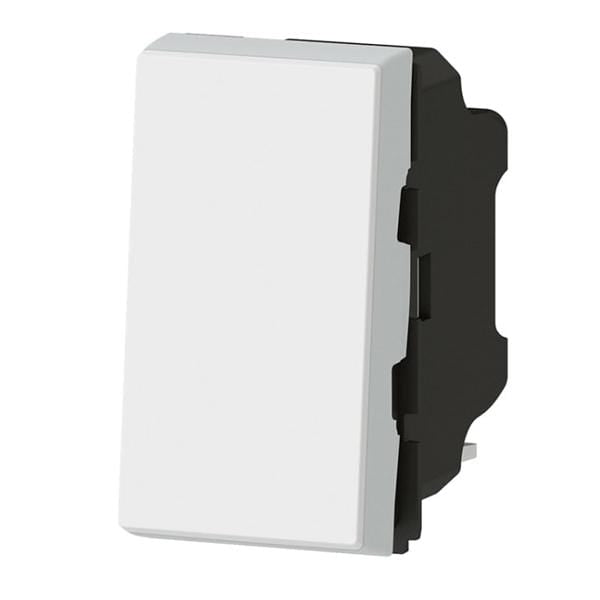

White - Two-Way Module 1
| Attribute |
Value |
| Range |
Mosaic |
| Number of Ways |
2 |
| Current Rating |
6 A |
| Colour |
White |
| Voltage Rating |
250 V |
| Illumination |
Yes |
| Number of Modules |
1 |

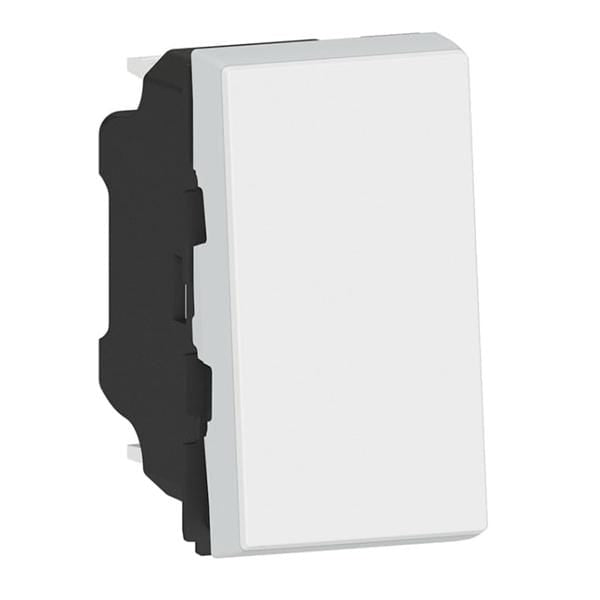

White - Antimicrobial One-Way Module 1
| Attribute |
Value |
| Range |
Mosaic |
| Current Rating |
6 A |
| Colour |
White |
| Voltage Rating |
250 V |
| Number of Modules |
1 |

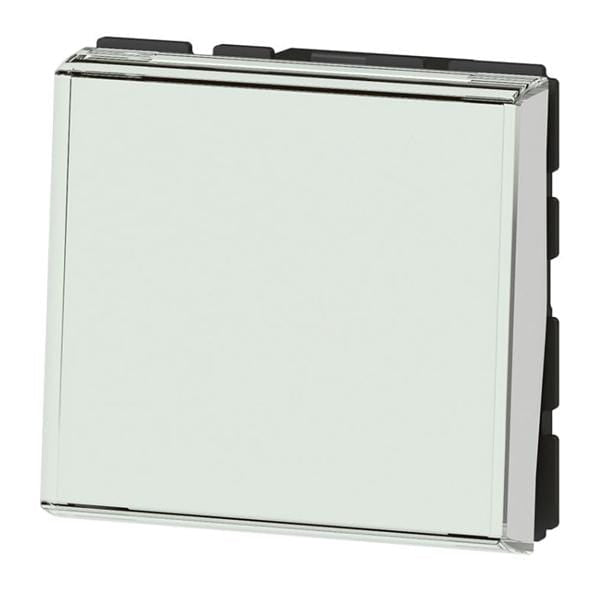

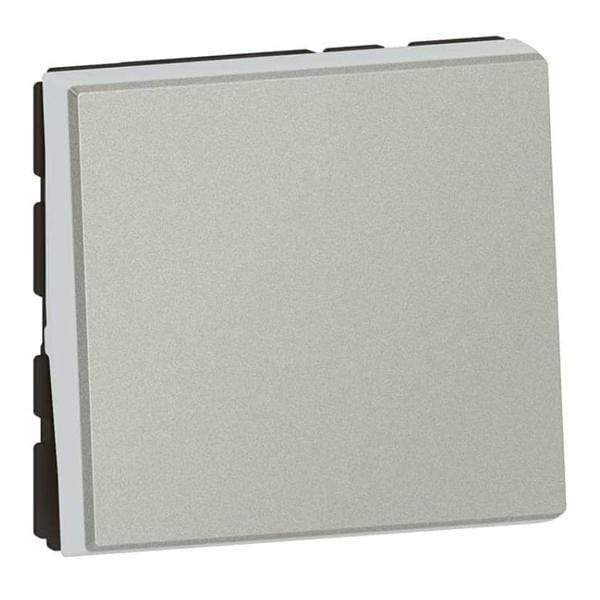

Aluminium - One-Way Module 2
| Attribute |
Value |
| Switch Type |
Push Button |
| Range |
Mosaic |
| Current Rating |
6 A |
| Voltage Rating |
250 V |
| Number of Modules |
2 |

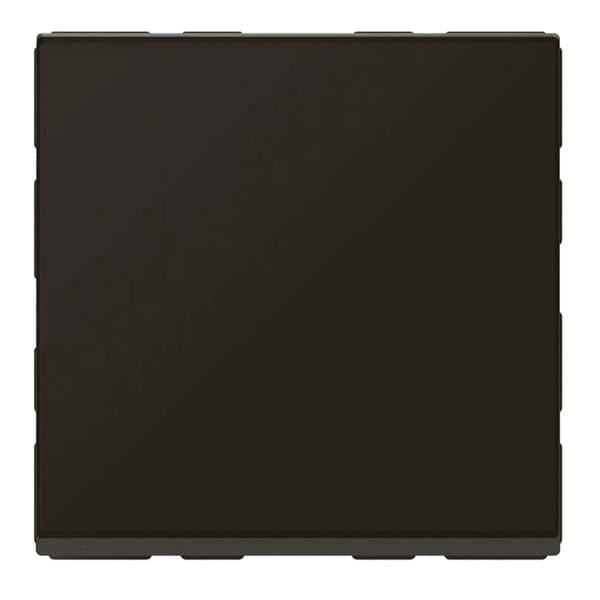

Black - Two-Way Module 2
| Attribute |
Value |
| Switch Type |
Push Button |
| Number of Gangs |
2 |
| Range |
Mosaic |
| Number of Poles |
2 |
| Number of Ways |
2 |
| Current Rating |
6 A |
| IP Rating |
IP31D |
| Colour |
Black |
| Material |
ABS |
| Series |
Mosaic |
| Voltage Rating |
250 V |
| Illumination |
Non-Illuminated |
| Minimum Box Depth |
36.5mm |
| Fixing Standard |
45 mm |
| Faceplate Depth |
12.5 mm |
| Height |
45mm |
| Termination Type |
Sprung Terminal |

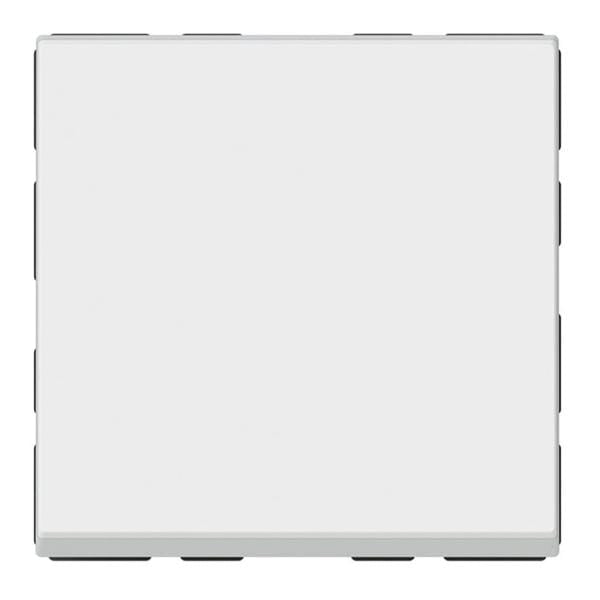

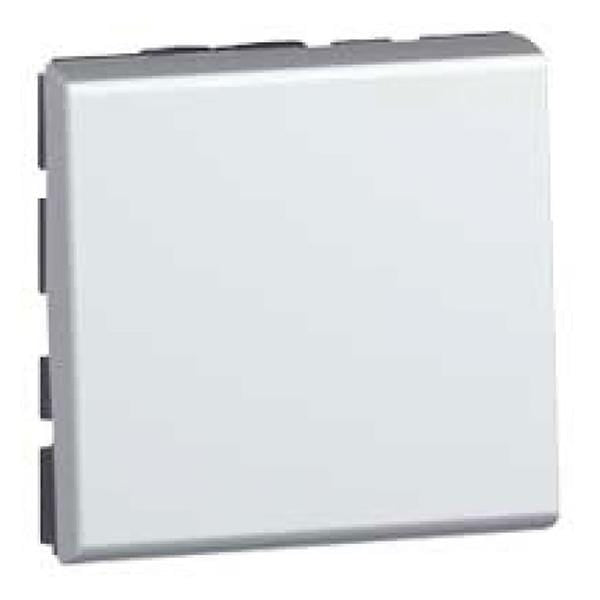

White - Antimicrobial One-Way Modules 2
| Attribute |
Value |
| Range |
Mosaic |
| Current Rating |
6 A |
| Colour |
White |
| Voltage Rating |
250 V |
| Number of Modules |
2 |

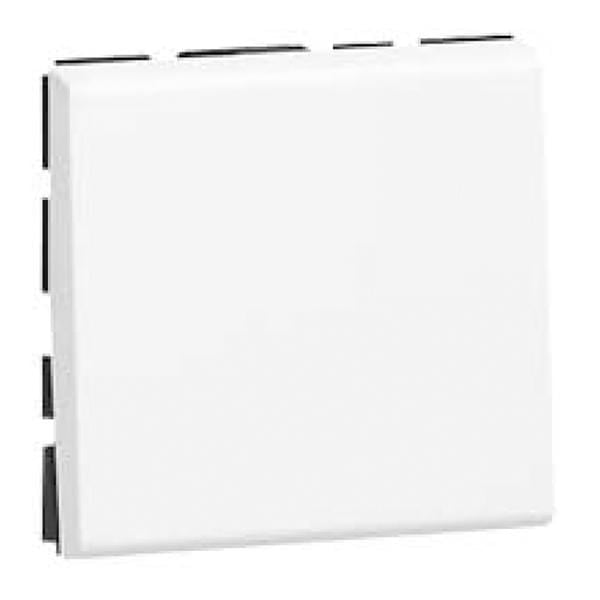

White - Antimicrobial Two-Way Module 2
| Attribute |
Value |
| Range |
Mosaic |
| Current Rating |
6 A |
| Colour |
White |
| Voltage Rating |
250 V |
| Number of Modules |
2 |

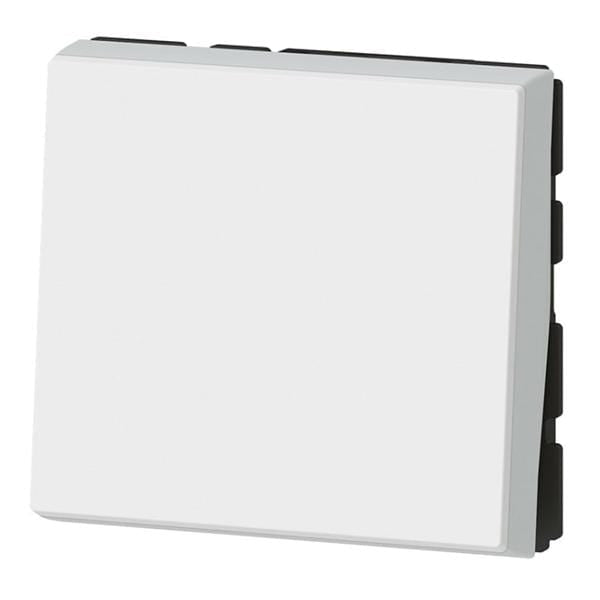

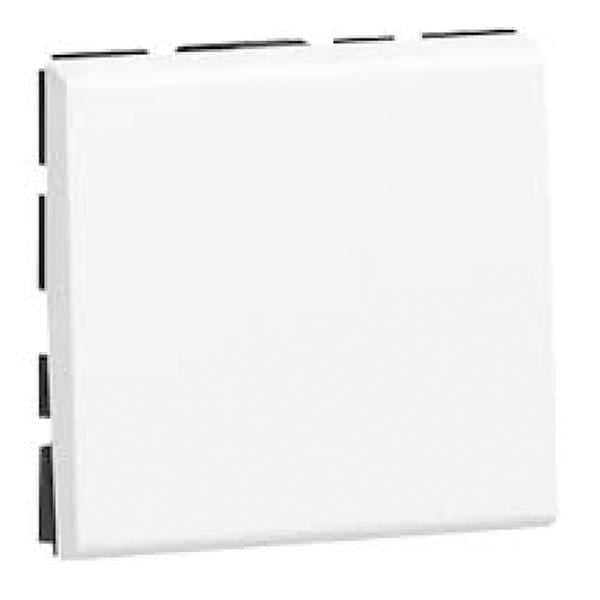

White - Two-Way Module 2
| Attribute |
Value |
| Range |
Mosaic |
| Number of Ways |
2 |
| Current Rating |
6 A |
| Colour |
White |
| Voltage Rating |
250 V |
| Number of Modules |
2 |
