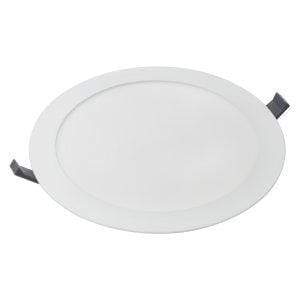

LEDVANCE Led Eco Slim Panel Downlight

LEDVANCE Led Eco Slim Panel Downlight

SKU SKU:4058075107144

Regular price $11.00 USD
Regular price $9.00 USD Sale price $11.00 USD
Sale Sold out
Shipping calculated at checkout.
Power
Color Temperature
Shape

Request For Quote

Technical Details

Family Datasheet

For 18W Round, datasheet clicks here.

For 15W Square, datasheet clicks here.

*Check stock before ordering for 9W lead time 2 Weeks*

Product benefits

  • Die-cast aluminum housing for improved heat dissipation
  • Slim and sleek design
  • External driver design allows for flexible change of control gear
  • Low flicker light thanks to special electronic control gear

Electrical data

Nominal wattage 18.00 W(8inch)/15W(6inch)
Nominal voltage 220…240 V
Power factor λ > 0.50
Mains frequency 50/60 Hz

Photometrical data

Color temperature 3000 K / 6500 K
Luminous flux 1296 lm / 1440 lm /1080 lm
Luminous efficacy 72 lm/W
Standard deviation of color matching <6 sdcm
Light color (designation) Warm White
Color rendering index Ra 80

Light technical data

Beam angle 120 °

Dimensions & weight

Diameter 225.0 mm /170mm
Height 23.0 mm
Product weight 330.00 g
Mounting diameter 210.0 mm

Colors & materials

Body material Aluminum
Product color White
Housing color White

Temperatures & operating conditions

Ambient temperature range -10…+50 °C

Lifespan

Number of switching cycles 25000

Additional product data

Mounting type Recessed
Mounting location Ceiling

Capabilities

Dimmable No
Type of connection Cable/Connector
LED module replaceable Not replaceable

Certificates & standards

Protection class II
Type of protection IP20

Logistical data

Temperature range at storage -20…+70 °C
Dimensions&wt
Dimensions in h x w x l(1pc) 230mm x 47mm x 230mm wt 0.5 kg
Dimensions in h x w x l(20PCs) 479mm x 241mm x 482mm wt 9.31 kg
