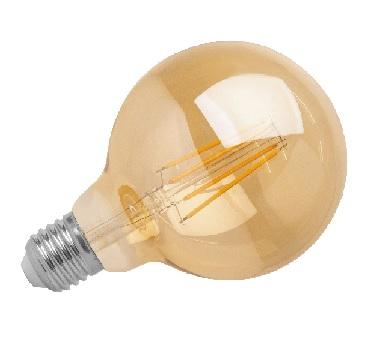

Megaman LG6801.9GD-E27-2000K LED Filament Globe G95 1.9W, Decoration Lights for Home

Neonlite

Engineering Specifications of Energy Saving LED lamp

Edition:

1/Aug/2019

Part No.

Model No.

Rating

Cap

Color Temp.

Life

Remark1

Remark2

TBA

LG6801.9GD

230V 1.9W

E27

2000

15,000

1

General Data

1.1

Rated Voltage [V]

220-240

1.2

Surge Voltage [V]

500

1.3

Frequency [Hz]

50

1.4

Lamp Wattage [W]

1.9

1.5

Lamp Current [mA]

19

1.6

Power Factor

N/A

1.7

Dimmable[N/Y]

N

1.8

Outdoor Use[N/Y]

N

1.9

DC 230V Input[N/Y]

N

1.10

Operating Temp [℃]

-30 to +45

2

Light Data [Initial]

2.1

Lux distribution [lux]

N/A

2.2

Max.luminous Intensity[cd]

N/A

2.3

Beam Angle[°]

N/A

2.4

Total lumen[lm]

200

2.5

90° Useful Lumen[lm]

N/A

2.6

120° Useful Lumen[lm]

N/A

2.7

Color Temperature [K]

2000

2.8

SDCM

≤6

2.9

Color Rendering Index

80

2.10

Energy class

A++

2.11

Weighted energy consumption

2

2.12

Equivalence Wattage(W)

21

2.13

Lamp Efficacy

105

2.14

LLMF

0.7

2.15

Warm Up Time 60%[sec]

Instant full light

2.16

Starting Time[sec]

<0.5

2.17

Warning for lamp >90 deg

N/A

2.18

Inrush current Ipeak(A)

TBA

2.19

Inrush current Twidth(uS)

TBA

2.20

Percentage Flicker(%)

<3

2.21

EEI

0.09

3

Life Time [at 230V, lot size min. 20 units]

3.1

Life Time at 230V, 25℃ [h]

15,000

3.2

Switching cycle up to 50% failure (30s on, 30s off) [cycles]

>100,000

4

Geometrical Data
