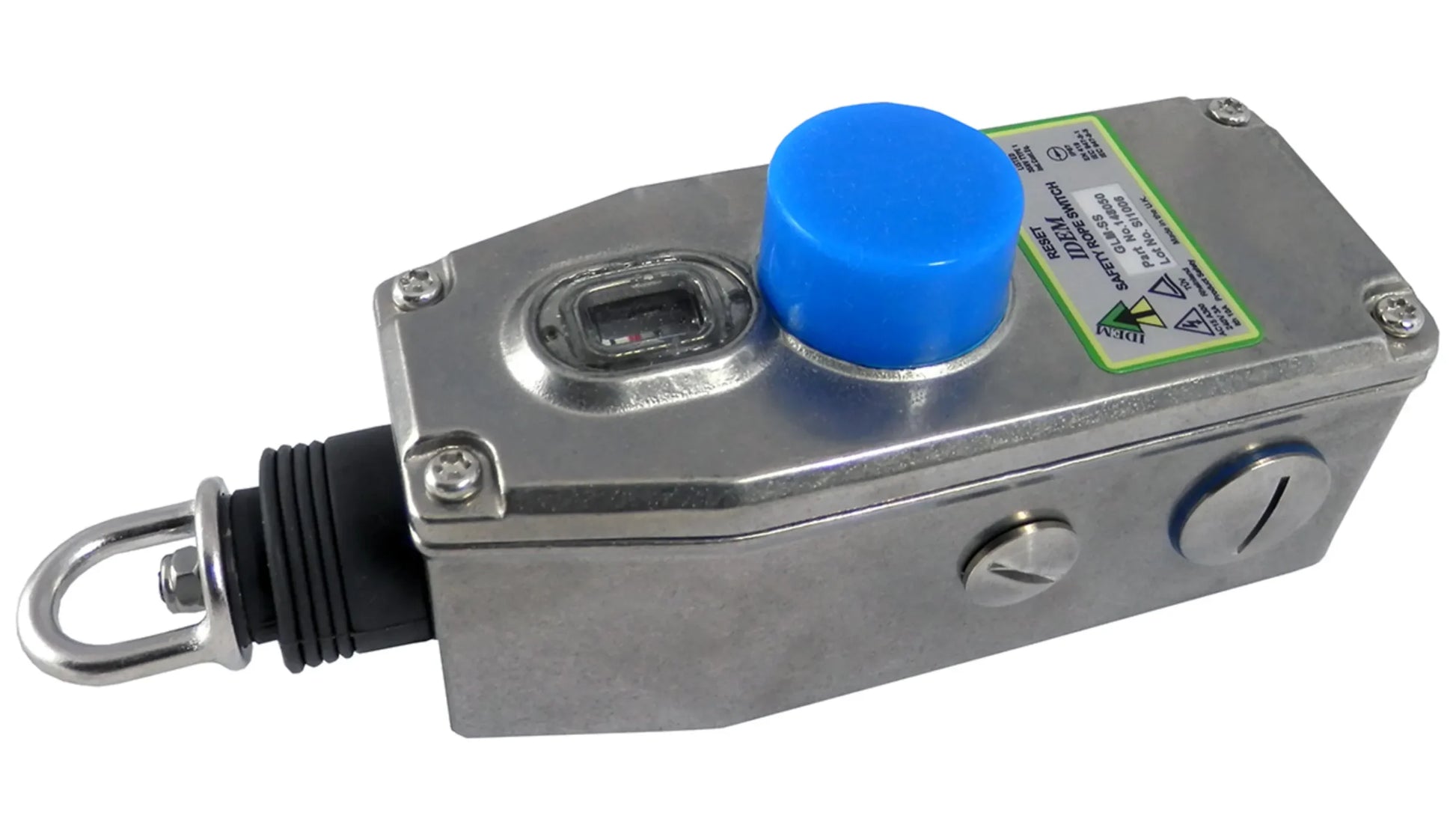

IDEM GLM-SS Rope Pull Switch, 50m

IDEM Guardian Line GLM-SS Mini Safety Rope Pull Switches The Guardian Line GLM-SS from IDEM is a compact and robust mini safety rope pull switch. It is designed to protect a 30 m conveyor using just a single switch or up to 50 m using two switches. It is available in a choice of 3 or 4 pole contacts to ensure flexibility with all modern control applications. The GLM-SS has rugged internal sealing bellows and a stainless steel housing which enable it to undergo high-pressure hosing at high temperature. With a dual channel safety monitoring relay, it can be used as an E-stop and monitored to Category 4 to EN 954-1 or PLe ISO 13849-1. Features and Benefits Switch mechanism latches the instant the safety contacts open, ISO13850 standard Up to 30 m can be covered using only a single switch Up to 50 m can be covered using two switches Positive break contacts to IEC60947-5-1 Stainless steel 316 housing IP69K protection Rugged integral sealing bellows mean they can be high pressure hosed All internal screws are stainless steel Easy to wire with 3 x M20 conduit entries Applications The GLM-SS Mini Safety Rope Pull Switch is ideal for the food processing, pharmaceutical, packaging and chemical industries. NoteStock nos. 123-7515, 123-7517 & 123-7518 have an E-stop. Stock no. 123-7519 has an LED. Stock no. 123-7520 has an E-stop and LED.StandardsIEC 60947-5-1, IEC 60947-5-5, EN 954-1, EN 62061, UL 508, ISO 13850, ISO 13849-1.ApprovalsCE, cULus, TUV.
