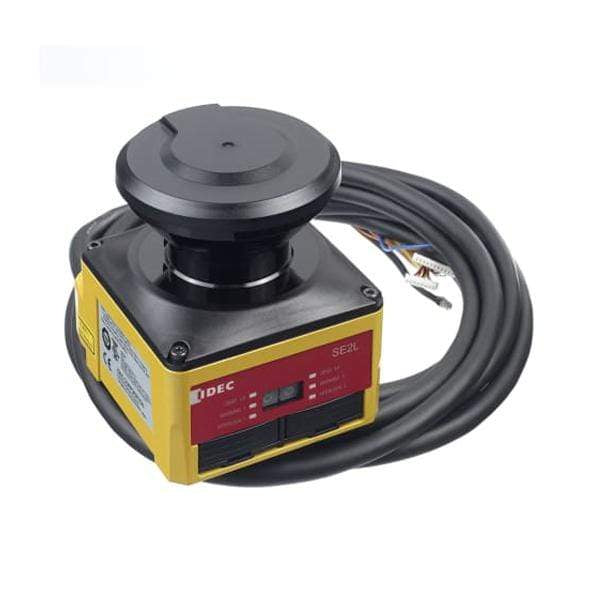

Idec SE2L-H05LP 50W safety laser scanner

Idec SE2L-H05LP 50W safety laser scanner

SKU SKU:1824230

Regular price $ 4,396.00 SGD
Regular price $ 4,396.00 SGD Sale price $ 4,396.00 SGD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Request For Quote

Technical data sheets

Datasheet

 *Check stock before ordering. Lead time 4 working days*

Product Details

IDEC SE2L safety laser scanner is the smallest in the world but out performing many competitions. Features include 270 degree sensing angle, 5m safety protection zone, 20m warning zone, and customizable protection patterns.Configurable using Master and Slave configuration. Up to four SE2L can be connected together which is ideal for detection of four sides on AGVs.With dual protection mode, SE2L can be programmed to safeguard two different zones for two robots at once. Reduce the number of laser scanners and light curtains by half Protection zone1 half.

Protection zone (safety): 5m
Warning zone (non-safety): 20m
270 degree sensing angle
Master and slave function
Maximum 32 patterns
Customizable protection patterns
EDM functions
MicroSD slot

Specifications

Attribute Value
Voltage Rating 24 V dc
Length 80 mm
Width 80 mm
Depth 95 mm
Dimensions 80 x 80 x 95 mm
Wattage 50 W
Model SE2L-H05LP
Series SE2L
