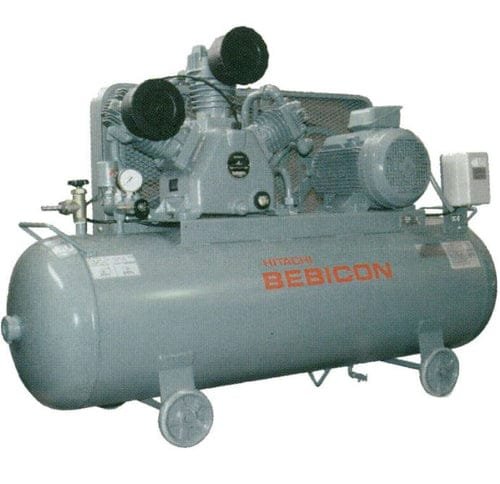

Hitachi 9.5V5A Horizontal Air Compressor | 3HP–15HP | 90L–250L
Hitachi 9.5V5A Horizontal Air Compressor | 3HP–15HP | 90L–250L
SKU:2.2P-9.5V5A
Couldn't load pickup availability
Share
Hitachi 9.5 Bar Horizontal Air Compressor | 3HP–15HP | 90L–250L
The Hitachi 9.5 Bar Horizontal Air Compressor Series is designed to provide reliable, efficient, and consistent compressed air for professional workshops, factories, automotive service facilities, manufacturing environments, and other demanding industrial applications. Available in 3HP, 5HP, 7.5HP, 10HP, and 15HP models, this series offers different air tank capacities and air delivery levels to meet a wide range of compressed-air requirements.
Powered by robust three-phase motors and operating on a 415V power supply, these Hitachi compressors are engineered for dependable performance in industrial environments. With a maximum working pressure of 0.93 MPa (9.3 Bar), they provide stable compressed air for pneumatic equipment and various industrial applications.
The horizontal tank configuration provides a stable installation and convenient access for operation and maintenance. Depending on the selected model, the compressors deliver air capacities from 265 L/min to 1,200 L/min, making the series suitable for applications ranging from general workshop use to heavy-duty industrial air requirements.
Each model is equipped with essential components such as a pressure gauge, safety valve, hose joint, V-belt, belt cover, silencer, and stop valve, supporting safe, reliable, and efficient operation. The pressure-switch configuration allows convenient control of compressor operation while maintaining consistent air pressure.
Built with durable components and Hitachi's trusted compressor engineering, the 9.5V5A series is designed for long-term performance and dependable operation in demanding working environments.
Key Features
- Hitachi 9.5V5A horizontal air compressor series
- Available in 3HP, 5HP, 7.5HP, 10HP, and 15HP models
- 415V three-phase power supply for industrial applications
- Maximum pressure of 0.93 MPa (9.3 Bar)
- Multiple air tank capacities from 90L to 250L
- Air delivery capacity from 265 L/min to 1,200 L/min, depending on model
- Horizontal tank configuration for stable installation
- Pressure switch type for convenient automatic operation
- Suitable for pneumatic tools and industrial equipment
- Standard accessories include pressure gauge and safety valve
- Includes hose joint, V-belt, belt cover, silencer, and stop valve
- Durable construction for demanding working environments
- Designed for reliable and continuous compressed-air supply
- Suitable for workshops, factories, automotive service, manufacturing, and commercial applications
| Specification | 3HP | 5HP | 7.5HP | 10HP | 15HP |
| Model | 2.2P-9.5V5A | 3.7P-9.5V5A | 5.5P-9.5V5A | 7.5P-9.5V5A | 11P-9.5V5A |
| Motor Output | 2.2 kW / 3HP | 3.7 kW / 5HP | 5.5 kW / 7.5HP | 7.5 kW / 10HP | 11 kW / 15HP |
| Voltage | 415V | 415V | 415V | 415V | 415V |
| Power Supply | 3 Phase | 3 Phase | 3 Phase | 3 Phase | 3 Phase |
| Maximum Pressure | 0.93 MPa | 0.93 MPa | 0.93 MPa | 0.93 MPa | 0.93 MPa |
| Compressor Speed | 730 rpm | 1000 rpm | 1080 rpm | 950 rpm | 1050 rpm |
| Displacement | 265 L/min* | 541 L/min | 795 L/min | 1027 L/min | 1546 L/min |
| Capacity at Maximum Pressure | — | 440 L/min | 630 L/min | 840 L/min | 1200 L/min |
| Air Tank Capacity | 90L | 125L | 150L | 235L | 250L |
| Cylinder Configuration | 72 × 65 × 2 | L: 90 × 85 × 1H: 50 × 85 × 1 | L: 105 × 85 × 1H: 60 × 85 × 1 | L: 90 × 85 × 2H: 72 × 85 × 1 | 105 × 85 × 285 × 82 × 1 |
| Motor Type | 3 Phase | 3 Phase | 3 Phase | 3 Phase | 3 Phase |
| Noise Level | 72 dB | 74 dB(A) | 76 dB | 79 dB | — |
| Dimensions (W × D × H) | 1283 × 403 × 860 mm | 1345 × 428 × 923 mm | 1470 × 482 × 932 mm | 1643 × 556 × 1094 mm | 1838 × 611 × 1102 mm |
| Weight | 97 kg | 158 kg | 203 kg | 280 kg | 340 kg |
