Finder 15 400mW Bluetooth Dimmer Wall Mount 230V

Technical data sheets

Datasheet

*Check stock before ordering. Lead time 5 working days.*

Product Details

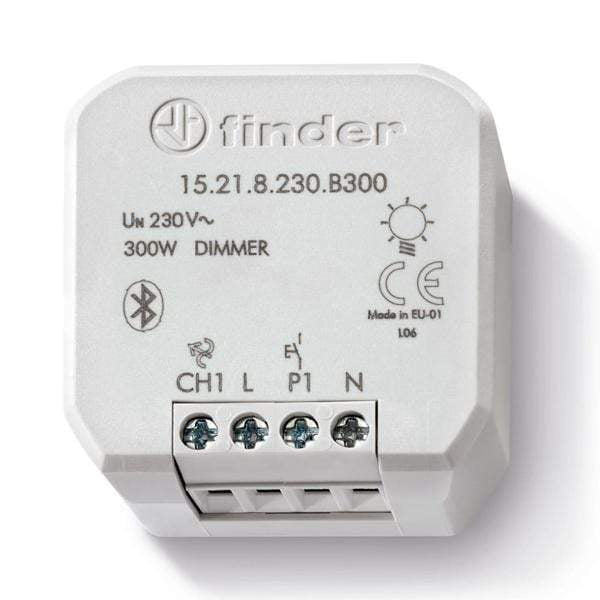

YESLY 1 CHANNEL WIRELESS DIMMER ACTUATOR

Bluetooth Dimmer

• 1 output
• Lamp load : 150 W LED, 300 W halogen
• AUTO function, to automatically set the most appropriate method for driving the type of lamp being used
• An additional 7 functions to manually set the lamp driving method and the control curve
• Leading edge and trailing edge compatibility
• Default function: Trailing edge (linear)
• 1 wired pushbutton input. Can be managed through standard wired pushbuttons, wireless pushbuttons or Smartphone
• Compatible with energy-saving lamps, compact dimmable fluorescent lamps (CFL) or dimmable LEDs - with either electronic or electromagnetic transformers
• Management of up to 8 scenarios
• App programming with iOS or Android Smartphone
• Over-temperature and short-circuit protection
• Supply voltage 230 V AC (50/60 Hz)
• Secure Bluetooth 4.2 Low Energy connection with 128-bit encryption
• Round wall box (ie: 0 60 mm) mounting

Specifications
