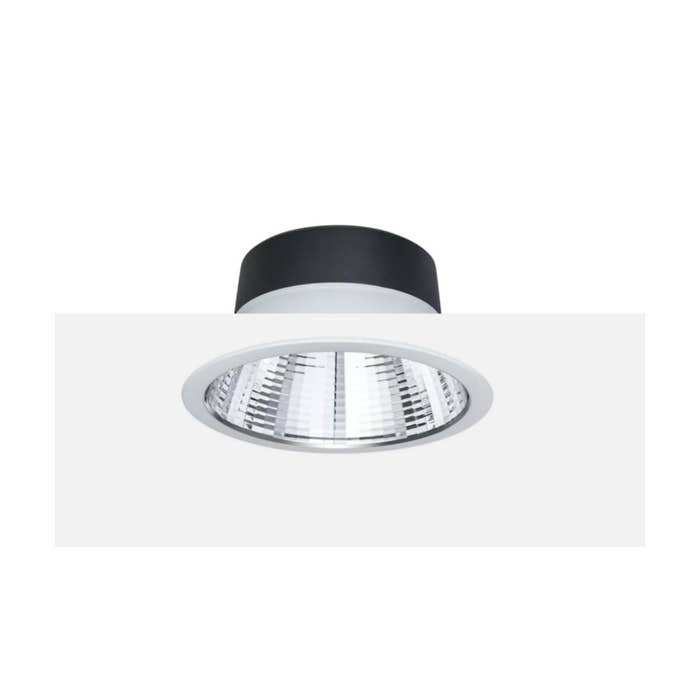

Philips GreenSpace G6 DN392B LED18/865 P14PSU D200 ALWP GMG2HE x 4pcs
Philips GreenSpace G6 DN392B LED18/865 P14PSU D200 ALWP GMG2HE x 4pcs
SKU SKU:911401522544
Regular price
$ 236.00 SGD
Regular price
$ 236.00 SGD
Sale price
$ 236.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Share
GreenSpace G6, 14.4 W, 1850 lm, 6500 K, Facetted reflector, Matte, IP20/54 | Finger-protected; dust accumulation-protected, splash-proof
DN392B LED18/865 P14PSU D200 ALWP GMG2HE (911401522544)
Leadtime: 7 To 9 Weeks
| GENERAL INFORMATION | |
| Number Of Gear Units | - |
| Gear | - |
| Driver Included | Yes |
| Light Source Engine Type | LED |
| Service Tag | Yes |
| Warranty Period | 3 years |
| LIGHT TECHNICAL | |
| Luminous Flux | 1,850 lm |
| Correlated Color Temperature (Nom) | 6500 K |
| Luminous Efficacy (rated) (Nom) | 132 lm/W |
| Color Rendering Index (CRI) | >80 |
| Number Of Light Sources | 1 |
| Light Source Color | 865 cool daylight |
| Optic Type | Facetted reflector |
| Unified Glare Rating CEN | 16 |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 or 60 Hz |
| Inrush Current | 10:00 AM |
| Inrush Time | 0.02 ms |
| Power Consumption | 14.4 W |
| Power Factor (Fraction) | 0.9 |
| Connection | Flying leads/wires |
| Cable | 2×0.75mm² |
| Number Of Products On MCB Of 16 A Type B | 170 |
| Suitable For Random Switching | No |
| Protection Class IEC | Safety class II |
| CONTROLS AND DIMMING | |
| Dimmable | No |
| Control Interface | - |
| Maximum Dim Level | Not applicable |
| MECHANICAL AND HOUSING | |
| Housing Material | Aluminum die-cast |
| Reflector Material | Polycarbonate |
| Optic Material | Polycarbonate |
| Optical Cover Material | Polycarbonate |
| Housing Color | Aluminum |
| Mounting Device | Frame for recessed mounting |
| Optical Cover Finish | Matte |
| Overall Height | 107 mm |
| Overall Diameter | 216 mm |
| Ingress Protection Code | IP20/54 [Finger-protected; dust accumulation-protected, splash-proof] |
| Mech. Impact Protection Code | IK03 [0.3 J] |
| Optical Cover Type | Polycarbonate Diffuser |
| Net Weight (Piece) | 0.440 kg |
| APPROVAL AND APPLICATION | |
| Glow-wire Test | Temperature 650 °C, duration 5 s |
| Flammability Mark | - |
| CE Mark | Yes |
| ENEC Mark | - |
| Photobiological Risk | Photobiological risk group 1 @200mm to EN62778 |
| EU RoHS Compliant | Yes |
| Performance Ambient Temperature Tq | 25 °C |
| Ambient Temperature Range | -20 to +40 °C |
| INITIAL PERFORMANCE (IEC COMPLIANT) | |
| Luminous Flux Tolerance | +/-10% |
| Initial Chromaticity | 5 |
| Power Consumption Tolerance | +/-10% |
| PRODUCT DATA | |
| Order Product Name | DN392B LED18/865 P14PSU D200 ALWP GMG2HE |
| Full Product Name | DN392B LED18/865 P14PSU D200 ALWP GMG2HE |
| Order Code | 9.11402E+11 |
| Material Nr. (12NC) | 9.11402E+11 |
| Numerator - Quantity Per Pack | 1 |
| Numerator - Packs Per Outer Box | 4 |
