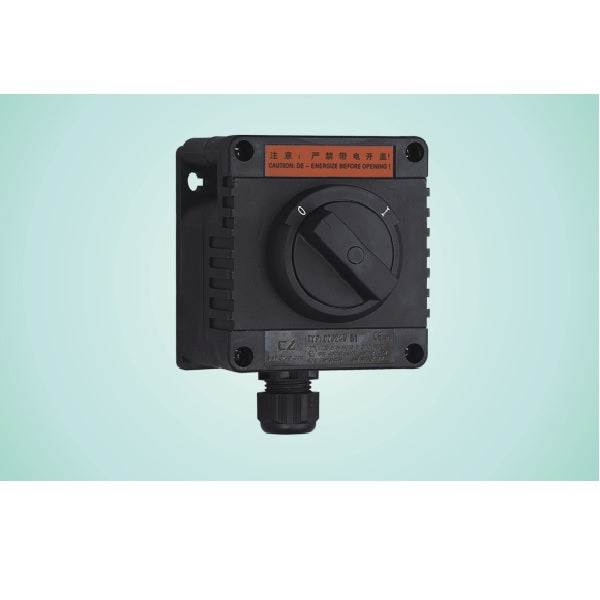

CZ 0240 16 A ON /OFF full Plastic explosion proof illumination switches
CZ 0240 16 A ON /OFF full Plastic explosion proof illumination switches
SKU SKU:CZ024016A
Couldn't load pickup availability
Share
Technical Details:
Product Details：
Ex mark:Ex de ⅡC T6 DIP A21 TA，T6
Intended use:Can be used in zone 1,zone 2,zone 21,zone22
Ambient temperature:-40℃≤Ta≤40℃
Degree of protection:IP66
Rated voltage :max 250V.Rated current:max16A
Component terminal:2.5m㎡.PE terminals:4m㎡
Material of enclosure:Alloy plastic of static resistence
Meet the standard:IEC60079 IEC61241 EN60079 EN61241
Conformity to:CE 0575
Cable entry:Brass,aluminum,moulded plastic cable gland
Prodcuts Features:
● Easy installation
● High chemical stability
● Large wiring space
● Degree of protection is IP66
● IECEx International Approval, ATEX European Approval
Product Parameter
|
Product type： |
Full plastic explosion-proof illumination switches |
|
Certification： |
CCC IECEX ATEX |
|
Application range (zones)： |
2G/Gb/zone 1；2D/Db/zone 21 |
|
Min.ambient temperature： |
-40℃ |
|
Max.ambient temperature： |
+55℃ |
|
Degree of protection： |
IP66 |
|
Rated voltage： |
max 250V |
|
Rated current： |
max 16A |
|
Component terminal： |
2.5mm² PE terminals：4mm² |
|
Material of enclosure： |
Alloy plastic of static resistance |
|
Cable entry： |
Brass, moulded plastic cable gland |
