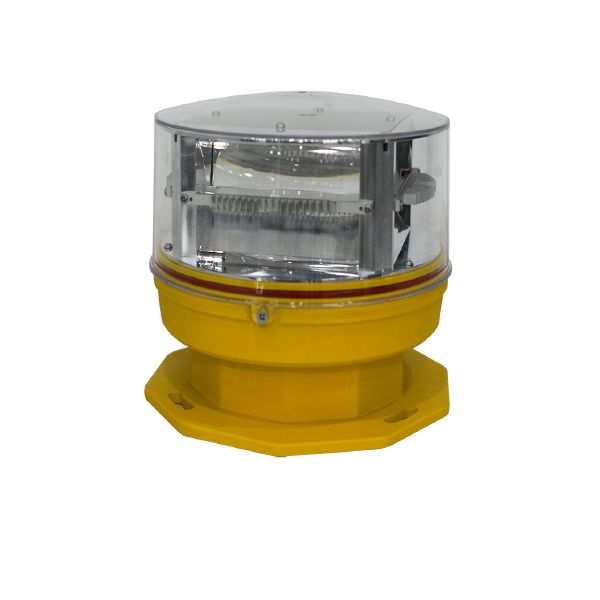

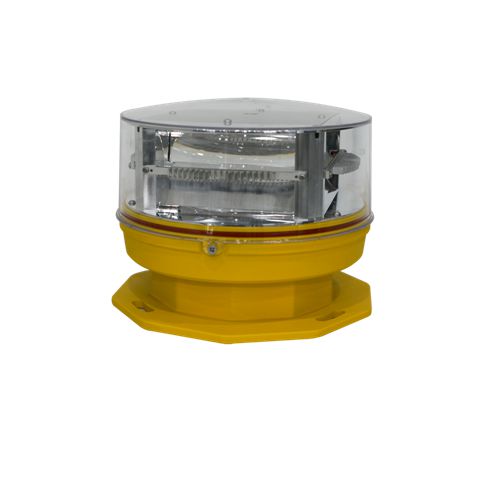

CST CS-865 XH-M(L) Medium-Intensity Aviation Obstruction Light

CST CS-865 XH-M(L) Medium-Intensity Aviation Obstruction Light

SKU XH-MB(L)S

$ 3,735.00 SGD
$ 4,000.00 SGD $ 3,735.00 SGD
Sale Sold out
Shipping calculated at checkout.
Power
Type

Request For Quote

Technical Details

*Check stock before ordering. Lead time 4-5 weeks after receiving the order.*

Datasheet for XH-MB(L) Solar

Medium-intensity Type B Aviation Obstruction Light (DC12V, Red,Flashing mode,20 to 60times/min,2000cd) Solar Powered Way
XH-MB(L) Solar Powered
Light source: LED
The service life of LED: ≥100,000hours
Operating voltage: DC12V
Average Power consumption:<4W
Overall size(mm): 238 by 238 by 184
Dimension Size:190 by 160 by 12
Material:
-Housing: PC
-Base: die-casting aluminum
Weight:2.6Kg
Emitting color: Red
Ambient temperature: -10℃~+60℃
Protection standard: IP65
Medium-intensity Type B Aviation Obstruction Light(Solar Powered);Light
intensity: 2,000cd ±25%;Flashing rate:20-60times/minute;Emitting
Color:Red;7days(Option 15days based on customer request);Operating
voltage:DC12V
XH-MB(L)
Water Resistance: IP65
LED:
Average Power consumption:<4W
Weight:2.6kg
Dimension Size:190 by 160 by 12
Overall size(mm): 238 by 238 by 184
Medium-intensity Type B;Light intensity: 2,000cd ±25%;Flash rate: Flashing
mode(20-60times/minute);Operating voltage: DC12V;Emitting color: Red
;AC220V with GPS ; DC12V without GPS

Main Parameter
Name
Main Parameter
Mode
XH-MB(L)
Standard
 ICAO (Aerodromes Annex 14)
Medium-intensity Type B, FAA L-864
Battery
1.Capacity:
-12V,33Ah(Lead Acid Battery)
-Kind:Lead Acid Battery
Solar Panel(Solar Module)
1.Capacity:16.5V,28W
2.Type:Mono Crystalline

1.Operating voltage:DC12V
2.Light intensity: 2,000cd



Lamp on Top of Solar Light


3. Flashing rate:20-60times/minute
4. Light Source: LED.
5. LED Quantity:36Pcs big power
LED.
6. Emitting Color: Red
7. Cover: PC  Base: Aluminum Alloy
8. Built-in photocell: photocell can let
light work at night or low visibility
daytime.
Battery Case
Material:SS 304stainless Steel
Overall Size(mm)
525 by 482 by 455
Installation Size(mm)
200 by 322 by 13
Total Weight
18.5Kg(±1Kg)
Autonomy in raining day
7days(Option 15days based on
customer request)
Ambient Temperature
-40℃~+70℃
Wind load
80m/s
Protection Standard
IP65

XH-MA(L)

Service life of LED: ≥100,000hours
Operating voltage: AC220V,50Hz or
60Hz
Average Power consumption:<14W
Overall size(mm): 238 by 238 by 184
Dimension Size:160 by 160 by 190 by
M10
Vertical degree: 3°
Horizontal degree: 360°
Material:
-Housing: PC
-Base: die casting aluminum
Weight:3Kg
Emitting color: White
Ambient temperature: -40℃~+60℃
Wind load: 80m/s

Standard: ICAO (Aerodromes Annex 14) Medium-intensity Type A and FAA
L-865
Light intensity: 2,000cd ±25%(Night),20,000cd ±25%(Daytime)
Flash rate: Flashing mode(20-60times/minute)
Light source: LED
Emitting color: White
Ambient temperature: -40℃~+60℃
Wind load: 80m/s
Ac110v-ac240v, white light during the day, 40 times / min, red light at
night, 20 times / min, white light in the upper layer and red light in the
lower layer, with GPS synchronization function
