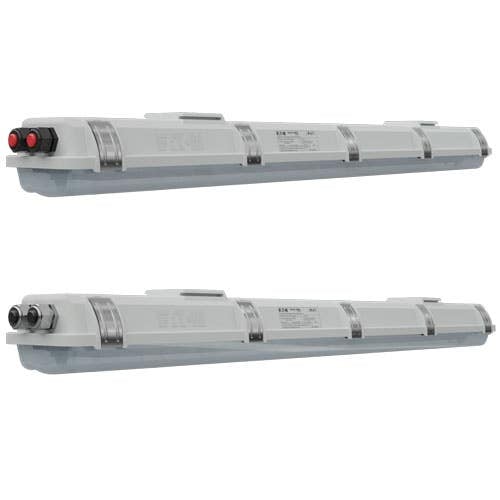

Crouse Hinds CHLMT2372-01 Ceiling Mount Sliding Rail for Vll 2FT

Crouse Hinds CHLMT2372-01 Ceiling Mount Sliding Rail for Vll 2FT

SKU CHLMT2372-01

$ 85.00 SGD
$ 85.00 SGD $ 85.00 SGD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left
Request For Quote

CHLMT2372-01 - CEILING,MOUNT,SLIDING,RAIL,FOR,VLL,2FT.

Leadtime: 14 To 16 Weeks

Certifications and Compliances

  • Marking according to IECEx:
    • Ex eb mb IIC T5 Gb or Ex db eb mb IIC T5 Gb
    • Ex db eb ib mb IIC T5 GB (EM)*
    • Ex tb IIIC T80℃ Db
  • Marking according to ATEX:
    • II2 G Ex eb mb IIC T5 Gb
    • II2 G Ex db eb mb IIC T5 Gb
    • II2 G Ex db eb ib mb IIC T5 Gb (EM)
    • II2 D Ex tb IIIC T80℃ Db
  • Operating temperature range:
    • -40ºC to 55ºC (normal)
    • -25ºC to 45/50ºC (emergency)
  • Environmental protection: IP66
  • * Isolation switch is available as optional

Design Features

  • EFFICIENCY
    • Industry leading lumen efficacy up to ~130 lm/w reduces energy consumption and delivers cost savings
    • Three lumen packages available from 3100 to 7400 lumens providing a versatile solution for different illumination applications
  • SAFETY AND RELIABILITY
    • Rugged GRP design provides long-life reliability in hazardous and harsh areas where corrosion, impact, and adverse environments are common challenges
    • IP66 rating, even under constant vibration
    • Optional self-contained battery for emergency lighting applications delivers 25% of standard lumen output for 1.5-hours or 3-hours
  • EASY INSTALLATION AND MAINTENANCE
    • Retrofit-friendly design includes optional sliding rail mounting system, which allows brackets to be easily adjusted to existing mounting holes
    • Self-monitoring battery indicator provides easy visual of fixture status during routine maintenance checks
    • Inhibit switch comes as standard on VLL LED emergency fixture, which is suitable for offshore unmanned platform applications
  • NEW MODELS DESIGNED SPECIFICALLY FOR POLE MOUNTING APPLICATIONS
    • Mounting assembly strengthens reliability by eliminating exposed cables and providing a built-in cable gland
    • Robust assembly delivers strong resistance to heavy winds with no sideways rotation
    • Pole-mounting assembly features an externally accessible Ex e chamber for easy termination
