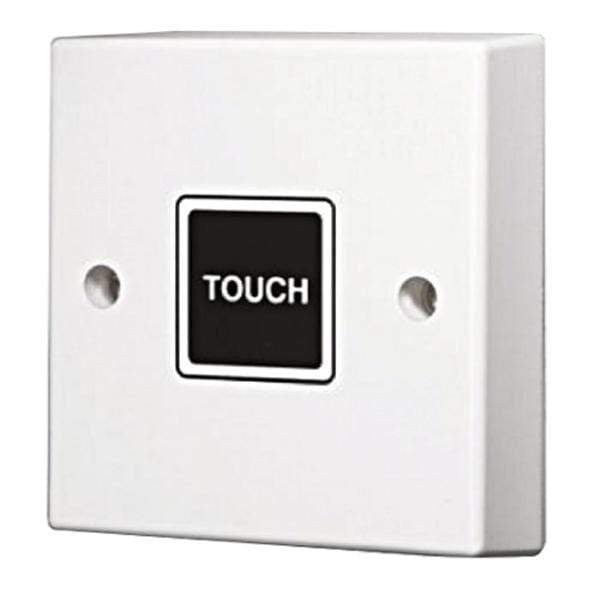

CP Electronics Time Delay Mount Touch Control Switch IP20 x2Pcs
CP Electronics Time Delay Mount Touch Control Switch IP20 x2Pcs
SKU SKU:2798484
14 in stock
Couldn't load pickup availability
Share
Technical data sheets
*Check stock before ordering. Lead time 4 working days.*
Product Details
Electronic Time Delay Appliance Switches
Available in pushbutton, touch activated or splashproof
Requires permanent live and neutral connections
Stock no. 490-201 and stock no. 279-8484 are suitable for surface or flush mounting on any standard British back box deeper than 25mm
Splashproof version is only suitable for surface mounting
Splashproof version sealed to IP66
Ressetting or non-resetting operation selectable on stock no. 490-201 and stock no. 279-8484
Supply voltage 220-240V ac
Suitable for switching up to a 16A of resistive loads, 10A if incandescent lamps or 6A of fluorescent lighting
Remote slave facility on stock no. 490-201
Lighting Controllers
When body heat is detected, the load is switched on. At a preset time after movement has ceased the load is automatically switched off. Available for standard lighting or electrical appliance applications.
Specifications
| Attribute | Value |
| Switch Type | Touch Control |
| Number of Gangs | 1 |
| Number of Poles | 1 |
| Mount Type | Surface |
| IP Rating | IP20 |
| Colour | White |
| Material | ABS |
| Series | Green-i |
| Voltage Rating | 230 V ac |
| Finish | Satin |
| Illumination | Not Illuminated |
| Faceplate Fixing | Screwed |
| Minimum Box Depth | 25mm |
| Length | 86 mm |
| Fixing Standard | BS Standard |
| Depth | 25 mm |
| Width | 86 mm |
| Termination Type | Captive Screw |
| Colour Shade | White |
| Height | 86mm |
