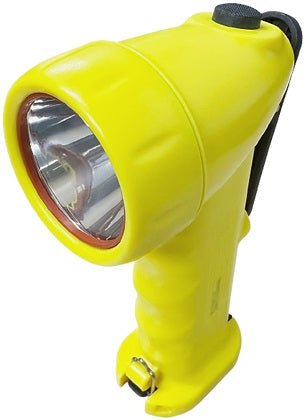

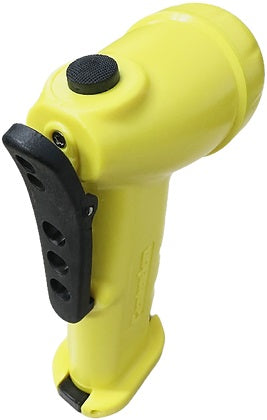

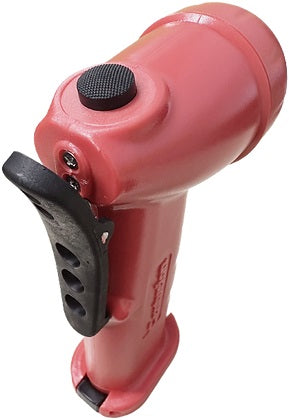

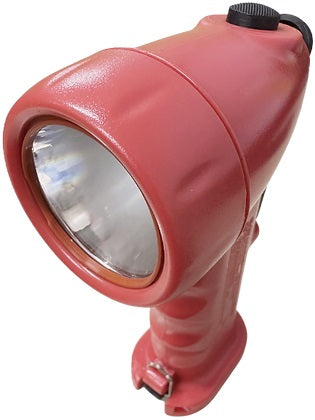

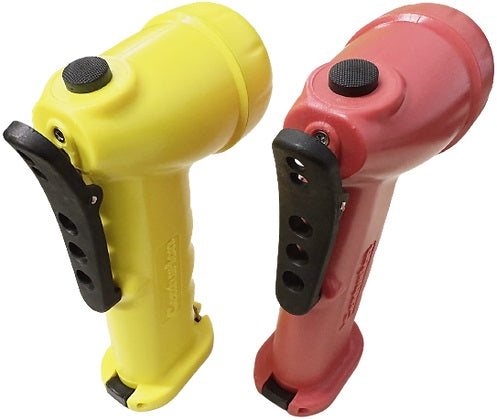

Centurion Explosion Proof EX-2280 3W Rescue Hand Lamp
Centurion Explosion Proof EX-2280 3W Rescue Hand Lamp
SKU SKU:330660
Couldn't load pickup availability
Share
Technical Details:
Description:
The Centurion intrinsically safe rescue hand lamps are ATEX Directive certified for safe use in hazardous locations in zones 1, 2, and 21, 22. They produce excellent light output and are exceptionally robust and reliable. In addition, the compact, lightweight, and ergonomic hand lamp body allow users to easily operate the device with one hand.
Product Features:
- Excellent light output.
- Five output modes.
- Exceptionally robust and reliable.
- Compact, lightweight, and ergonomic.
|
Inv code |
330660 |
330661 / 792266/CEN |
|
Model |
EX-2280 |
EX-2380 |
|
Light source type |
High power LED bulb |
High power LED bulb |
|
Beam type / Distance |
Spot / 120 meters |
Spot / 120 meters |
|
Output |
120 Lumens (High) / 72 Lumens (Medium) / 30 Lumens (Low) / 120 Lumens (Strobe light & S.O.S) ***(all of the above are the effective lumens) |
120 Lumens (High) / 72 Lumens (Medium) / 30 Lumens (Low) / 120 Lumens (Strobe light & S.O.S) ***(all of the above are the effective lumens) |
|
Output mode |
High / Medium / Low / Strobe light / S.O.S |
High / Medium / Low / Strobe light / S.O.S |
|
Light duration |
5.5 Hours (High) / 9 Hours (Medium) / 22 Hours (Low) / 16 Hours (Strobe Light) / 14 Hours (S.O.S) |
10 Hours (High) / 17 Hours (Medium) / 42 Hours (Low) / 22 Hours (Strobe Light) / 20 Hours (S.O.S) |
|
Power |
6V 3W |
7.4V 3W |
|
Power source |

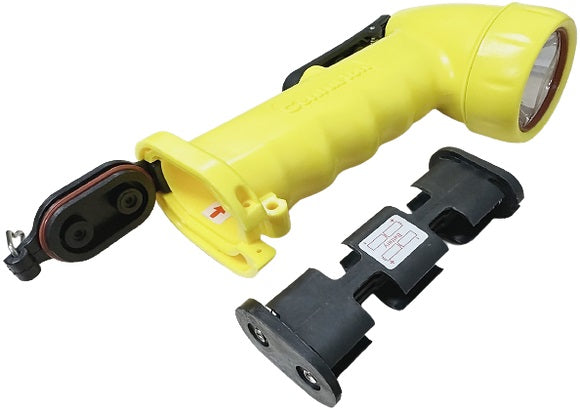

4 x LR6(AA) Alkaline batteries |

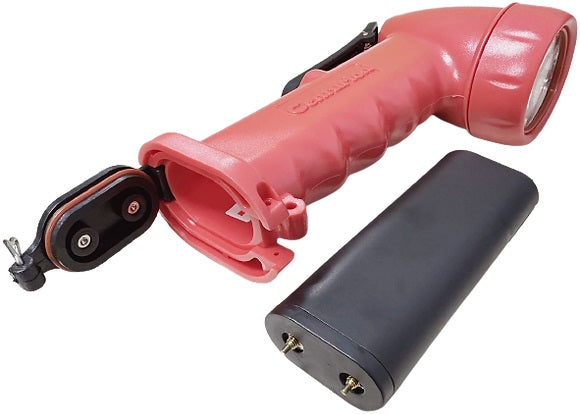

Rechargeable battery, lithium-ion 7.4V 2500mAh |
|
Compatible charger |
N. A. |
LC-333 (Charging Time: 1.5 Hours) |
|
Ingress protection |
IP66 |
IP66 |
|
Impact resistant |
1.8 meters |
1.8 meters |
|
Ambient temperature |
-20°C~+40°C |
-20°C~+40°C |
|
Dimension |
60 x 103 x 180mm |
60 x 103 x 180mm |
|
Weight |
230g (without batteries) |
362g (with battery) |
|
Type of protection |
'ib' Intrinsically Safe |
'ib' Intrinsically Safe |
|
Areas of classification (Gases) |
Zone 1 and 2. Gas Groups: IIA, IIB, and IIC |
Zone 1 and 2, Gas Groups: IIA, IIB, and IIC |
|
Areas of classification (Dusts) |
Zone 21 and 22. Dust Groups: IIIA, IIIB, and IIIC |
Zone 21 and 22, Dust Groups: IIIA, IIIB, and IIIC |
|
Temperature classification (Gases / Dusts) |
T4 / 130°C |
T4 / 130°C |
