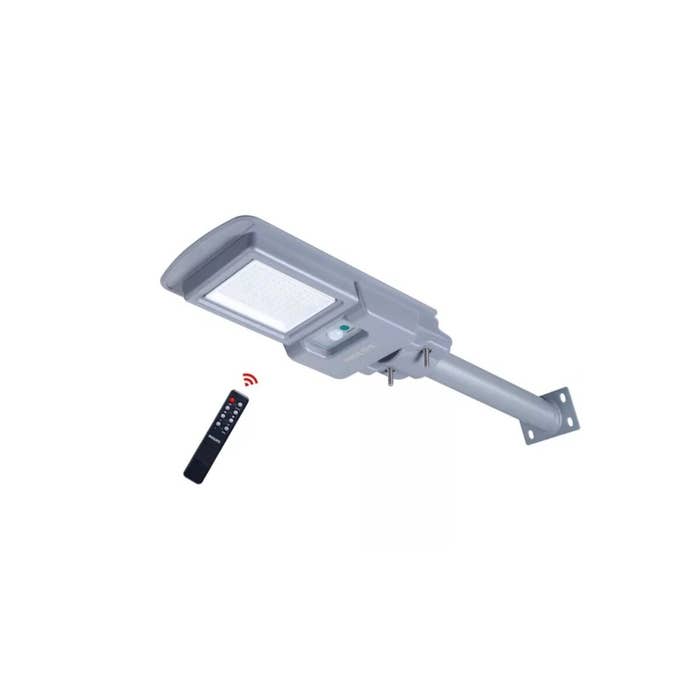

Philips All-in-one Solar Pathway Light BRC010 LED20/765 kit G2 (911401894302) x 200pcs

Philips All-in-one Solar Pathway Light BRC010 LED20/765 kit G2 (911401894302) x 200pcs

SKU 911401894302

URL Datasheet

$ 20,400.00 SGD
$ 20,400.00 SGD $ 20,400.00 SGD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left
Request For Quote

BRC010 LED20/765 kit G2

Leadtime: 14 Weeks

Specifications:

GENERAL INFORMATION
Driver Included Yes
Warranty Period 1 years
LIGHT TECHNICAL
Luminous Flux 2,000 lm
Correlated Color Temperature (Nom) 6500 K
Luminous Efficacy (rated) (Nom) 150 lm/W
Color Rendering Index (CRI) 70
OPERATING AND ELECTRICAL
Line Frequency - Hz
Battery Type LiFePO4
Battery Ampere Hour 8 Ah
Battery Voltage 3.2 V
Battery Charging & Discharging Cycles 500
Panel Type Mono crystalline
Panel Voltage 4.5 V
Panel Peak Wattage 8 W
Charge Controller Type PWM
Connection -
Cable -
Grid Connection Type Off grid
CONTROLS AND DIMMING
Dimmable Preset Dimming
Configurability Not configurable
Control Interface -
Solar Dimming Profile Preset Dimming
MECHANICAL AND HOUSING
Housing Color Grey
Overall Length 412 mm
Overall Width 203 mm
Overall Height 44.5 mm
Dimensions (Height X Width X Depth) 45 x 203 x 412 mm
Material Polycarbonate
Battery Location Inbuilt luminaire
Ingress Protection Code IP65 [Dust penetration-protected, jet-proof]
Optical Cover Type Polycarbonate
Net Weight (Piece) 1.600 kg
APPROVAL AND APPLICATION
CE Mark Yes
EU RoHS Compliant Yes
Ambient Temperature Range 0 to +45 °C
PRODUCT DATA
Order Product Name BRC010 LED20/765 kit G2
Full Product Name BRC010 LED20/765 kit G2
Full Product Code 8.72017E+14
Order Code 9.11402E+11
Material Nr. (12NC) 9.11402E+11
Numerator - Quantity Per Pack 1
EAN/UPC - Product/Case 8.72017E+12
Numerator - Packs Per Outer Box 5
EAN/UPC - Case 8.72017E+12
