Bosch Thermal Camera GTC400C Professional
Bosch Thermal Camera GTC400C Professional
SKU:GTC400C
Couldn't load pickup availability
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
Contact Us
Contact Us
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
Share
Perfect thermal imaging camera-simple operation and immediate visualisation of temperature differences with smart documentation
EAN 3165140913539
Perfect thermal imaging camera - simple operation and immediate visualisation of temperature differences with smart documentation

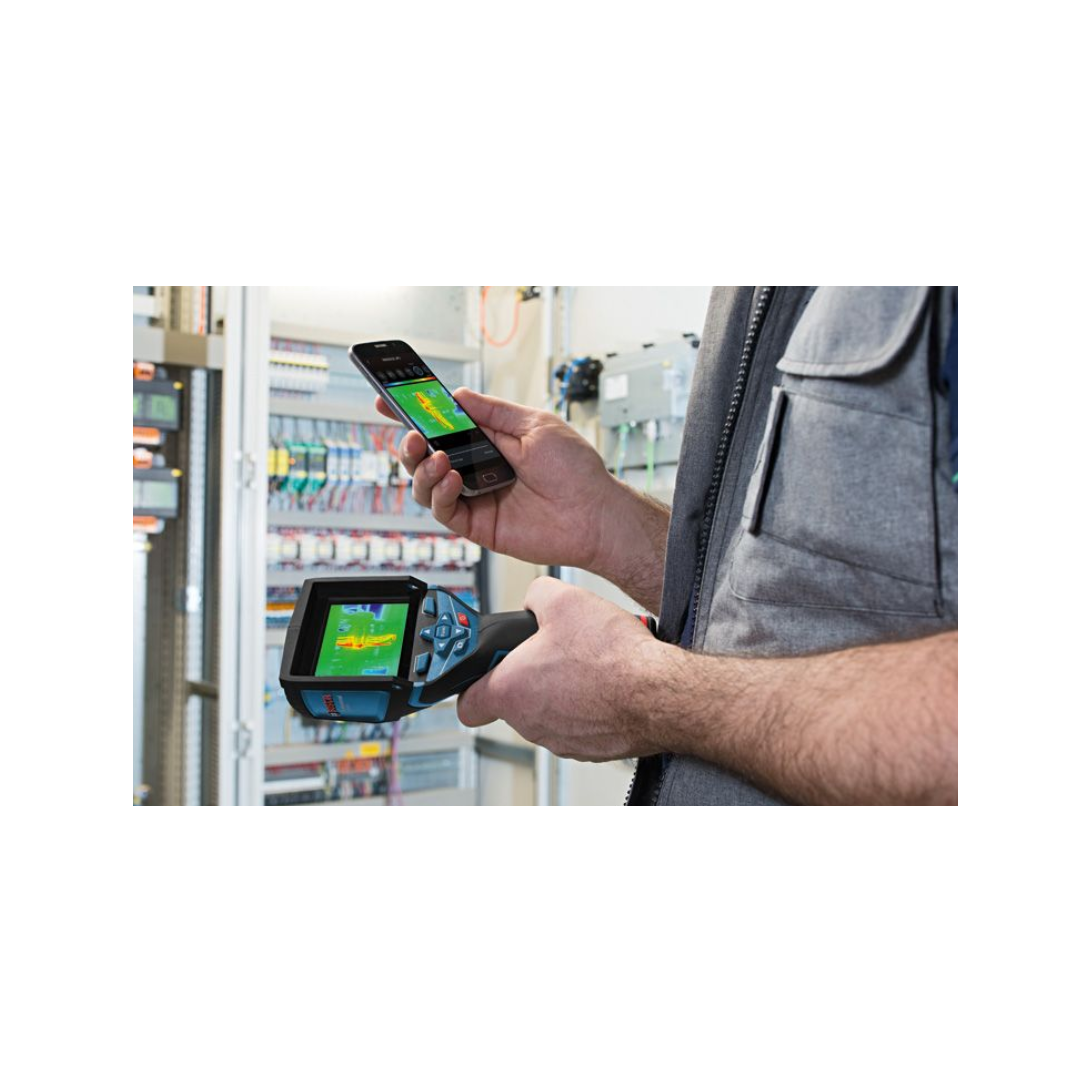

- Fast exchange of data and easy documentation of thermal images with the Bosch ThermalOn app
- Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
- Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries
Product Highlights

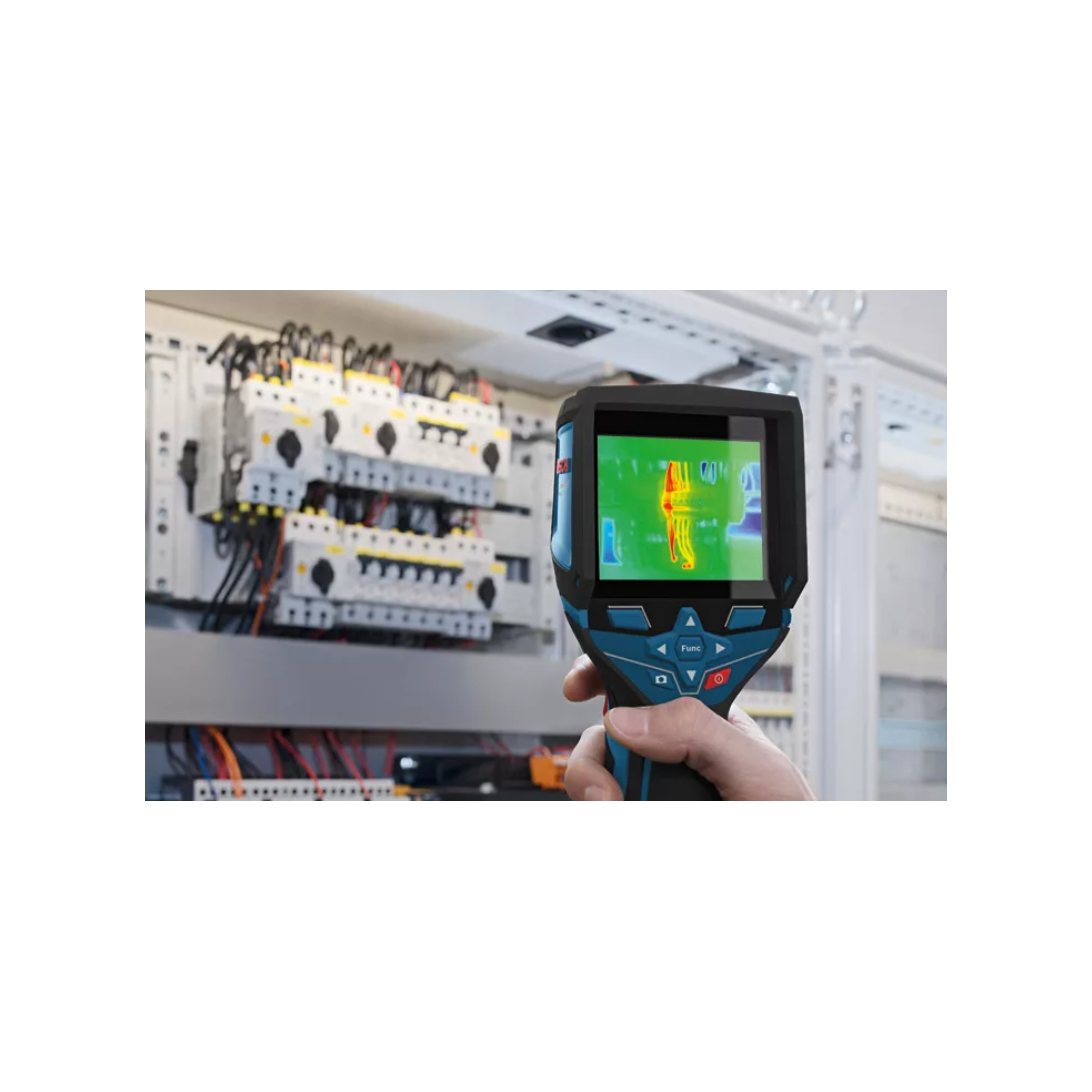

The thermal camera GTC 400 C Professional measures and visualises temperature differences in seconds and easily records the results. The Bosch ThermalOn app documents and forwards measured values fast. Intelligent picture-in-picture technology overlays detailed real and heat-sensing images (19,200 px), resulting in a high-quality image and clear localisation of temperature differences. With its dual power system, a 12 V LI-ION battery or standard alkaline batteries are suitable power supplies.
Equipment & Application

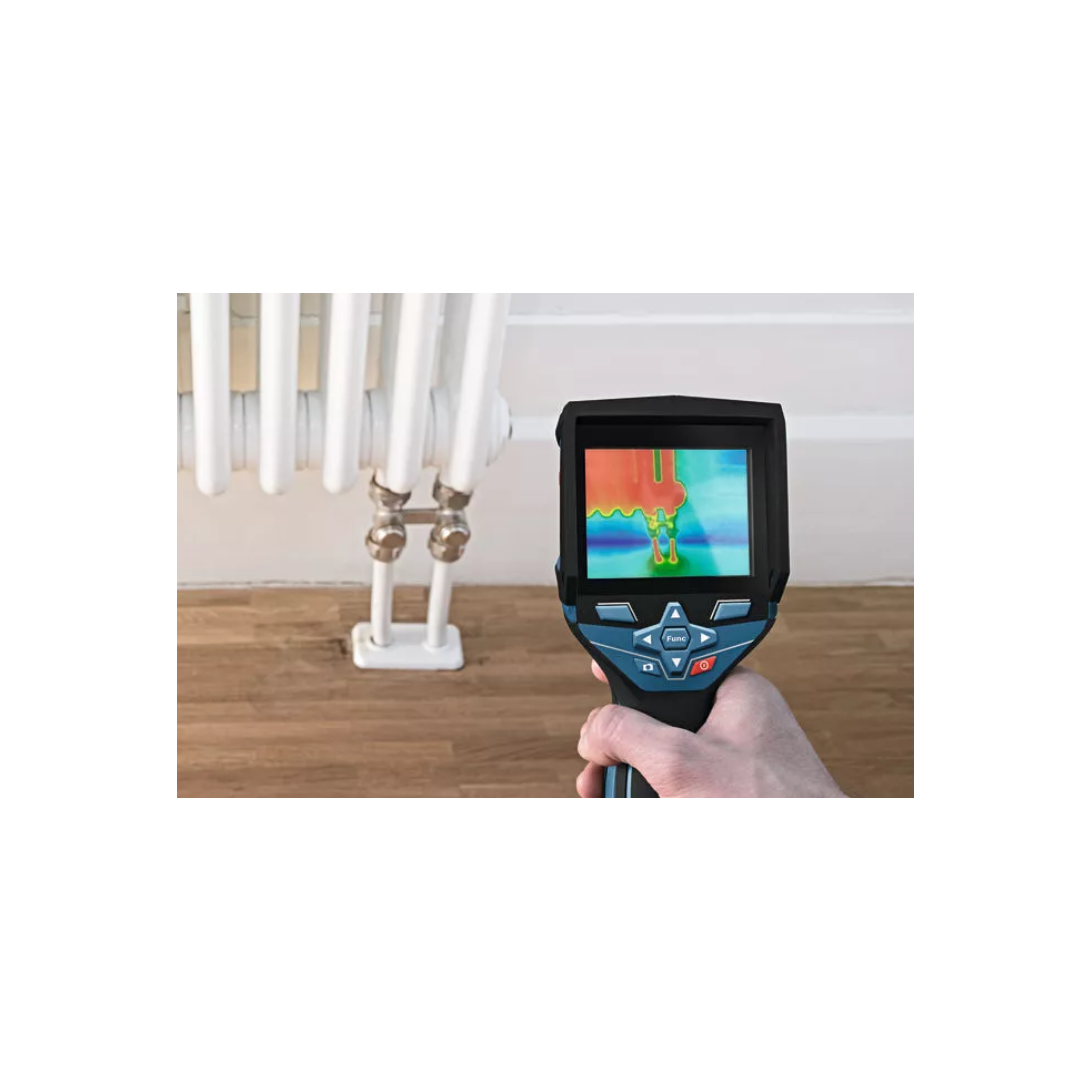

It is ideal for inspecting insulation, heating systems, heat flow, and for finding overheated parts.
Additional Information
The smart GTC 400 C Professional is perfect for supporting a variety of specialists in every project phase: From customer consultations by exhibiting clear images of the situation to preparatory tasks such as inspecting where lines are installed, through project documentation and even follow-up work. The measuring tool must not be used for human medical purposes.
What's inside the box : AA1 alkaline battery adapter, Micro USB cable, Protective Bag, Hand strap, 4 x 1.5 V LR6 battery (AA)
*once seal is opened, we are unable to accept return and refund or any exchange.
| Specification | Details |
|---|---|
| Weight | 0.54 kg |
| Battery voltage | 12.0 V |
| Measurement range | -10 °C to +400 °C |
| Dust and splash protection | IP53 |
| Measuring accuracy of IR | ±3.0 °Cᵇ |
| Resolution | 0.1 °C |
| Operating temperature | -10 – 45 °C |
| Storage temperature | -20 – 70 °C |
| Data transfer | MicroUSB, Wi-Fi |
| Field of view (FOV) | 53 × 43° |
| Power supply and runtime | 4 × 1.5 V LR6 (AA), 1 × GBA 12V, 1 × GBA 10.8V |
| Measuring application | Thermal image |
| Size of IR sensor | 160 × 120 px |
| Number of measuring points | 19,200 |
| File format of image | .jpg |
| Size of display | 3.5" |
| Focus distance, minimum | 0.3 m |
