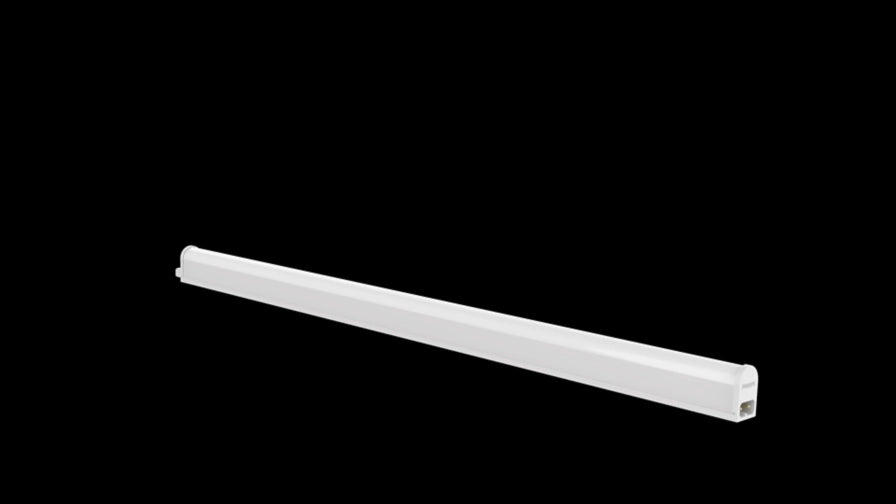

Philips SmartBright Select LED Batten BN158C LED4/SCCT L300 GM x 24pcs
Philips SmartBright Select LED Batten BN158C LED4/SCCT L300 GM x 24pcs
SKU SKU:911401842485
Regular price
$ 240.00 SGD
Regular price
$ 240.00 SGD
Sale price
$ 240.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
BN158C LED4/SCCT L300 GM (911401842485)
Leadtime: 7 To 9 Weeks
| GENERAL INFORMATION | |
| Number Of Gear Units | 1 unit |
| Gear | - |
| Driver Included | Yes |
| Light Source Engine Type | LED |
| Warranty Period | 3 years |
| LIGHT TECHNICAL | |
| Luminous Flux | 400 lm |
| Correlated Color Temperature (Nom) | Selectable |
| Luminous Efficacy (rated) (Nom) | 120 lm/W |
| Color Rendering Index (CRI) | 80 |
| Number Of Light Sources | 1 |
| Beam Angle Of Light Source | 120 degree(s) |
| Light Source Color | 3000/4000/6500 |
| Optic Type | Opal |
| Luminaire Light Beam Spread | 120° |
| Effective Projected Area | 0.01 m² |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 or 60 Hz |
| Inrush Current | 3.55 A |
| Inrush Time | 0.111 ms |
| Power Consumption | 3.4 W |
| Power Factor (Fraction) | 0.9 |
| Connection | Mains outlet socket |
| Cable | - |
| Number Of Products On MCB Of 16 A Type B | 284 |
| Suitable For Random Switching | Yes |
| Protection Class IEC | Safety class II |
| CONTROLS AND DIMMING | |
| Dimmable | No |
| Control Interface | - |
| Maximum Dim Level | Not applicable |
| MECHANICAL AND HOUSING | |
| Housing Material | Polycarbonate |
| Reflector Material | Polycarbonate |
| Optic Material | Polycarbonate |
| Optical Cover Material | Polycarbonate |
| Housing Color | White RAL 9003 |
| Mounting Device | Mounting bracket |
| Optical Cover Finish | Opal |
| Overall Length | 325 mm |
| Overall Width | 20 mm |
| Overall Height | 32 mm |
| Dimensions (Height X Width X Depth) | 32 x 20 x 325 mm |
| Ingress Protection Code | IP20 [Finger-protected] |
| Mech. Impact Protection Code | IK02 [0.2 J standard] |
| Optical Cover Type | Polycarbonate |
| Net Weight (Piece) | 0.050 kg |
| APPROVAL AND APPLICATION | |
| Glow-wire Test | Temperature 650 °C, duration 30 s |
| Flammability Mark | For mounting on normally flammable surfaces |
| CE Mark | Yes |
| ENEC Mark | - |
| Photobiological Risk | Photobiological risk group 0 @ 200mm to EN62471 |
| Photobiological Risk Specification | 0.2 m |
| EU RoHS Compliant | Yes |
| Performance Ambient Temperature Tq | 25 °C |
| Ambient Temperature Range | -20 to +40 °C |
| INITIAL PERFORMANCE (IEC COMPLIANT) | |
| Luminous Flux Tolerance | -1 |
| Initial Chromaticity | (0.44, 0.40) SDCM≤6 |
| Power Consumption Tolerance | +/-10% |
