Bernstein AG

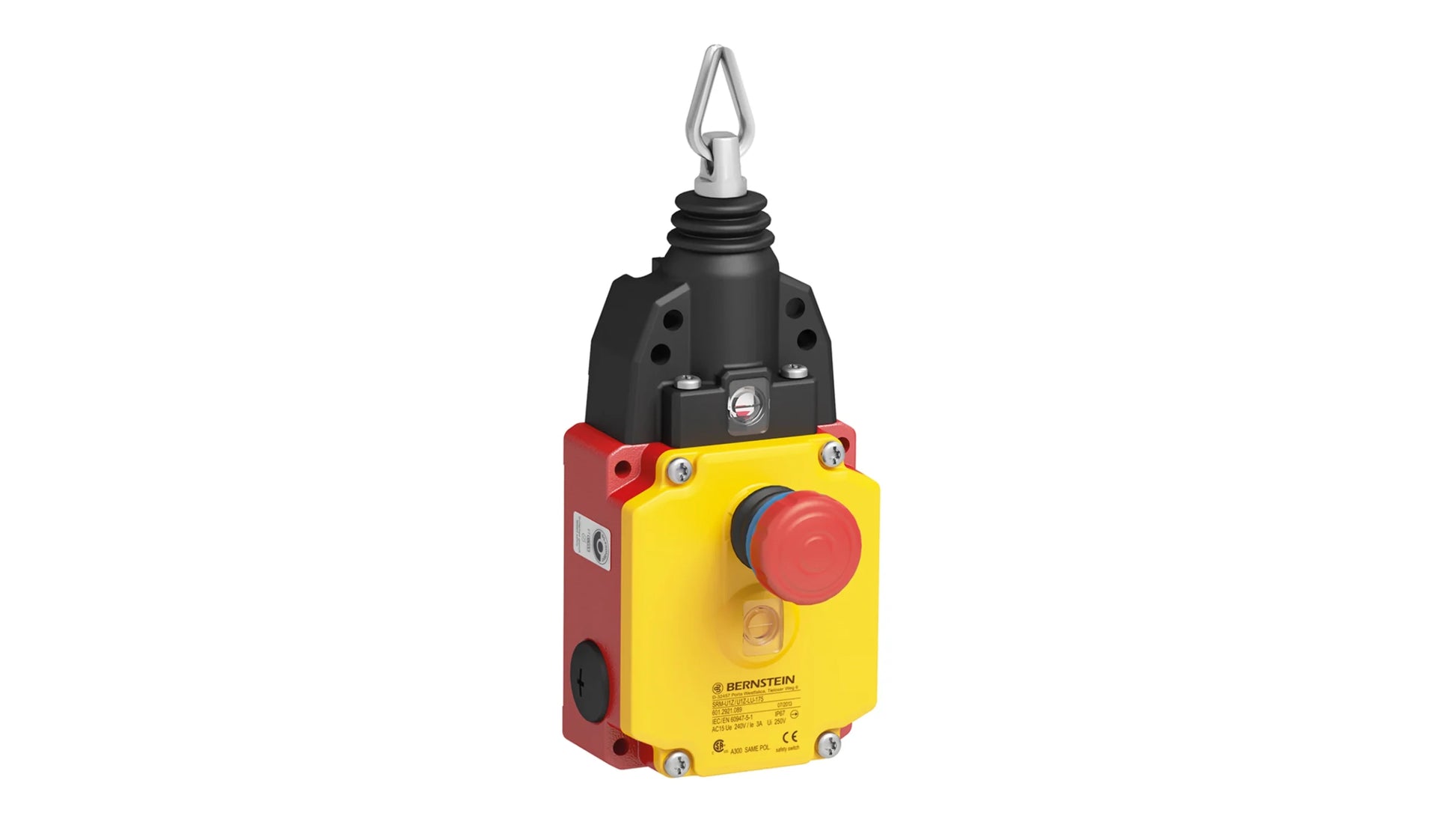

Bernstein AG SRM Rope Pull Switch, 37.5m

Bernstein AG SRM Rope Pull Switch, 37.5m

136-3169

$ 292.00 SGD
$ 292.00 SGD
Sale Sold out
Shipping calculated at checkout.

Request For Quote
Attribute
Value
Cable Length 37.5m
IP Rating IP67
Number of Poles SP
Series SRM
Length 90mm
Width 88mm
Depth 197mm
Housing Material Aluminium
Conduit Entry M20 x 1.5
Minimum Operating Temperature -30°C
Maximum Operating Temperature +80°C
Maximum AC Voltage 250V
Dimensions 90 x 88 x 197mm
Cable Pull System SR-U2Z 300 / 175 / 100 Maximum system length: 75 m Switch function: 2 NC + 2 NO (standard) Built-in reset button Cable pull eyelet, low cost Visualisation of correct cable tension Meets EN418 and IEC947-5-5 Protection class IP67 Safety cable pull switch, plastic housing SR-U2Z 300 / 175 / 100 StandardsEN418; IEC947-5-5
View full details
