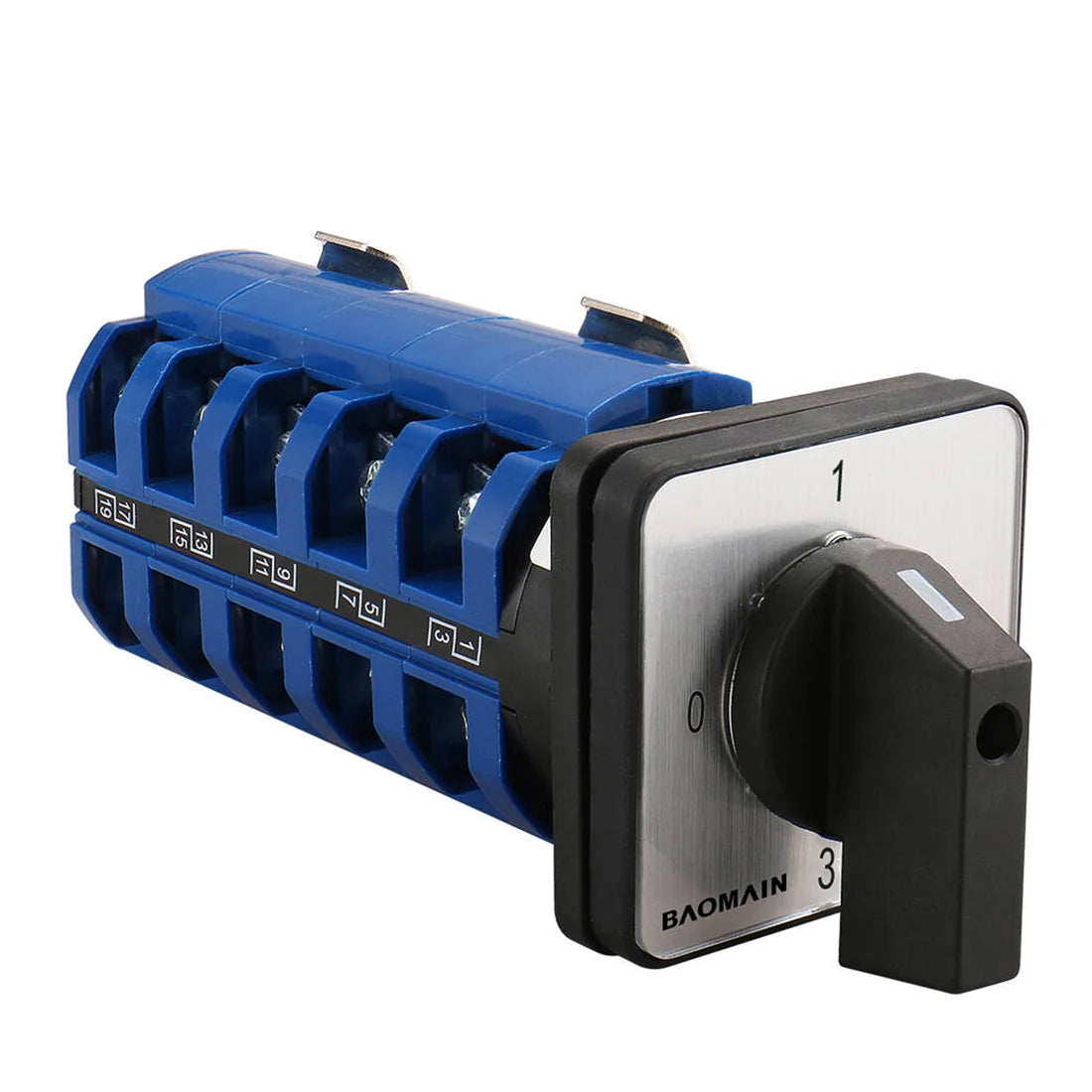

Baomain Rotary Changeover Switch 660V 63A 4 Position 5 Poles 18 Terminals Cam Switch, SZW26-63-ZC.FD08.5
Baomain Rotary Changeover Switch 660V 63A 4 Position 5 Poles 18 Terminals Cam Switch, SZW26-63-ZC.FD08.5
SKU:SZW26-63-ZC.FD08.5
Regular price
$ 51.00 SGD
Regular price
$ 55.00 SGD
Sale price
$ 51.00 SGD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
Contact Us
Contact Us
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
Share
Description:
- Model：SZW26-63-ZC.FD08.5

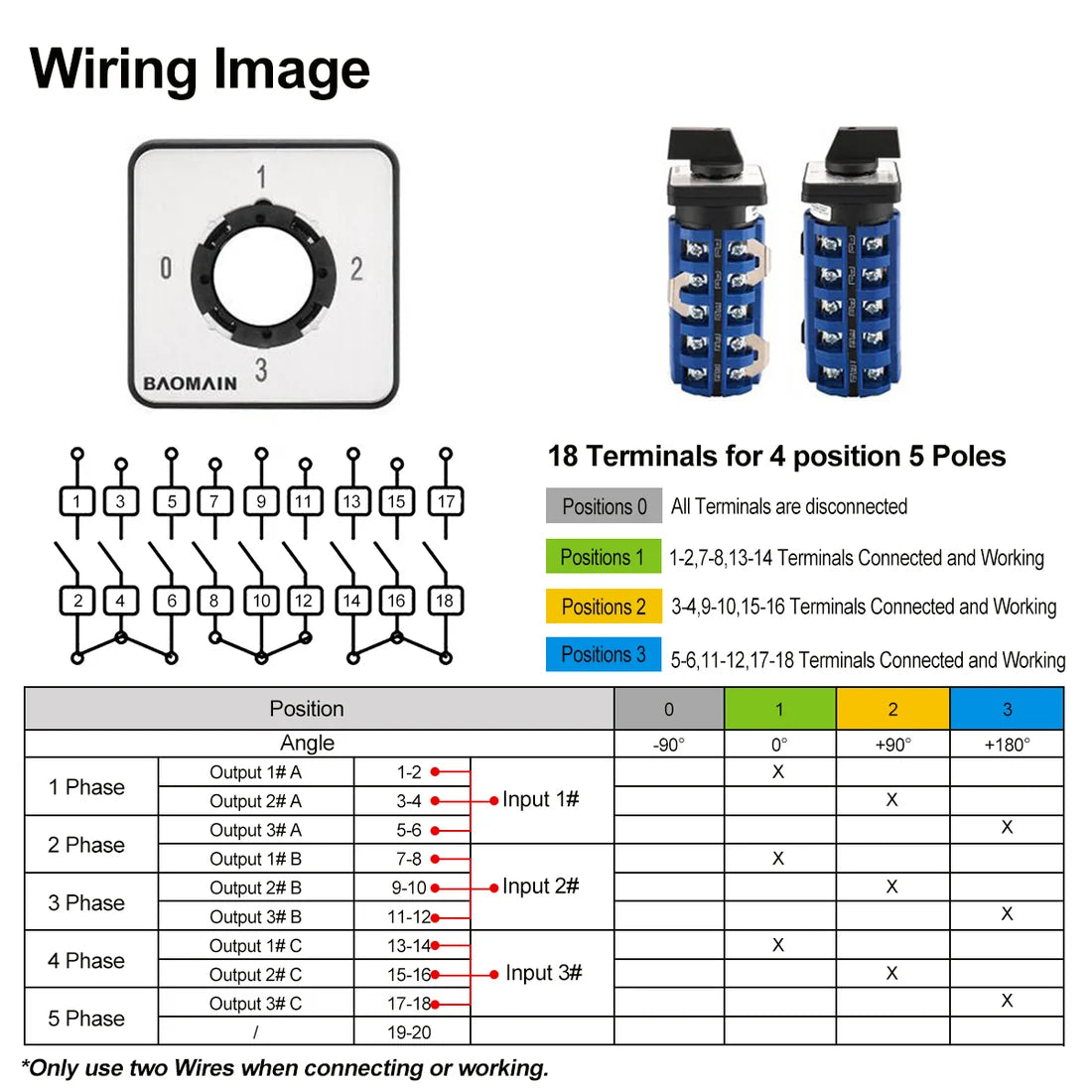

- Positions : 4 Positions (0-1-2-3);

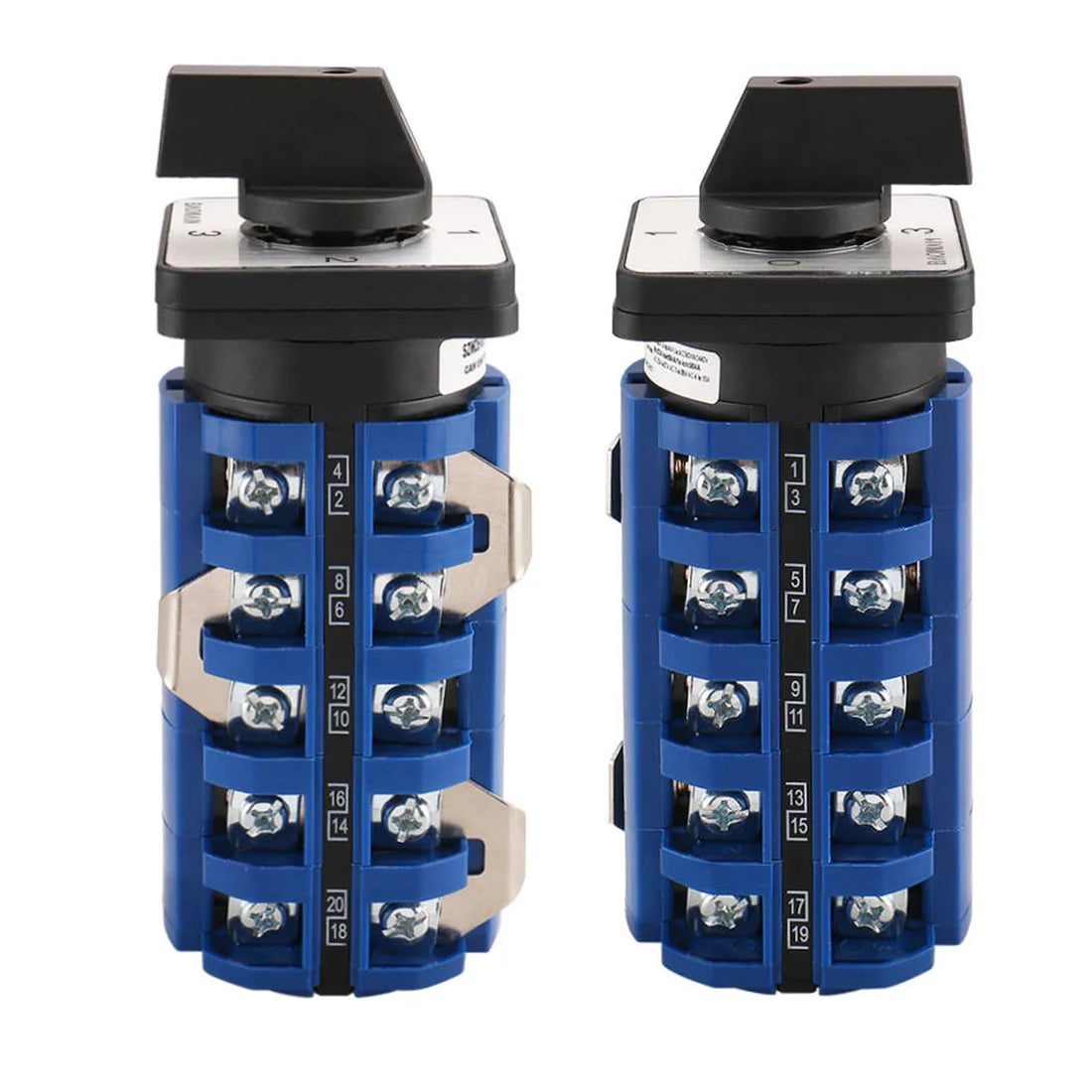

- 5 Poles with 18 Terminals
- Ui : 660V ; Ith : 63A; AC-23A Ie:57A AC-3 Ie: 36A AC-4 Ie: 15A Uimp：4kV

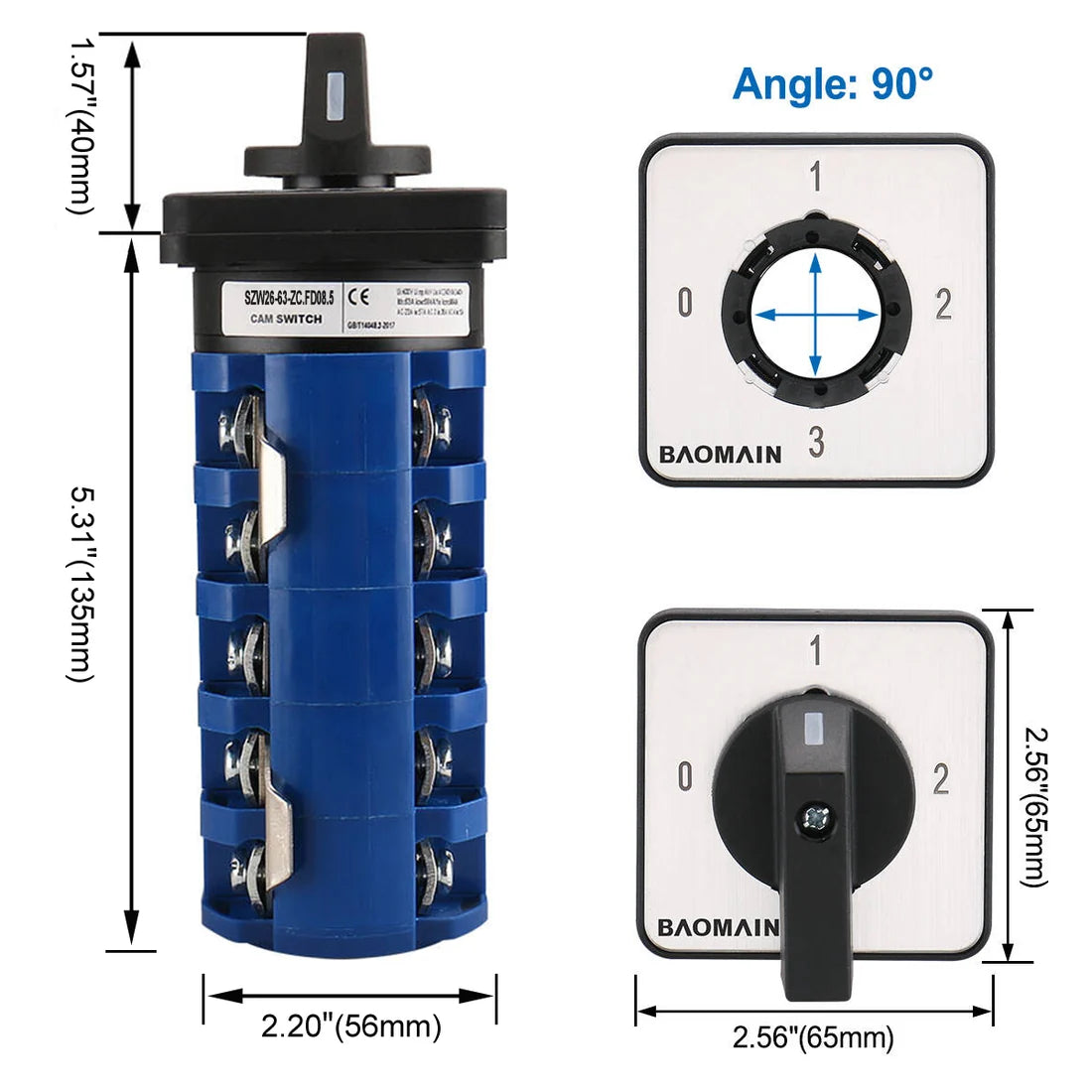

- Size : 175 x 65 x 65mm / 6.8" x 2.5" x 2.5"(L*W*T)
- Weight: 670g; Material: Plastic, Metal
- Wire Size：10- 6AWG ；Tightening Torque: 2.5N .m
- Package Includes: 1x Cam Switch , Screw Accessories
