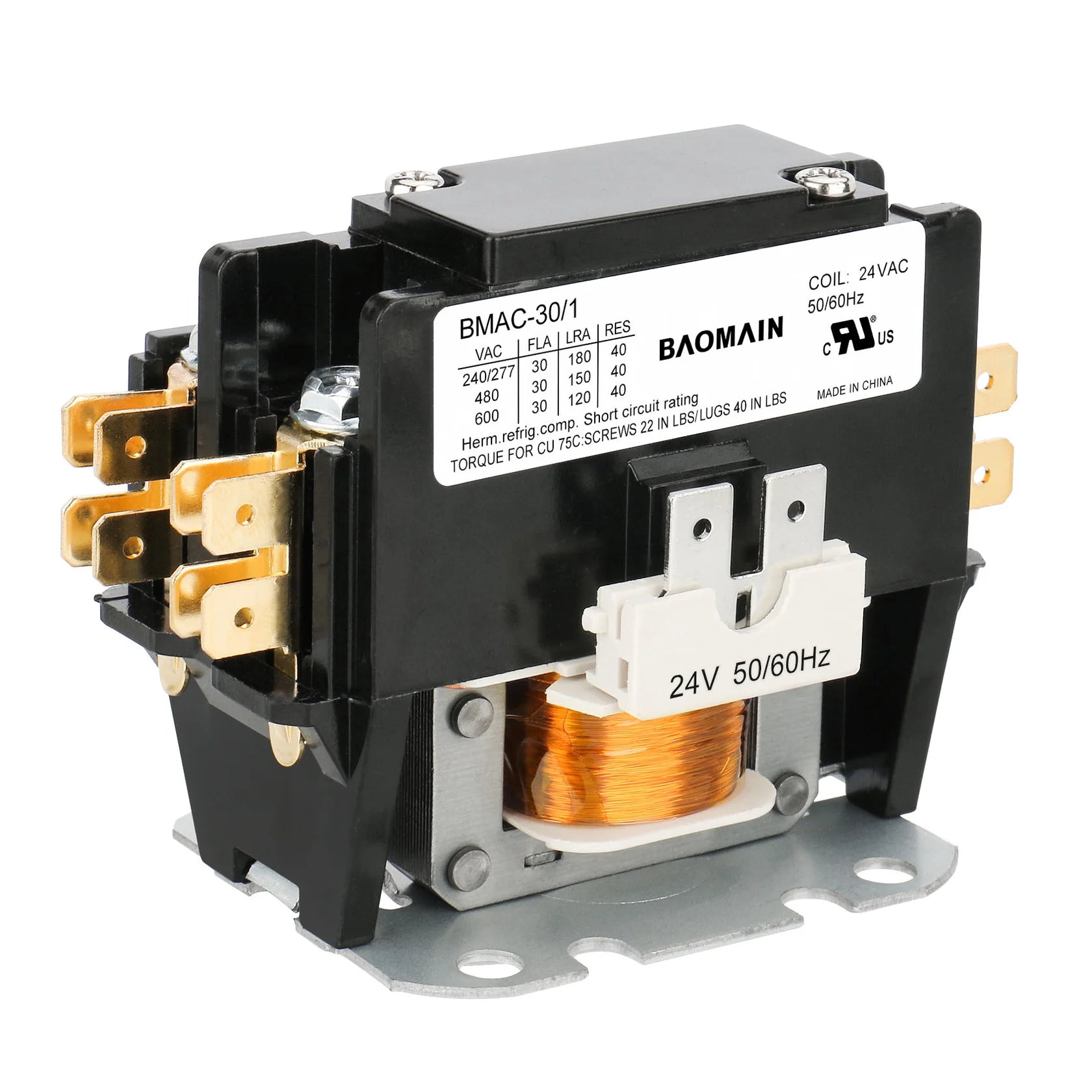

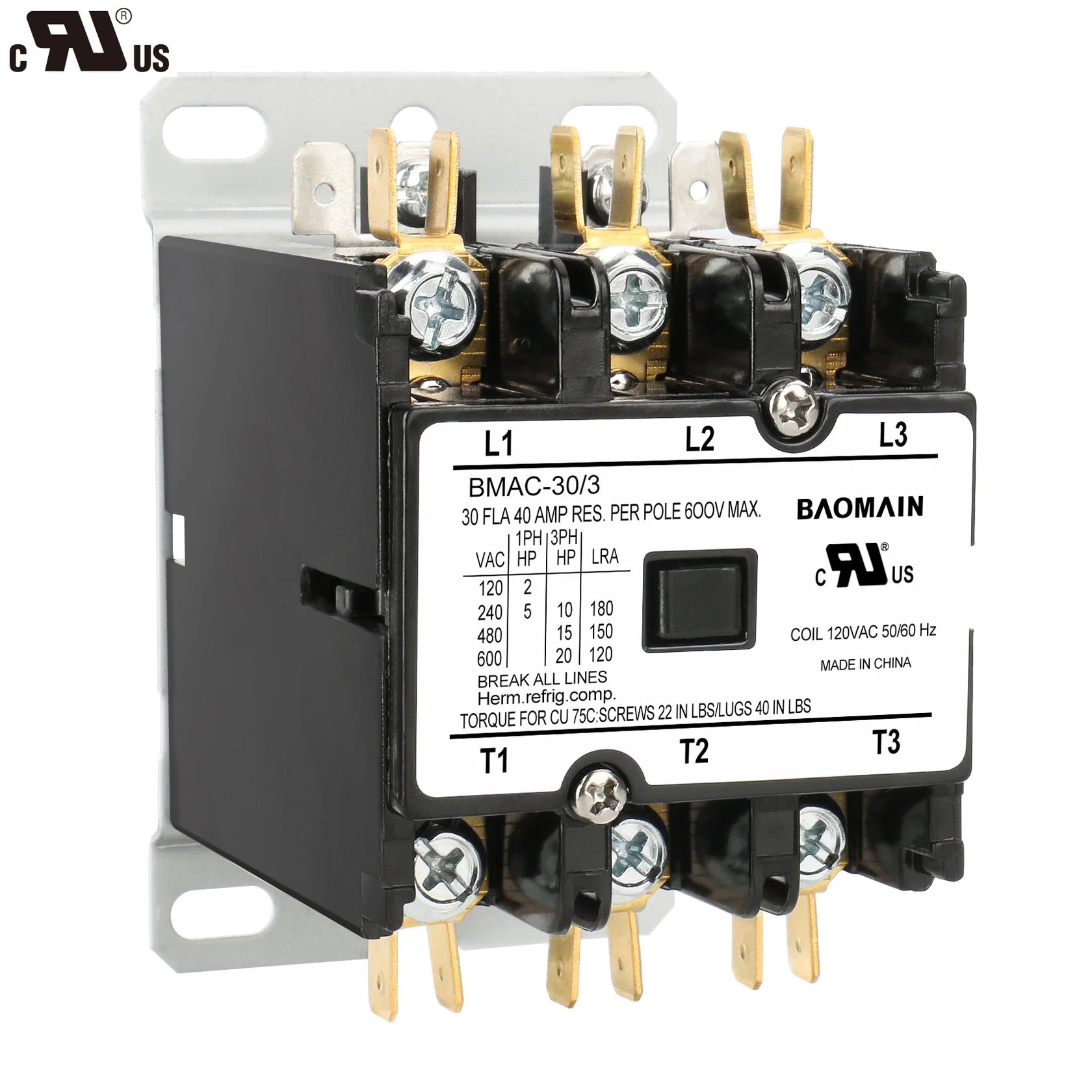

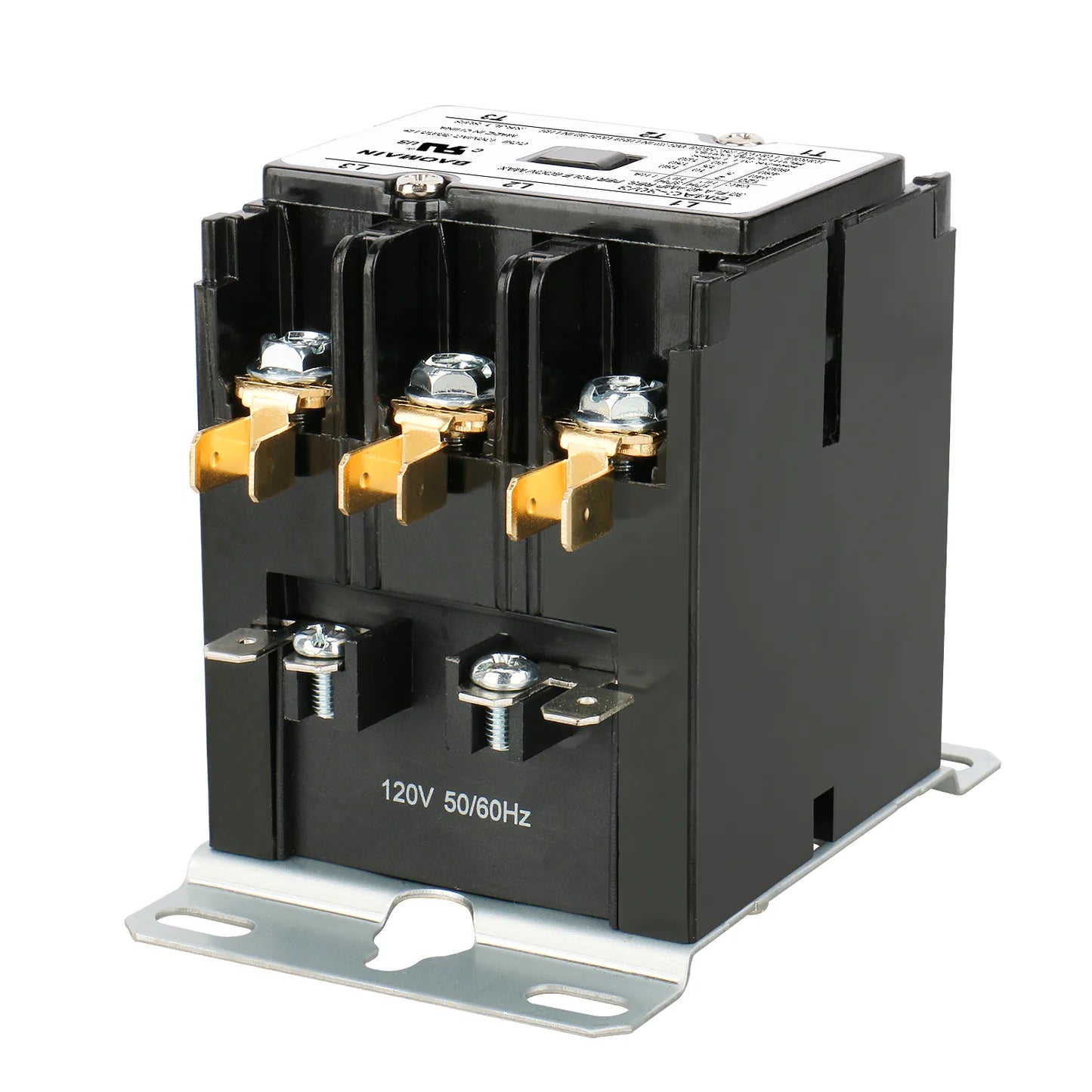

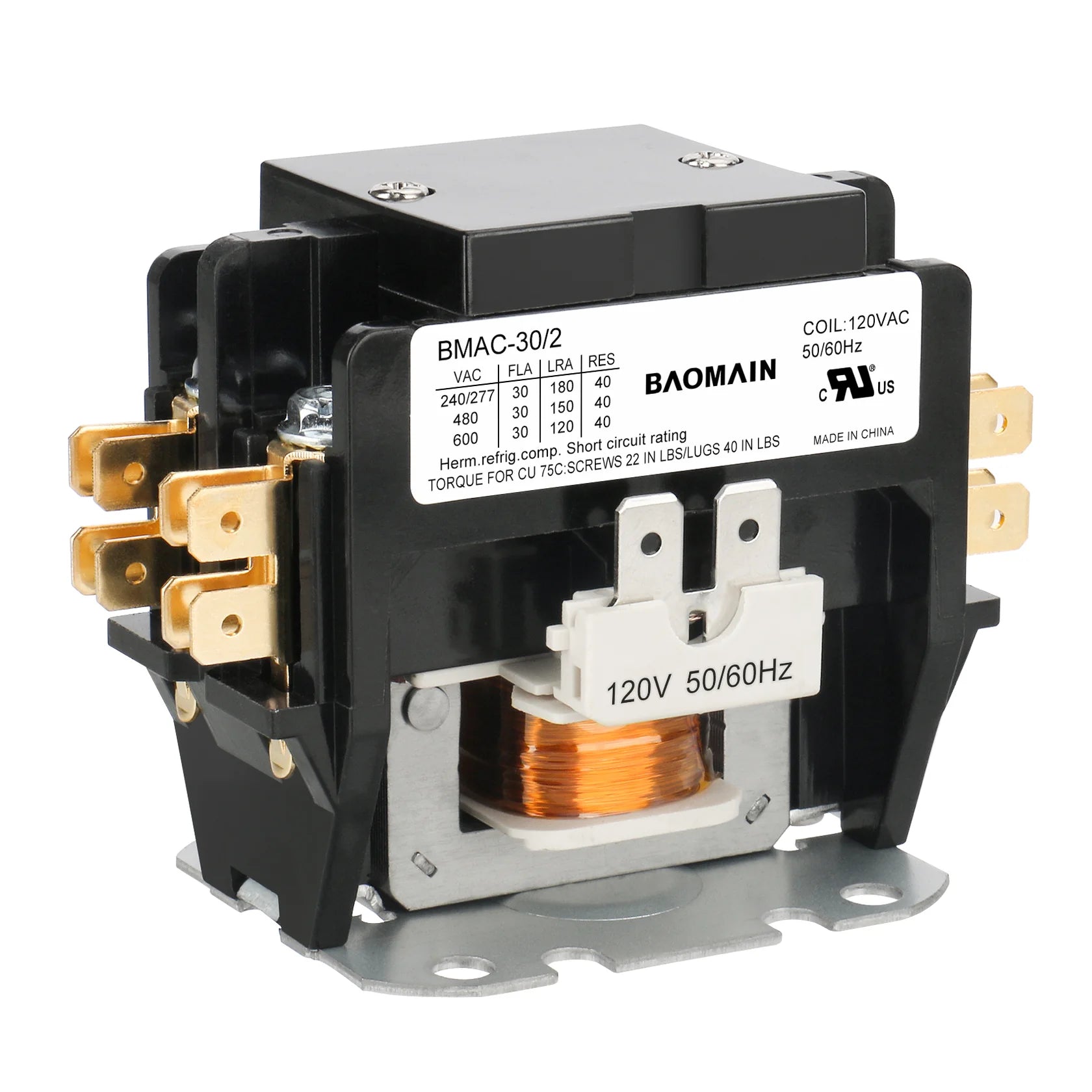

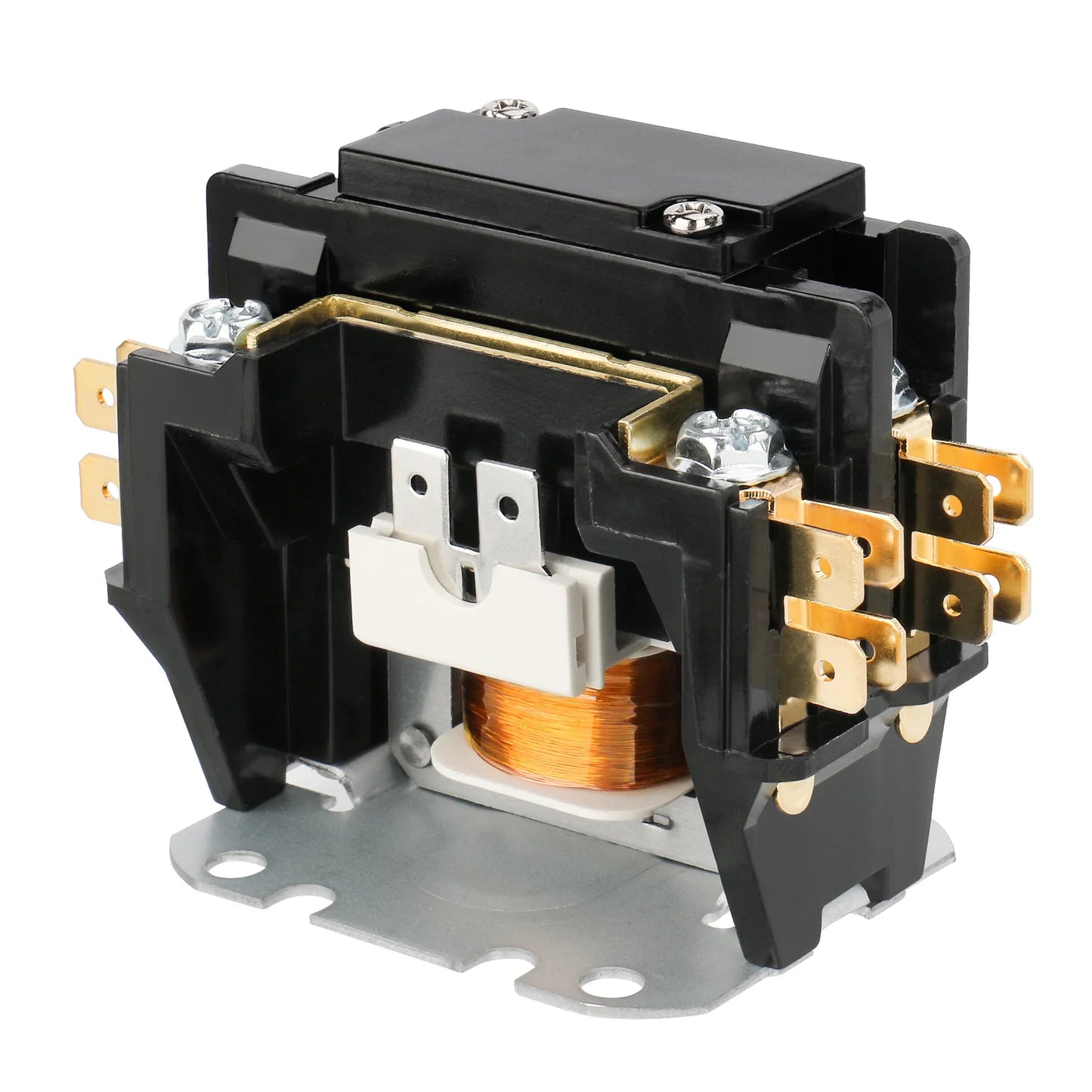

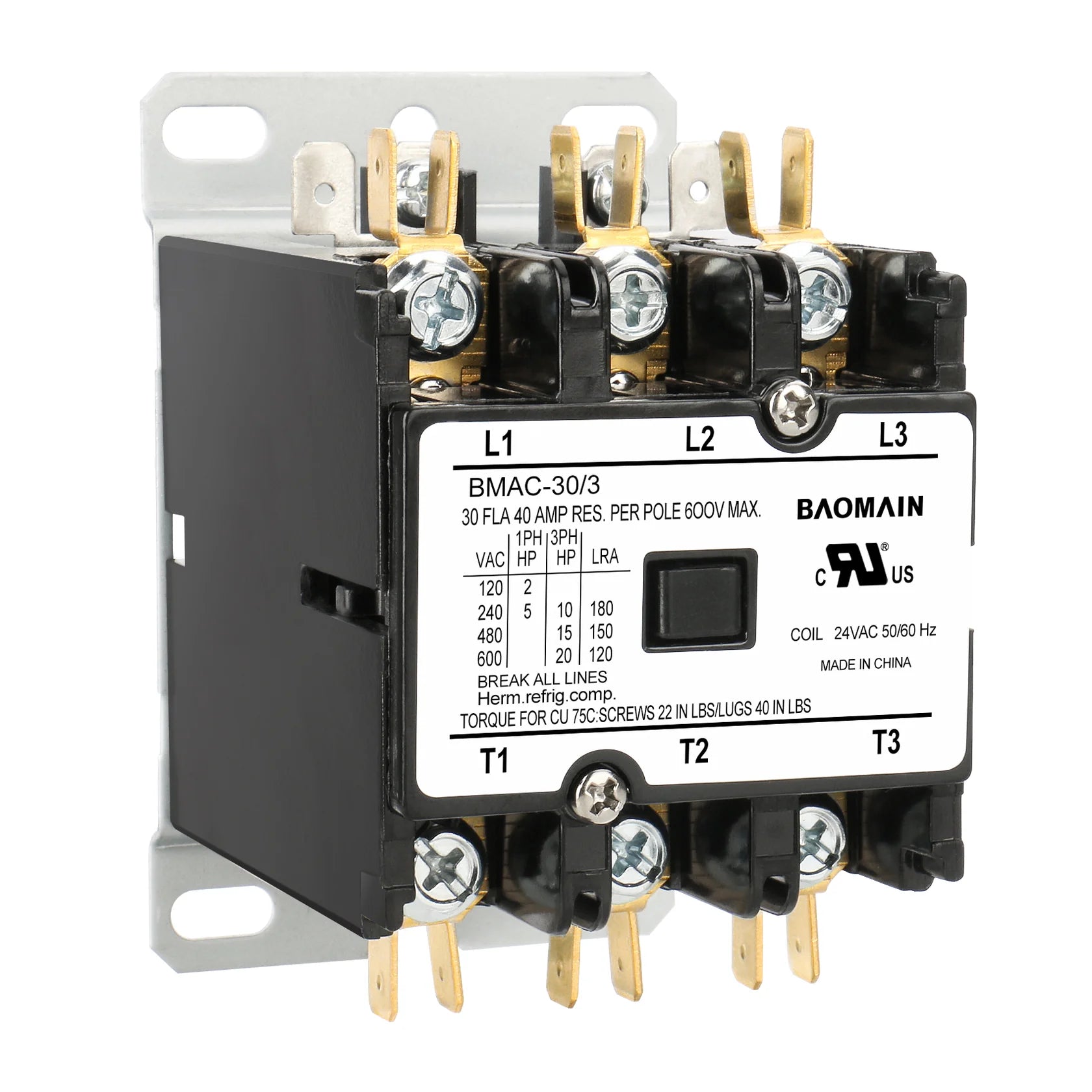

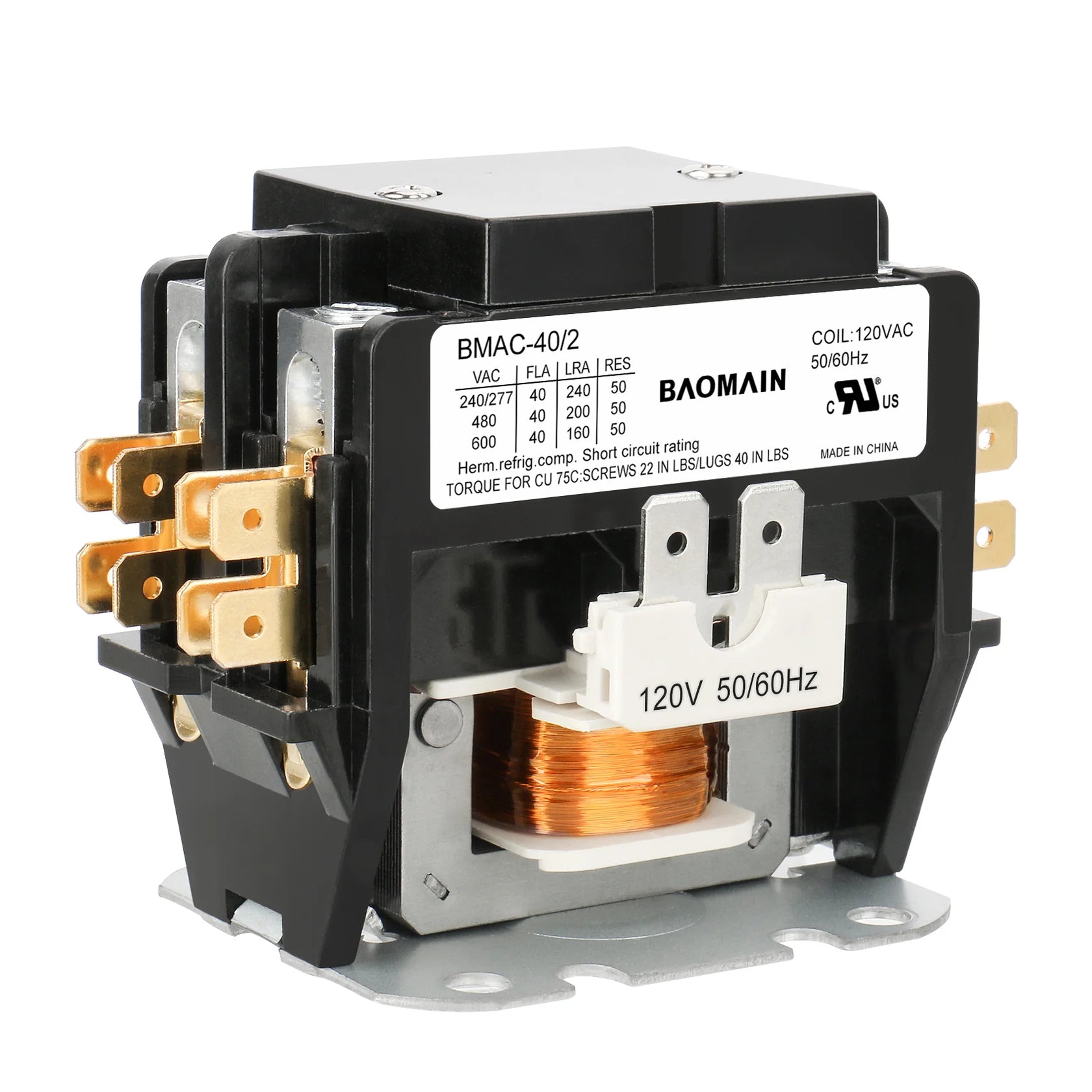

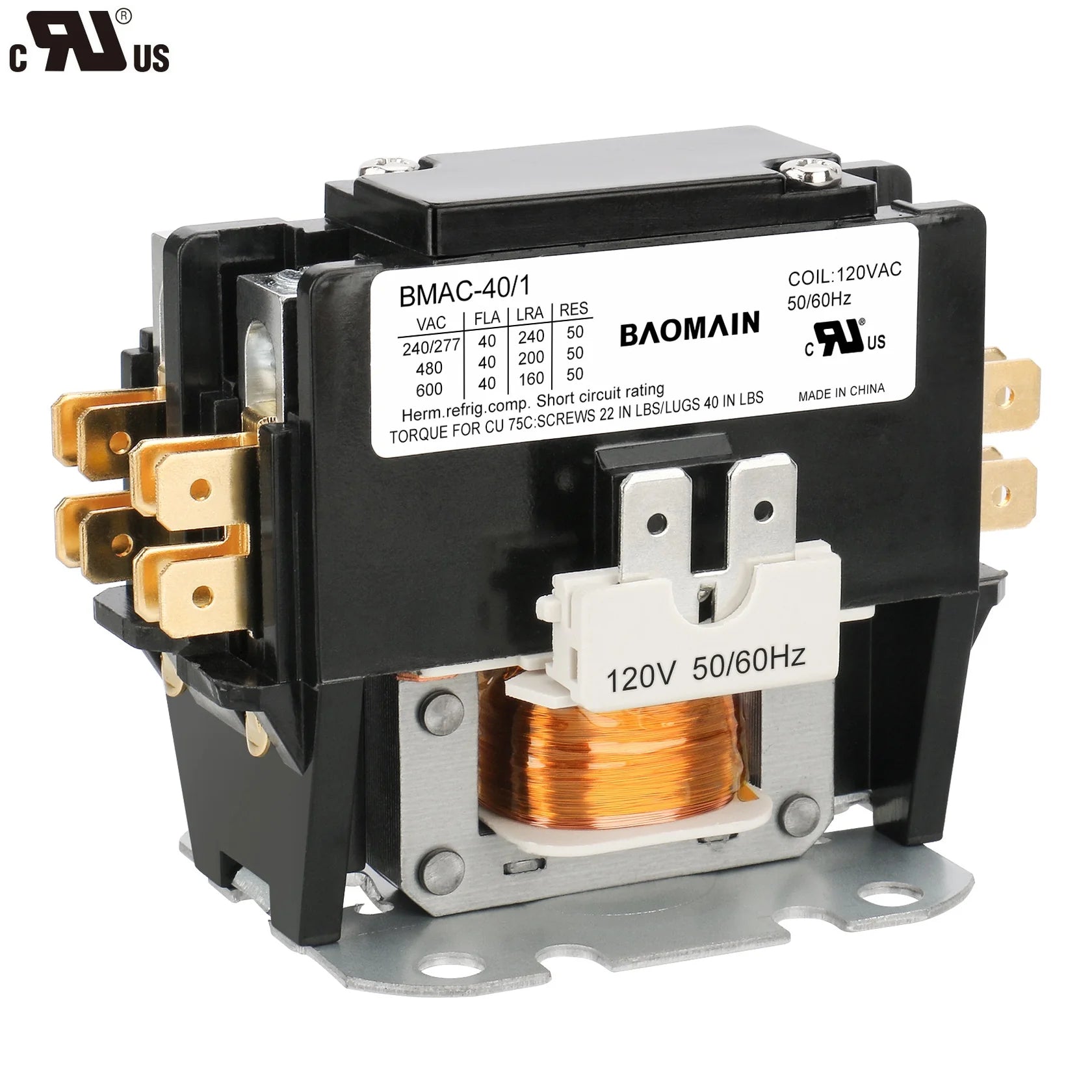

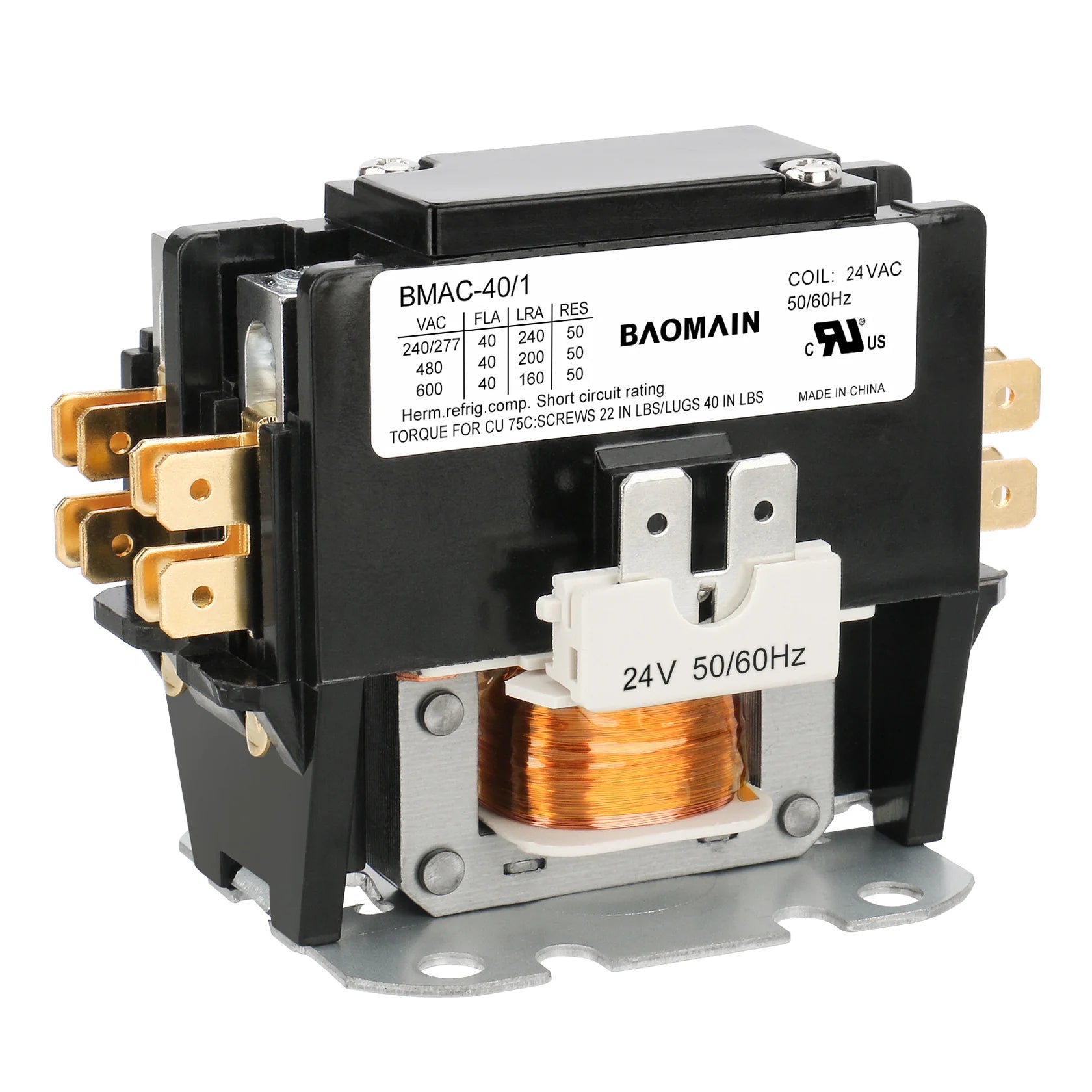

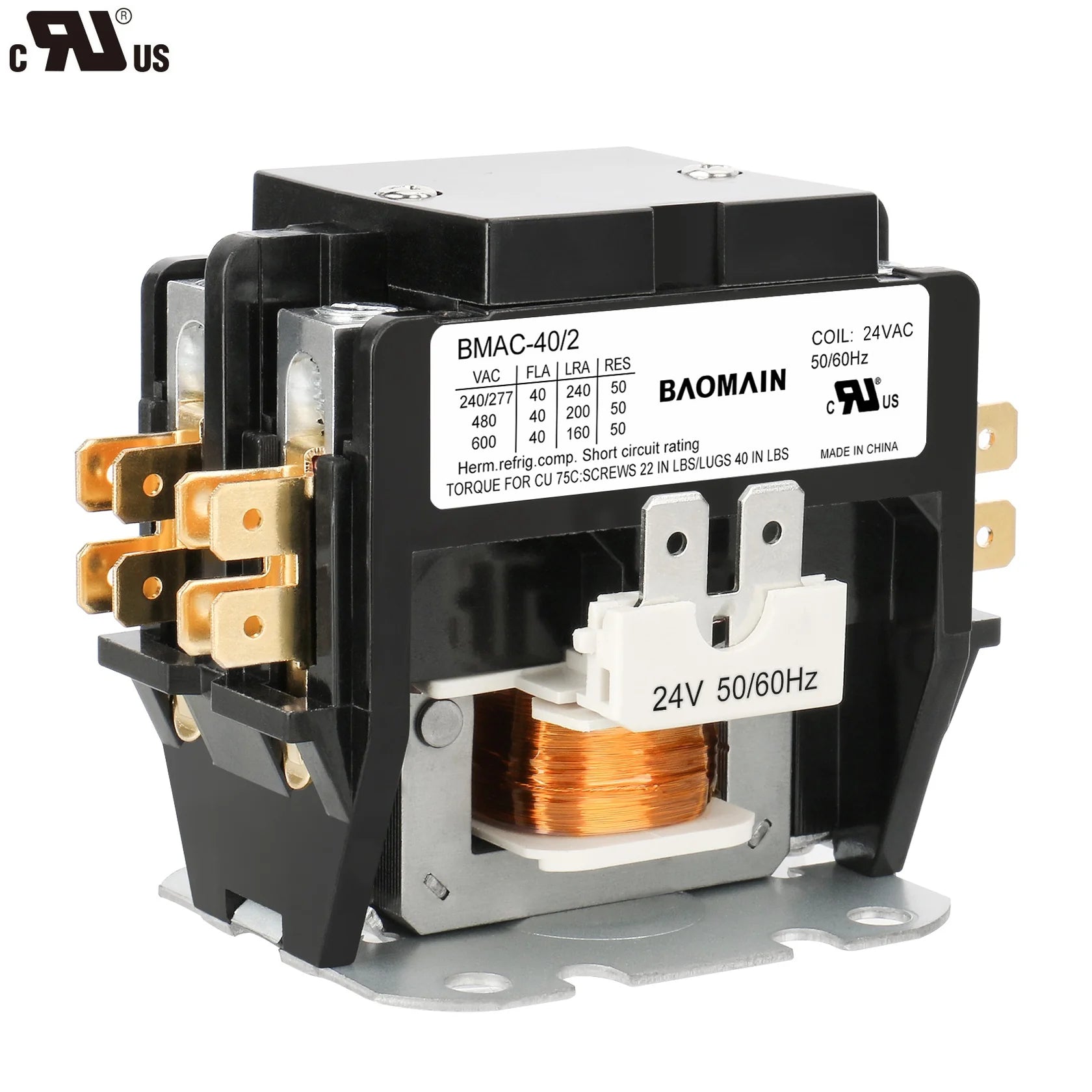

Baomain HVAC AC Contactor, BMAC Series Heavy Duty Air Conditioner Condenser Compressor Contactor, HVAC Contactors Replacement

Description:

Product Type	HVAC AC Contactor
Poles	1P/2P/3P
Rated Current (FLA)	30 Amp/40Amp
Resistive (RES)	40 Amps
Locked Rotor Amps (LRA)	180/150/120
Coil Voltage	120VAC/24VAC
AC Frequency	50/60 Hz
Max.Withstand Voltage	600 VAC

Terminal Size	1/4 Inch
Line & Load Terminals	Box Lug #10-32
Recommended Wire Size	Box Lug16-8*AWG
Recommended Tightening Torque	Box Lug 22 In. lbs
Mechanical Life	1,000,000 Times
Electrical Life	250,000 Times
Temperature Range	-40°F~150°F
Certification	UL, CE
