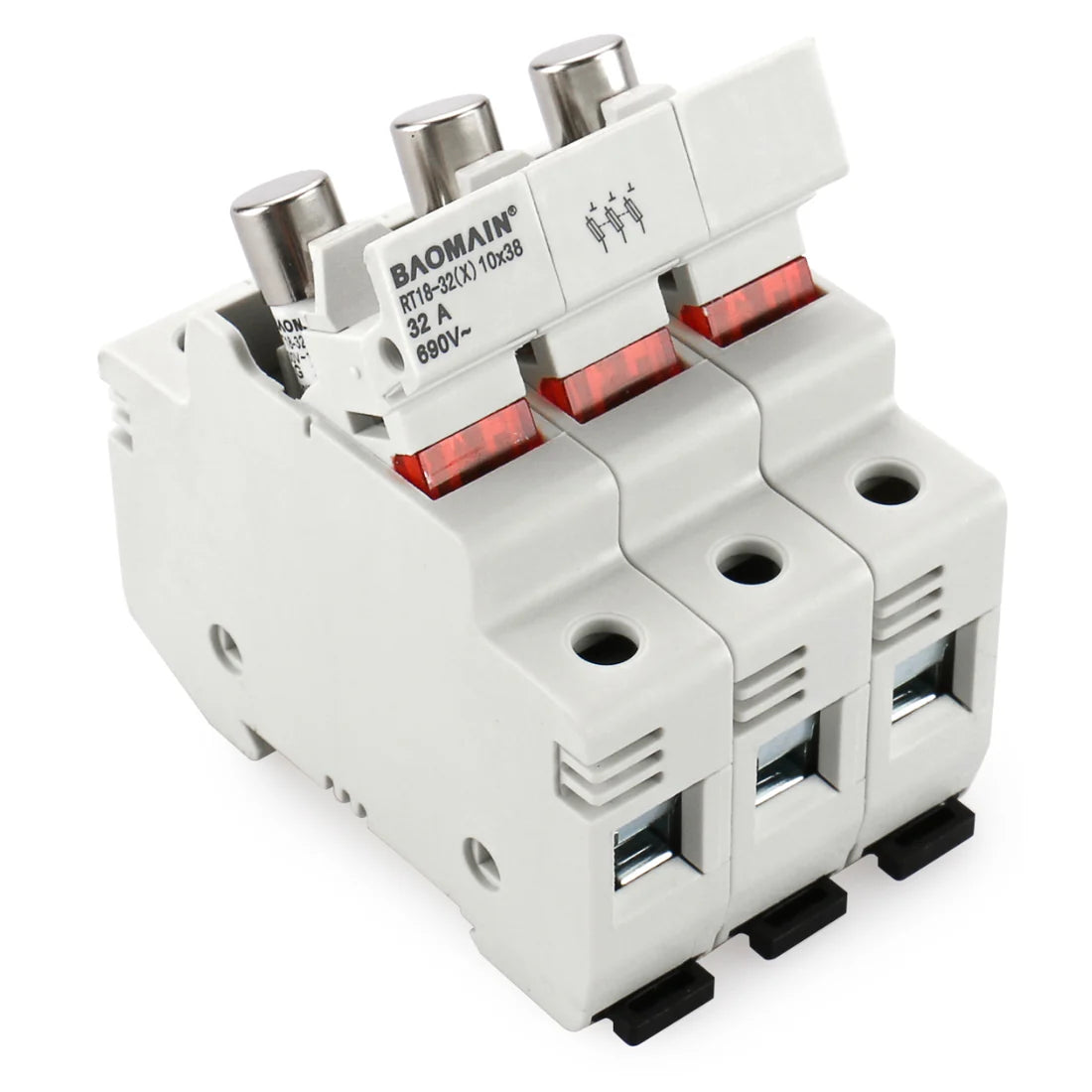

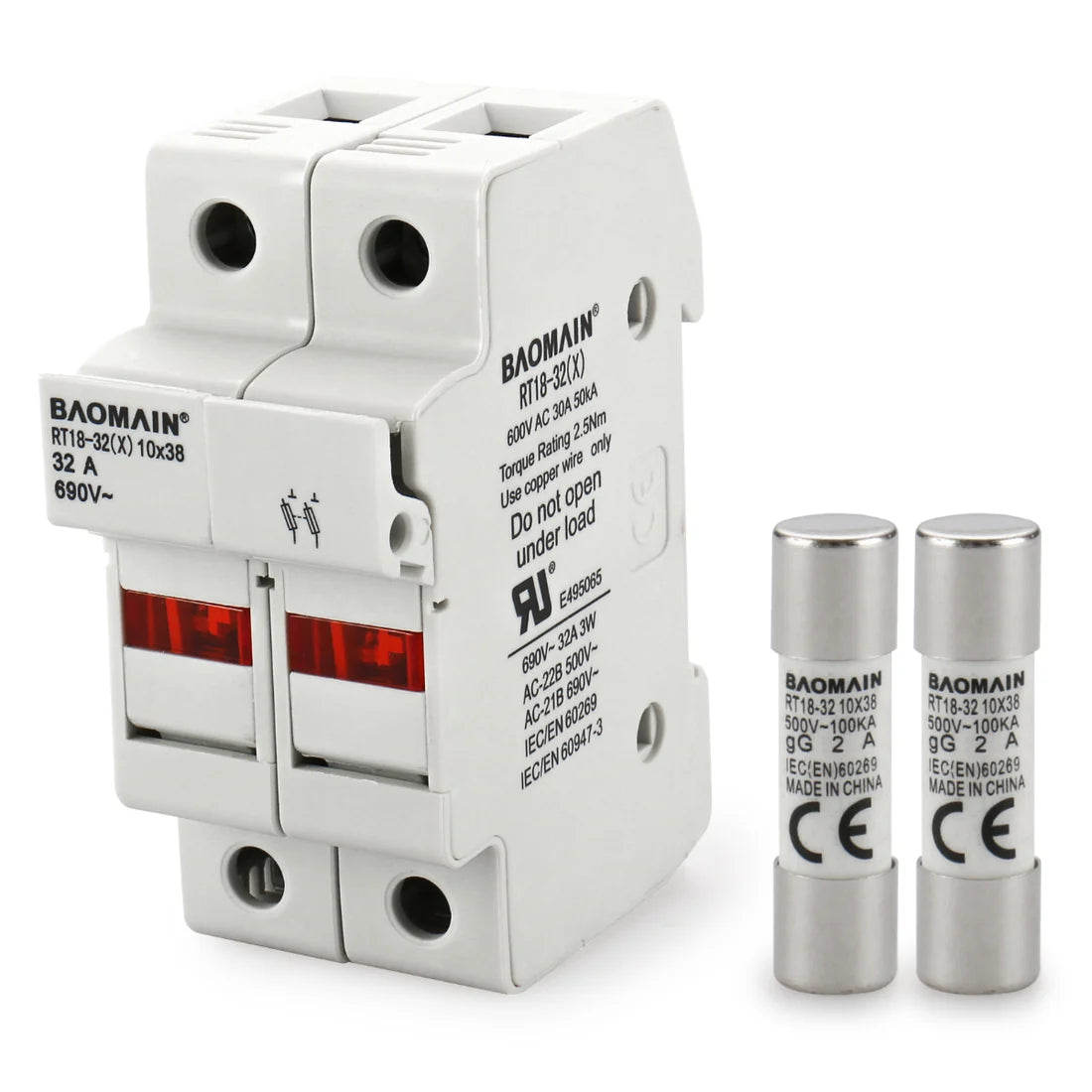

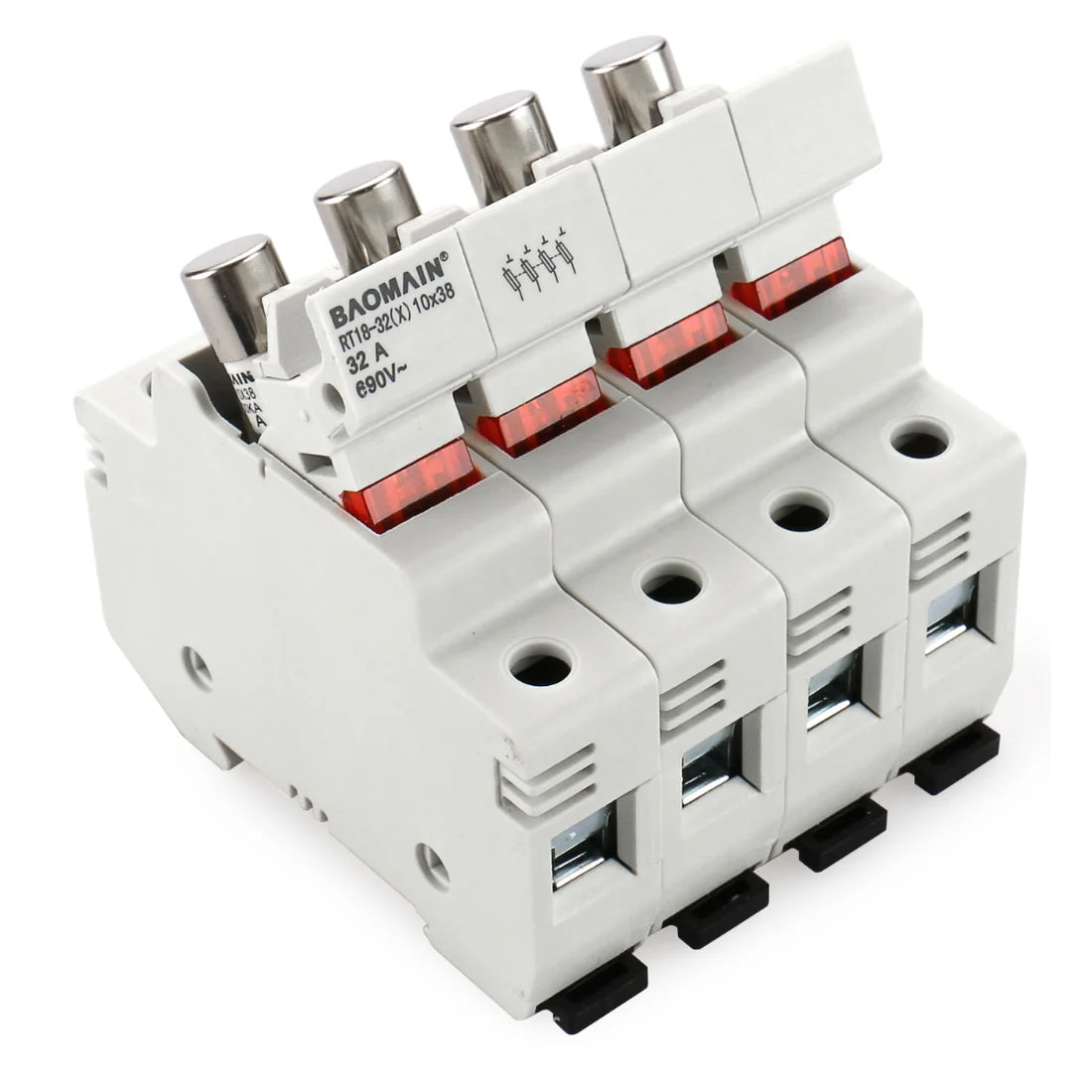

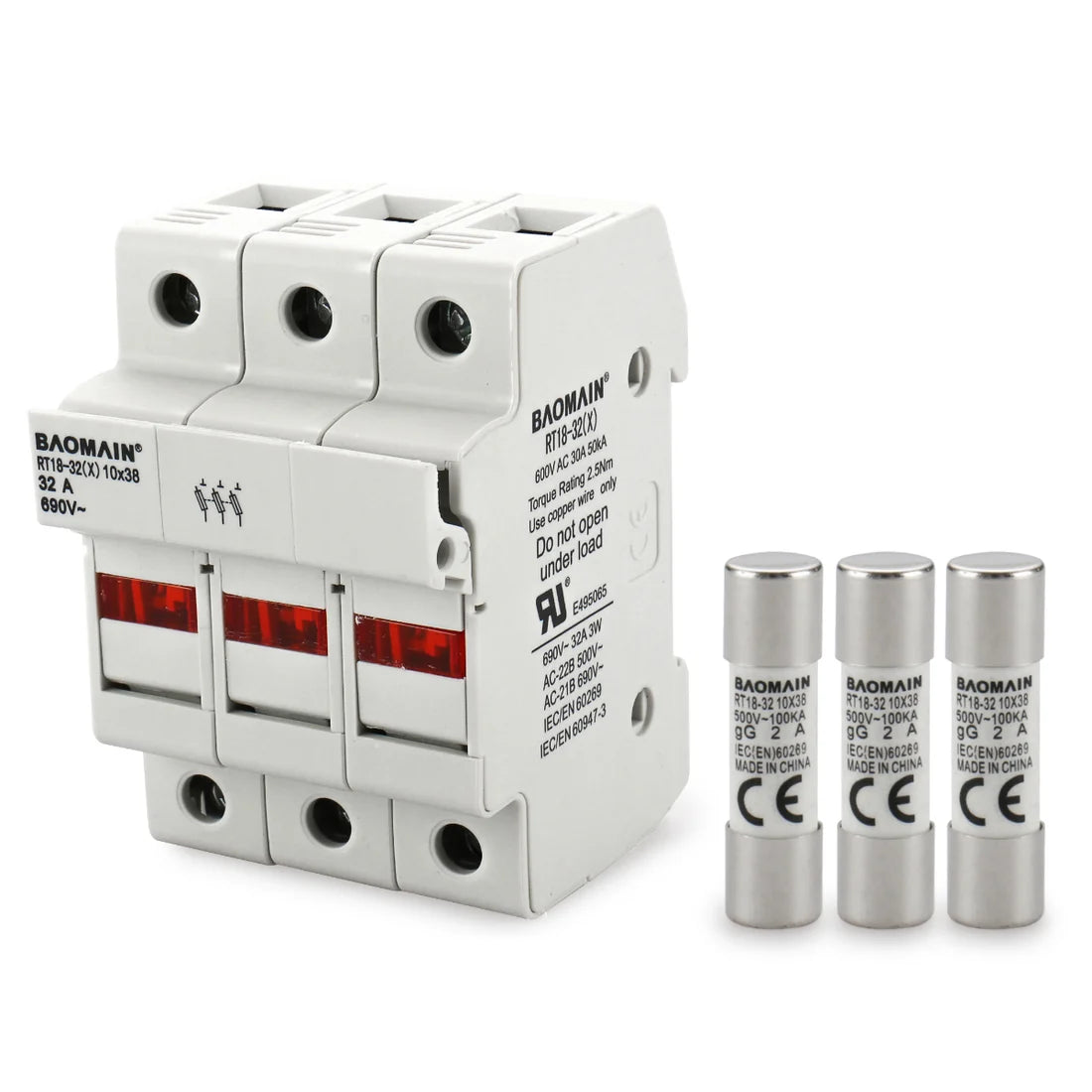

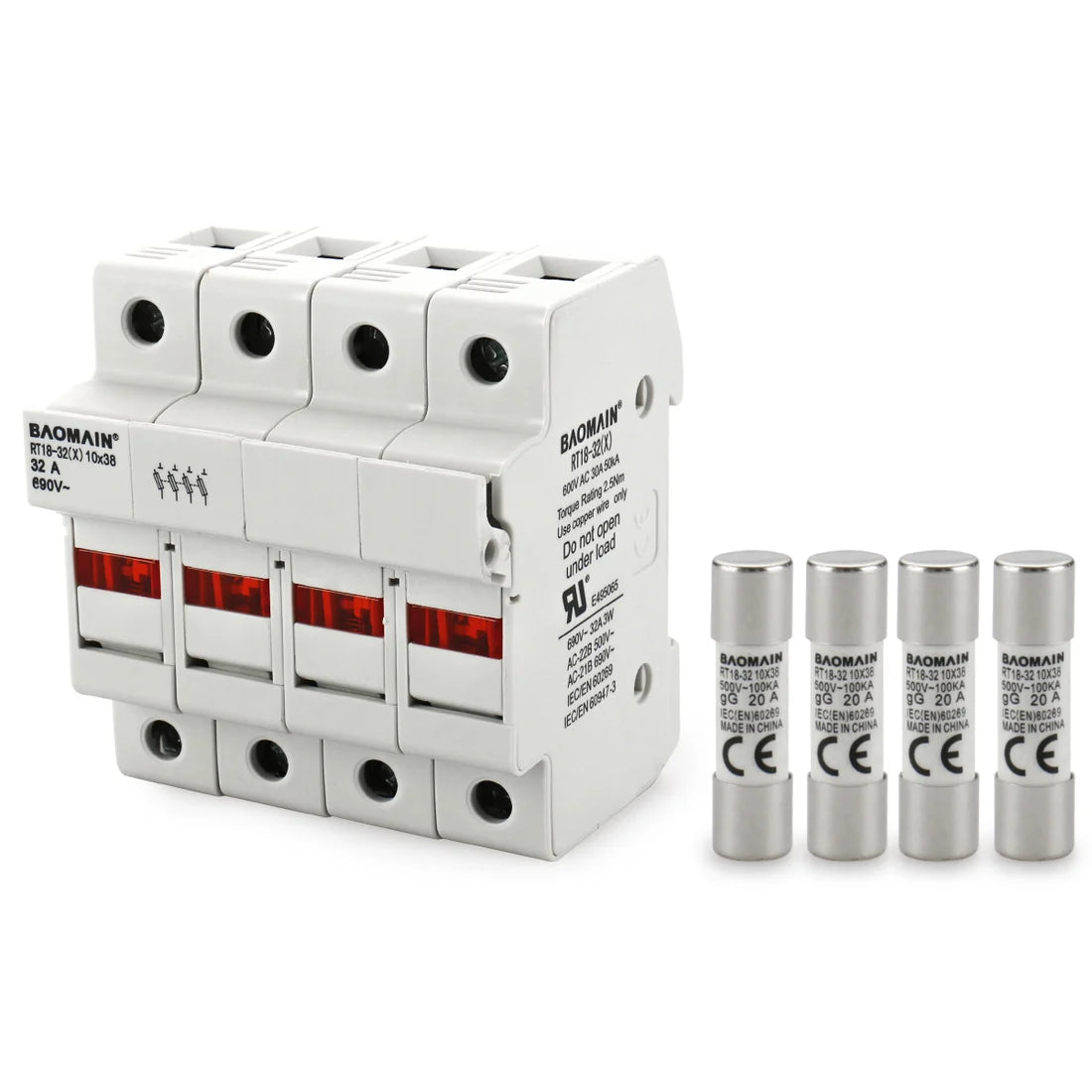

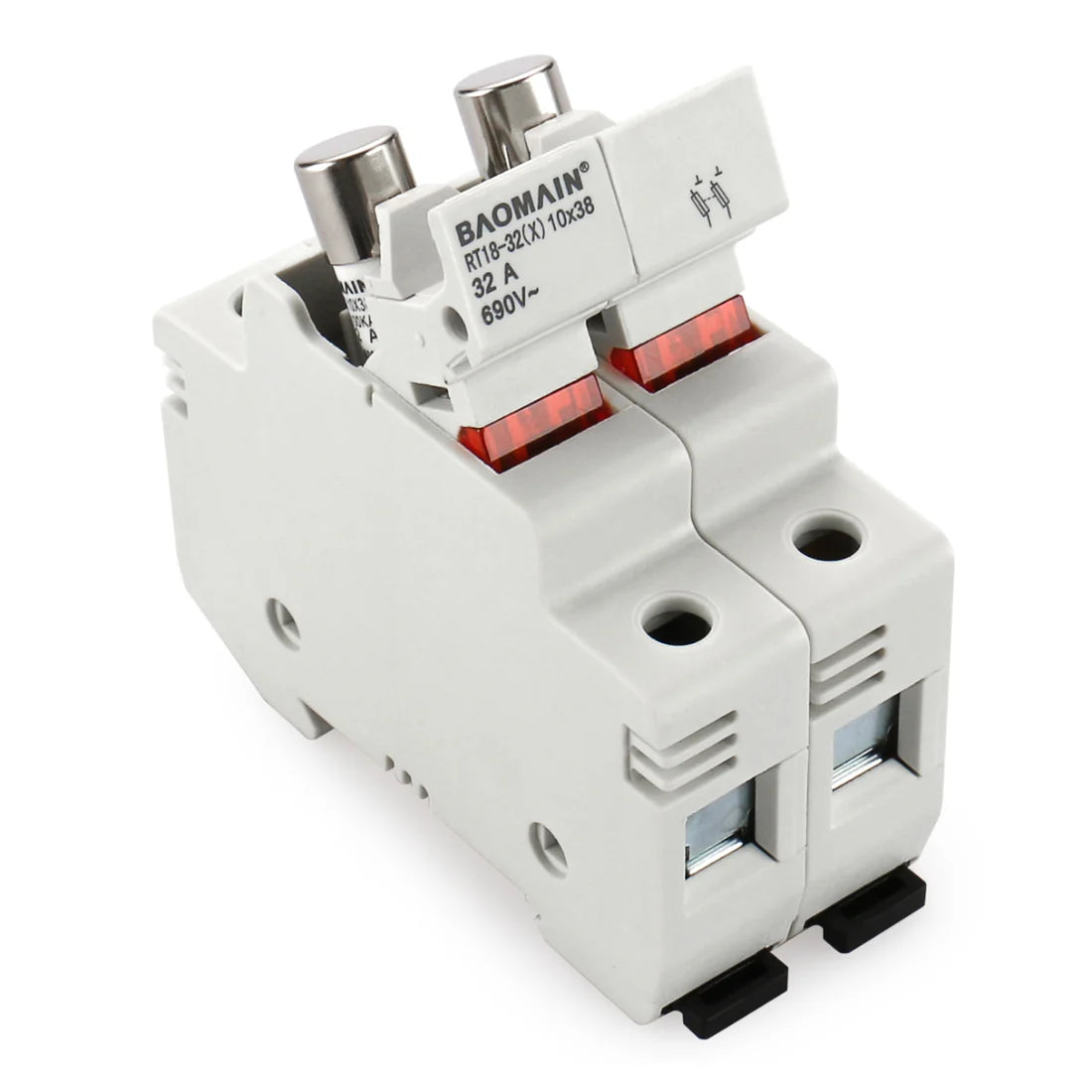

Baomain Cylindrical Fuse Holder RT18-32(X) 10mm X 38mm Fuse Base DIN Rail Mount CE&UR Listed

Description:

• These fuse holders are supporters for fuses with size up to 10×38mm.
• They are capable of working under heat caused by rated current and expected short impacting current up to 100KA.
• It can also function as a fuse disconnecting switch by multi-phase combination.
• There are two in/out lines at the RT18N fuse base, providing a power cut function.
• The RT18L type has a safety lock to lock the fuse carrier when disconnected to avoid wrong operation;
• it can also be equipped with an indicator, which goes on when the fuse linke breaks.
• Rated insulate voltage up to 690V; Working frequency 50Hz AC
• Conventional free air thermal current up to 125A
• Package Content: RT18-32 Holder + No of Fuses (RT18-32)
