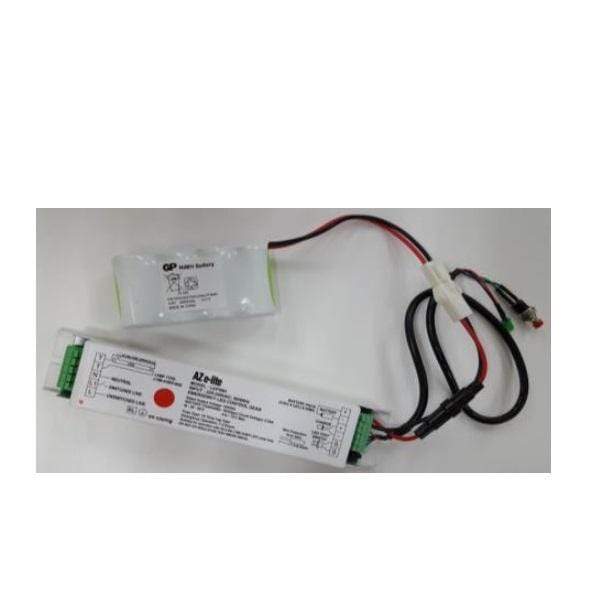

AZTECH AZCEL E-PACK With Battery FP
AZTECH AZCEL E-PACK With Battery FP
SKU:LEP50H
Couldn't load pickup availability
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
Contact Us
Contact Us
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
Share
Project Name:
Model No.
LEP50H
Type:
Emergency LED Control Gear
An emergency LED control gear which adds emergency lighting functionality to the LT8B-EP T8 tube series when installed together.
Technical Specifications
Operating Input Voltage
220 – 240 Vac
Output Voltage
6 Vdc (Open Circuit Voltage at AC) 105 Vdc (Battery Mode)
Operating Freq.
50/ 60 Hz
Battery Charging Current
550 mA
Battery Discharge Current
700mA
Supply Current
90 - 120 mA
Low Voltage Cut-Off Isolated Battery Charging Supply
Protection System
Voltage Constant Battery Status Monitoring Basis Insulation.
Operating
20 - 50 ºC > 2 hours Battery Discharge
Temperature
< 20 ºC > 1 hours Battery Discharge
Dimension
209 (L) x 39 (W) x 28 (H) mm
Power Charging Time
< 10 hours (4.8 V/ 2200 mAh Battery Pack)
Battery Discharge Time
> 2 hours (4.8 V/ 2200 mAh Battery Pack)
Battery Pack
Technology Of Battery
Rechargeable
Type Designation
NiMH
Capacity
2200 mAh
Voltage
4.8 V (Typical)
Maximum Charge Current
0.25 C
Minimum Charge Current
0.005 C
Charge Voltage Limits
5.8 V (max.)
Maximum Discharge Current
0.3 C
Maximum Discharge Current
0.1 C
DischargeVoltage Limits
3.2 V (min)
Temperature Rating
0 - 50 ºC
