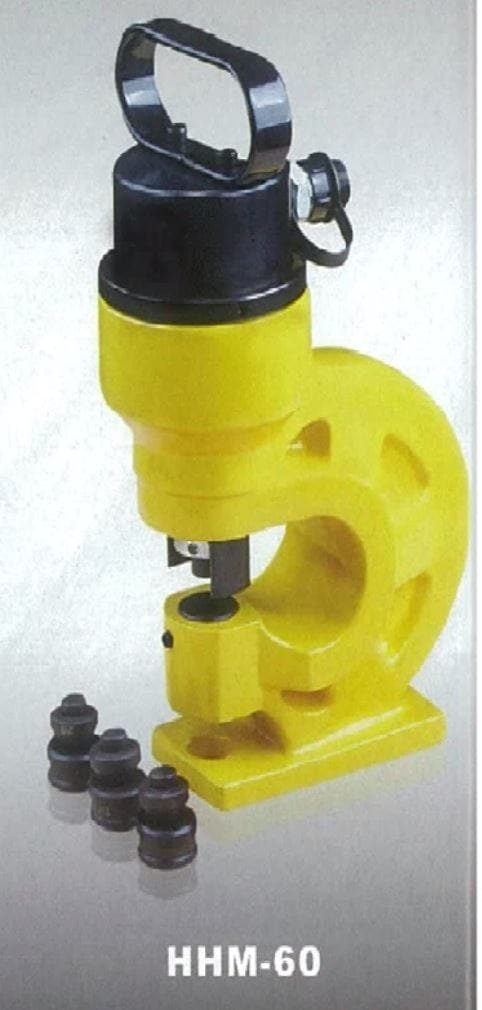

Aiko Hydraulic Busbar Punching Tool for 6mm Iron Sheet (Puncher) | Model : HHM-60

Aiko Hydraulic Busbar Punching Tool for 6mm Iron Sheet (Puncher) | Model : HHM-60 Features :  Suitable for punching holes on L and H shape iron plates, copper and aluminium busbars  Flat pedestal to provide steadiness in operation  Punch dies made of high carbon tungsten steel and not easy to wear off.  Specifications :  Tonnage : 31 T Bending Formers Diameters :  3/8" (11.1mm) x 1  1/2" (14.3mm) x 1 5/8" (17.5mm) x 1 3/4" (20.6mm) x 1 Max. Punchable Thickness :  For Iron Sheet : 6mm  For Copper Busbar : 10mm  Throat Thickness : 70mm  Weight : 21.5kg  Dimension (L x W x H) : 400 x 250 x 150mm
