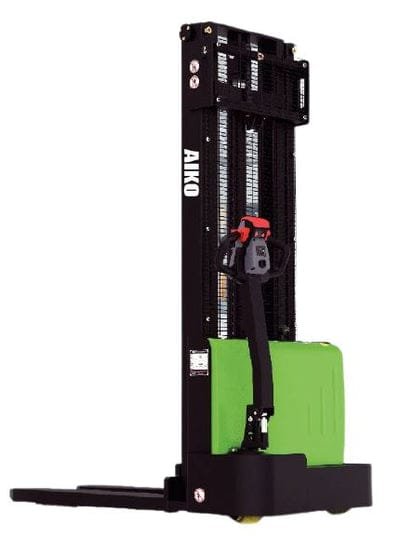

Aiko 3m Full Electrical Self-Propelled 1.5 Ton Stacker | Model : PT-AIKO152-3

Aiko 3m 1.5 Ton Full Electrical Self-Propelled 1.5 Ton Stacker | Model : PT-AIKO152-3 Features :  Strong Chassis The side impact beam, plates, and boxes make the chassis stronger and can greatly reduce stress and deformation caused by heavy load. Rigid mast  The rigidity of the mast is greatly improved by its beam structure to provide smooth lifting and stacking for daily operation. Easy operation  The extra - long and offset tiller with the crawl speed button provides AIKO152 a better visibility and nimble maneuverability when operating in tight space. Efficient hydraulic system  High quality hydraulic pump ensures very little noise , maximum efficiency , durability and shortens lifting time. Specifications :  Distinguishing mark Manufacturer : Aiko Model designation : Aiko 152 Drive unit : Electric  Operator type : Pedestrian Rated capacity : 1500 kg Load Center Distance : 500 mm Load Distance : 798 mm Wheelbase : 1212 mm Weight  Service Weight (include battery) : 595 kg Axle loading , laden driving side/ loading side : 825/1270 kg Axle loading , unladen driving side / loading side : 450/145 kg Battery Continuous running time : 4 hours Intermittent running time : Up to 24 hours Charging time : 2 hours Types,  Chassis Tyre type driving wheels / loading wheels : PU/PU Tyre Size / Driving wheels (Diameter x Width) : Φ210 x 70 mm Tyre Size / Driving wheels (Diameter x Width) : Φ74 x 72 mm Tyre Size / Caster wheels (Diameter x Width) : Φ130 x 55 mm Wheels, number driving, caster/loading ( x=drive wheels) : 1 + 1/4 Track width, front, driving side : 531 mm Track width, rear, loading side : 405 mm Dimensions  Height, mast lowered : 2106 mm Lift Height : 3020 mm Height, mast extended : 3571 mm  Height draw bar in driving position min./mzx : 750/1340 mm Lowered height : 85 mm Overall length : 1713 mm Length to face of forks : 563 mm Overall width : 792 mm  Fork dimensions : 60/170/1150 mm Fork carriage width : 680/770 mm Ground clearance, center of wheelbase : 25 mm Aisle width for pallet 100 x 1200 cross ways : 2224 mm Aisle width for pallet 800 x 1200 length ways : 2158 mm Turning radius : 1390 mm Performance data Travel Speed, laden/ unladen : 4.2/4.5 km/h Lifting Speed, laden/ unladen : 0.08/0.14 m/s Lowering speed, laden/ unladen : 0.11/0.10 m/s Max. grade ability, laden/ unladen : 3/10 %  Service brake type : Electromagnetic  Electric - engine  Drive motor rating S2 60 min : 0.75 kW Lift motor rating at S3 15 % : 2.2 kW The maximum allowed size battery : 260 x 165 x 210 mm Battery voltage/ nominal capacity K5 : 2 x 12/85 V/Ah Batter weight : 2 x 24 kg Addition data  Type of drive control : DC Steerin type : Mechanical Sound pressure level at the driver's ear : 74 dB(A) *Please take note only for open pallet
