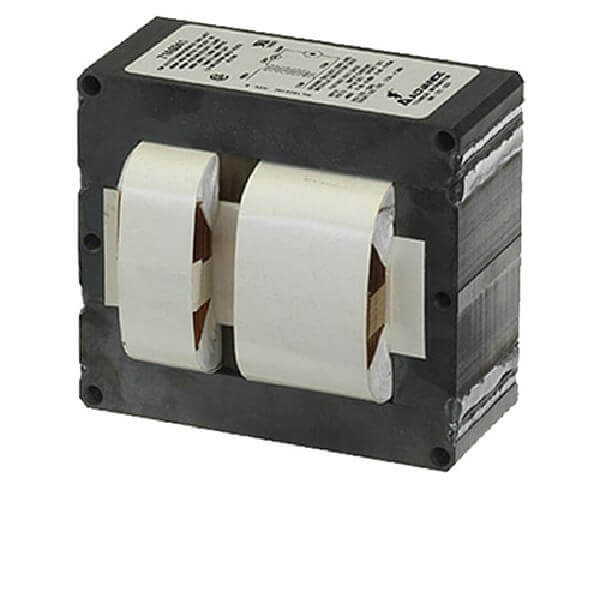

ADVANCE BALLAST, Metal-Halide Mercury 71A55N0500, 120/220/240V, 50HZ,150W/175W C/W Capacitor
ADVANCE BALLAST, Metal-Halide Mercury 71A55N0500, 120/220/240V, 50HZ,150W/175W C/W Capacitor
SKU SKU:781087018521
Regular price
$ 293.00 SGD
Regular price
$ 293.00 SGD
Sale price
$ 293.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Technical Details:
| 71A55N0500 |
| The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire |
| The core and coil also forms the nucleus of Philips® advance five other ballast configurations |
| 12 uF capacitor |
| 1.5/0.8 A input current (open circuit), 1.5/0.8 A input current (starting), 2.5 to 3.7 A, 1.3 to 1.9 A input current (short circuit), 2/1.05 A input current (nominal) |
| 3 x 4 in (2 coil) core |
| 1.75 in Dia x 2.9 in H oval capacitor |
| Core and coil ballast with oil filled capacitor |
| UL insulation class H of 180 deg C |
Brand:Advance
Amperage Rating:2/1.05 A
Dimensions:3.95 in L x 4 in W x 2.8 in H
Frequency Rating:50 Hz
Lamp Type:HID Metal Halide
Lamp Wattage:175/150 W
Type:Magnetic
Voltage Rating:120/220/240 VAC
Wattage:210 W
Number of Lamps:1
Power Factor:0.9
Lamp Base Type:71A55N0
Start Type:Probe
Thermal Protection:Class P
Minimum Starting Temperature:-20 deg F
Dimmable:No
Ballast Factor:1
Ballast Grade:ANSI M57/M107
