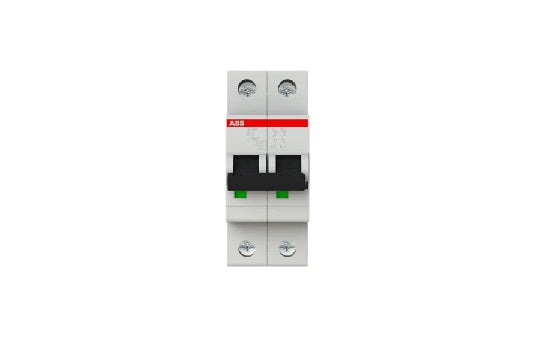

ABB System Pro M Compact S200 MCB 2P 6A Curve C 400V AC 6 kA Breaking Capacity

Datasheet:

Description:

System pro M compact S200 miniature circuit breakers are current limiting. They have
two different tripping mechanisms, the delayed thermal tripping mechanism for
overload protection and the electromechanic tripping mechanism for short circuit
protection. They are available in different characteristics (B,C,D,K,Z), configurations
(1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated
currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1,
IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial
applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50%.

Circular Value
Circular Design Design for Closing Resource Loops - Standard EN45555 - 87.8 %
Principles Recyclability
Rate
Offered with Extended Product Durability
Lifetime
End of Life Instructions 9AKK108468A3132
Eco Transparency
Environmental Product 9AKK108467A7832
Declaration - EPD
