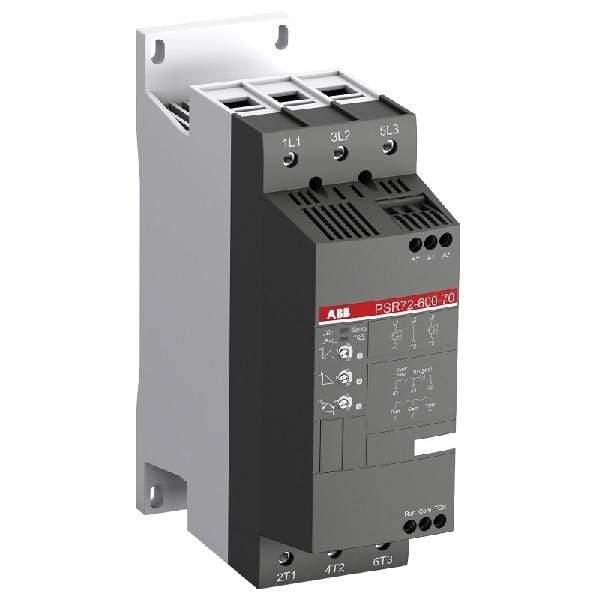

ABB PSR72-600-70 Softstarter

ABB PSR72-600-70 Softstarter

7320500362617

$ 1,272.00 SGD
$ 1,362.00 SGD $ 1,272.00 SGD
Sale Sold out
Shipping calculated at checkout.

Request For Quote

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

Contact Us

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

For the datasheet click here.

*Check stock before ordering lead time 5 days upon order confirmation*

PSR72-600-70

General Information

  • Global Commercial Alias:
    PSR72-600-70
  • Extended Product Type:
    PSR72-600-70
  • Product ID:
    1SFA896113R7000
  • ABB Type Designation:
    PSR72-600-70
  • EAN:
    7320500362617
  • Catalog Description:
    PSR72-600-70 Softstarter
  • Long Description:
    Softstarter PSR72-600-70 for max 600V main voltage and 100-240V 50/60Hz control supply voltage

Categories

  • Products » Drives » Softstarters » Softstarters » PSR Softstarters » PSR72
  • Products » Low Voltage Products and Systems » Control Products » Softstarters » Softstarters » PSR Softstarters » PSR72

  • PSR72-600-70 - image 0

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85044090

Popular Downloads

Dimensions

  • Product Net Width:
    70.000 mm
  • Product Net Height:
    220.000 mm
  • Product Net Depth / Length:
    180.000 mm
  • Product Net Weight:
    2.27 kg

Technical

  • Rated Operational Voltage:
    208 … 600 V AC
  • Rated Control Supply Voltage (Us):
    100 ... 240 V AC
  • Rated Control Circuit Voltage (Uc):
    50 Hz / 60 Hz 100 ... 240 V AC
  • Rated Frequency (f):
    Main Circuit 50/60 Hz
    Control Supply 50/60 Hz
  • Rated Operational Power - In-Line Connection (Pe):
    (230 V) 22 kW
    (400 V) 37 kW
    (500 V) 45 kW
  • Rated Operational Current - In-Line Connection (Ie):
    72 A
  • Service Factor Percentage:
    100 %
  • Overload Protection:
    Recommended MS495 57 … 75
  • Integrated Electronic Overload:
    No
  • Adjustable Rated Motor Current Ie:
    No %
  • Starting Capacity at Maximum Rated Current Ie:
    4xIe for 6s
  • Ramp Time:
    During Start 1 ... 10 second [unit of time]
    During Stop 0 ... 20 second [unit of time]
  • Initial Voltage During Start:
    40 ... 70 %
  • Step Down Voltage Special Ramp:
    100 ... 60 %
  • Current Limit Function:
    No
  • Switch for Inside Delta Connection:
    No
  • Run Signal Relay:
    Yes
  • By-pass Signal Relay:
    Yes
  • Fault Signal Relay:
    No
  • Overload Signal Relay:
    No
  • Signal indication completed start ramp (LED):
    Green
  • Signal indication ready to start/standby ON (LED):
    Green
  • Signal indication running R (LED):
    Green
  • Signal indication ramping up/down (LED):
    Green
  • Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
    10
  • Communication:
    FiledBusPlug(Optional)
  • Degree of Protection:
    acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
  • Terminal Type:
    Main Circuit: Bars
  • Connecting Capacity Main Circuit:
    Rigid 1x10 ... 95 mm²
    Rigid 2x6 ... 35 mm²
  • Connecting Capacity Control Circuit:
    Rigid 1 x 0.75 ... 2.5 mm²
    Rigid 2 x 0.75 ... 1.5 mm²
  • Connecting Capacity Supply Circuit:
    Rigid 1x0.75 ... 2.5 mm²
    Rigid 2x0.75 ... 1.5 mm²
  • Tightening Torque:
    Main Circuit 8 N·m
    Supply Circuit 0.6 N·m
    Control Circuit 0.6 N·m
  • Product Main Type:
    PSR72

Environmental

  • Ambient Air Temperature:
    Storage -40 ... +70 °C
    Operation -25 ... +60 °C
  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Certificates and Declarations (Document Number)

Container Information

  • Package Level 1 Width:
    86 mm
  • Package Level 1 Depth / Length:
    230 mm
  • Package Level 1 Height:
    195 mm
  • Package Level 1 Gross Weight:
    2.47 kg
  • Package Level 1 EAN:
    7320500362617
  • Package Level 1 Units:
    1 piece
  • Package Level 2 Units:
    1 piece

Classifications

  • Object Classification Code:
    Q
  • ETIM 4:
    EC002572 - Electronic motor control and protection device
  • ETIM 5:
    EC002572 - Electronic motor control and protection device
  • ETIM 6:
    EC002572 - Motor management device
  • UNSPSC:
    39121521
