ABB AF146-30-11-13 Block Contactor

ABB AF146-30-11-13 Block Contactor

7320500476994

$ 415.00 SGD
$ 445.00 SGD $ 415.00 SGD
Sale Sold out
Shipping calculated at checkout.

Request A Quotation

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

Contact Us

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

Technical Details

Datasheet

*Check stock before ordering. Lead time 3-5 working days*

AF146-30-11-13

General Information

  • Extended Product Type:
    ย AF146-30-11-13
  • Product ID:
    1SFL467001R1311
  • EAN:
    7320500476994
  • Catalog Description:
    AF146-30-11-13 Contactor
  • Long Description:
    The AF146-30-11-13 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and double clamp, controlling motors up to 75 kW / 400 V AC (AC-3) or 100 hp / 480 V UL and switching power circuits up to 225 A (AC-1) or 200 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Categories

  • Products ยป Low Voltage Products and Systems ยป Control Products ยป Contactors ยป Block Contactors

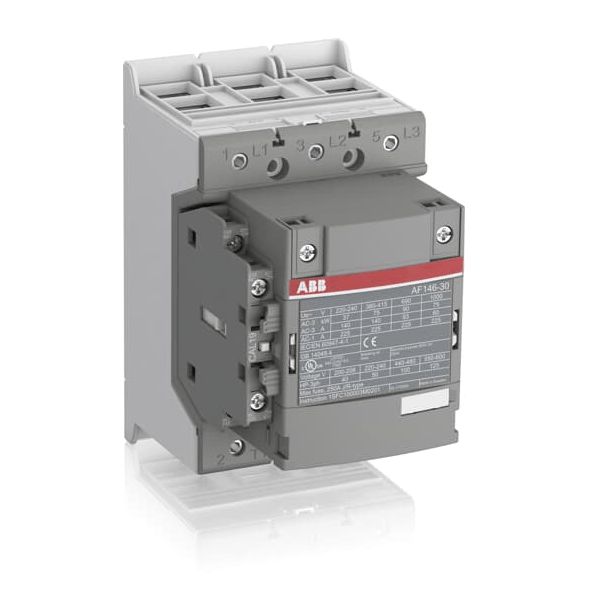

  • AF146-30-11-13 - image 0

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85364900

Popular Downloads

Dimensions

  • Product Net Width:
    90ย mm
  • Product Net Depth / Length:
    126ย mm
  • Product Net Height:
    150ย mm
  • Product Net Weight:
    1.55ย kg

Technical

  • Number of Main Contacts NO:
    3
  • Number of Main Contacts NC:
    0
  • Number of Auxiliary Contacts NO:
    1
  • Number of Auxiliary Contacts NC:
    1
  • Rated Operational Voltage:
    Main Circuit 1000 V
  • Rated Frequency (f):
    Main Circuit 50/60 Hz
  • Conventional Free-air Thermal Current (Ith):
    acc. to IEC 60947-4-1, Open Contactors q = 40 ยฐC 225 A
  • Rated Operational Current AC-1 (Ie):
    (1000 V) 40 ยฐC 225 A
    (1000 V) 55 ยฐC 200 A
    (1000 V) 60 ยฐC 200 A
    (1000 V) 70 ยฐC 175 A
    (690 V) 40 ยฐC 225
    (690 V) 55 ยฐC 200
    (690 V) 60 ยฐC 200 A
    (690 V) 70 ยฐC 175
  • Rated Operational Current AC-3 (Ie):
    (415 V) 55 ยฐC 146 A
    (440 V) 55 ยฐC 146 A
    (500 V) 55 ยฐC 130 A
    (690 V) 55 ยฐC 93 A
    (1000 V) 55 ยฐC 60 A
    (380 / 400 V) 55 ยฐC 146 A
    (220 / 230 / 240 V) 55 ยฐC 146
  • Rated Operational Power AC-3 (Pe):
    (415 V) 75 kW
    (440 V) 90 kW
    (500 V) 90 kW
    (690 V) 90 kW
    (1000 V) 75 kW
    (380 / 400 V) 75 kW
    (220 / 230 / 240 V) 45 kW
  • Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1:
    8 x Ie AC-3
  • Rated Making Capacity AC-3 acc. to IEC 60947-4-1:
    10 x Ie AC-3
  • Short-Circuit Protective Devices:
    gG Type Fuses 315 A
  • Rated Short-time Withstand Current (Icw):
    at 40 ยฐC Ambient Temp, in Free Air, from a Cold State 10 s 1168 A
    at 40 ยฐC Ambient Temp, in Free Air, from a Cold State 15 min 200 A
    at 40 ยฐC Ambient Temp, in Free Air, from a Cold State 1 min 477 A
    at 40 ยฐC Ambient Temp, in Free Air, from a Cold State 1 s 1460 A
    at 40 ยฐC Ambient Temp, in Free Air, from a Cold State 30 s 674 A
  • Maximum Breaking Capacity:
    cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 3000 A
    cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 1500 A
  • Maximum Electrical Switching Frequency:
    (AC-1) 300 cycles per hour
    (AC-2 / AC-4) 150 cycles per hour
    (AC-3) 300 cycles per hour
  • Rated Insulation Voltage (Ui):
    acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
    acc. to UL/CSA 600 V
  • Rated Impulse Withstand Voltage (Uimp):
    Main Circuit 8 kV
  • Mechanical Durability:
    5 million
  • Maximum Mechanical Switching Frequency:
    300 cycles per hour
  • Coil Operating Limits:
    (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at ฮธ โ‰ค 70 ยฐC)
  • Rated Control Circuit Voltage (Uc):
    50 Hz 100 ... 250 V
    60 Hz 100 ... 250 V
    DC Operation 100 ... 250 V
  • Coil Consumption:
    Holding at Max. Rated Control Circuit Voltage 50 Hz 6 VยทA
    Holding at Max. Rated Control Circuit Voltage 60 Hz 6 VยทA
    Holding at Max. Rated Control Circuit Voltage DC 3 W
    Pull-in at Max. Rated Control Circuit Voltage 50 Hz 130 VยทA
    Pull-in at Max. Rated Control Circuit Voltage 60 Hz 130 VยทA
    Pull-in at Max. Rated Control Circuit Voltage DC 135 W
  • Operate Time:
    Between Coil De-energization and NO Contact Opening 37 ... 47 ms
    Between Coil Energization and NO Contact Closing 25 ... 55 ms
  • Connecting Capacity Main Circuit:
    Flexible 1 x 10 ... 70 mmยฒ
    Rigid Cu-Cable 1 x 10 ... 95 mmยฒ
  • Connecting Capacity Auxiliary Circuit:
    Flexible with Ferrule 2x 0.75 ... 2.5 mmยฒ
    Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mmยฒ
    Flexible 2x0.75 ... 2.5 mmยฒ
    Solid 2 x 1 ... 4 mmยฒ
    Stranded 1 x 1 .... 4 mmยฒ
  • Degree of Protection:
    acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
    acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
  • Terminal Type:
    Double Clamp

Technical UL/CSA

  • Maximum Operating Voltage UL/CSA:
    Main Circuit 1000 V
  • General Use Rating UL/CSA:
    (600 V AC) 200 A
  • Horsepower Rating UL/CSA:
    (200 V AC) Three Phase 40 hp
    (208 V AC) Three Phase 40 hp
    (220 ... 240 V AC) Three Phase 50 hp
    (440 ... 480 V AC) Three Phase 100 hp
    (550 ... 600 V AC) Three Phase 125 hp

Environmental

  • Ambient Air Temperature:
    Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... +50 ยฐC
    Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... +70 ยฐC
    Close to Contactor for Storage -40 ... +70 ยฐC
  • Maximum Operating Altitude Permissible:
    3000 m
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
