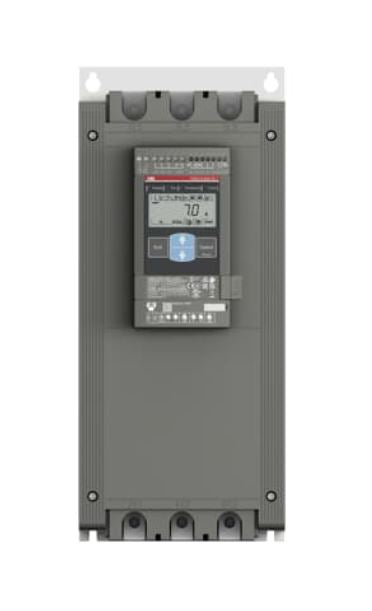

ABB 1SFA897112R7001, PSE210-600-70-1, Soft starter
ABB 1SFA897112R7001, PSE210-600-70-1, Soft starter
SKU SKU:7320500515020
1SFC132427M0201 revA 230321.pdf
Regular price
$ 3,415.00 SGD
Regular price
$ 3,756.50 SGD
Sale price
$ 3,415.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
General Information
Global Commercial Alias: PSE210-600-70-1
Extended Product Type: PSE210-600-70-1
Product ID: 1SFA897112R7001
ABB Type Designation: PSE210-600-70-1
EAN: 7320500515020
Catalog Description: PSE210-600-70-1 Softstarter - 210 A - 208 ... 600 V AC
Long Description: The softstarter PSE210-600-70-1 has a rated maximum operational current of 210 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...250 V AC at 50/60 Hz. PSE features a two-phase control with a soft start and stop through a voltage or a torque ramp. It has
built-in bypass for easy installation and energy saving. A RUN, TOR, and Event signal is available from a relay output in NO (normally open state). The PSE has functions such as current limit, kickstart, analog output, EOL, underload, and locked rotor protection. To interact with PSE, it has an Illuminated display that uses symbols to become language neutral. As an option, you can add an identical external keypad with a rating of IP66. There are three ways to communicate with PSE. It can be done by hardwire inputs Start/Stop or by Reset of fault. Another popular option is the built-in fieldbus communication Modbus RTU. You can also use an external adaptor and a Fieldbus plug. PSE is a true general purpose softstarter. It’s a perfect balance between high starting capacity and cost efficiency. Very suitable for small to medium-sized three-phase motors with nominal currents from 18...370 A. Typical applications are, for example, pumps, fans, compressors, and conveyors.
