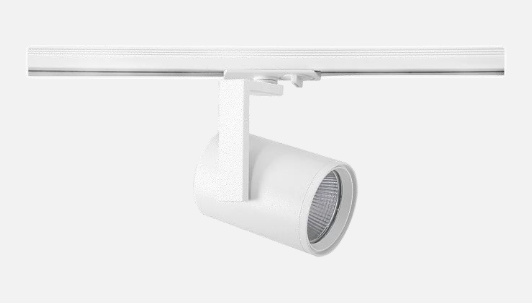

How to check Compatibility of Track Rail with Track Light Head ?

How to check Compatibility of Track Rail with Track Light Head ?

Upgrading your home’s illumination or replacing a burnt-out spotlight in an HDB flat, condo, or landed property often leads homeowners to track lighting. Track lights offer unmatched flexibility for accentuating features, lighting up feature walls, and creating ambient living room vibes.

However, one common roadblock homeowners face is buying new track heads only to realize they don't fit into the existing ceiling rail.

Track light systems are not universally interchangeable. Choosing the right light head requires knowing your track rail type. Here is a clear guide to identifying track rail systems in Singapore and picking the perfect matching track heads.

Track Rail Type Wire / Contact Setup Key Visual Feature Common Usage in SG
H-Type (Halo) 3 Wires (2 contacts on one side, 1 on the other) Contact points are spaced approximately 1 inch apart. Features a dedicated grounding bus bar inside the track. Most common standard in Singapore residential & commercial spaces.
J-Type (Juno) 2 Wires / Contacts Contact points are spaced approximately 1-inch apart, but with a distinct single contact layout. Common in older Singapore apartments and specific retail setups.
L-Type (Lightolier) 2 Wires / Contacts Contacts are closely spaced at 7/8-inch apart. Found in older commercial fit-outs and select niche residential setups.

Pro Tip: Look at the adapter connector on the base of your track light head. Count the copper contacts (pins) and measure the distance between them to verify if you have an H, J, or L system.

How to Choose LED Track Light Types? 2

led track light types

2. Modern Alternatives: Single Phase vs. Magnetic Track Systems

In modern Singapore homes—especially contemporary BTO HDBs and luxury condo renovations—two newer track styles are dominating:

A. 1-Phase / 2-Wire Standard Linear Track

  • What it is: The simple single-circuit track system where all lights on the rail turn on and off simultaneously via one switch.

  • Compatibility: Widely available across local lighting stores in Sim Lim Tower, Balestier, and Geylang. Always verify whether the track connector is 2-wire or 3-wire before purchasing standalone replacement heads.

B. Low-Voltage Magnetic Track Lights

  • What it is: A modern, ultra-slim track running on safe low-voltage DC power (usually 24V or 48V). Light heads click effortlessly into the rail using magnets and safety latches.

  • Compatibility: Magnetic track heads only fit magnetic tracks. You cannot plug a standard H-Type or 220V AC track spotlight into a magnetic track system.

3. How to Check Track Head Compatibility Before Buying

Before purchasing new LED track light heads online or from a local distributor:

  1. Snap a photo of the adapter pin: Take down the existing track head and take a picture of the top connector (the part that inserts into the rail).

  2. Check for Single or Dual Circuit:

    • Single Circuit (1-Phase): Controls all light heads together.

    • Dual Circuit (2-Phase): Allows independent control of different light head groups on the same rail (requires dual switches and matching dual-circuit tracks).

  3. Match Voltage Ratings: Standard Singapore mains electricity runs at 230V AC (50Hz). Standard track systems connect directly to mains wiring, while low-voltage magnetic systems require an external or embedded LED transformer/driver.

4. Popular Types of Track Light Heads in Singapore

Once track compatibility is confirmed, choose the light head style that best fits the space:

  • Spotlight Heads (Gimbal / Step / Round Back): Perfect for highlighting artwork, feature walls, or direct task lighting over dining tables and kitchen counters.

  • Pendant Lights: Track-mounted pendants combine ambient decorative lighting with easy positioning along the rail.

  • Linear Floodlight Modules: Ideal for magnetic track systems to provide wide, direct general lighting across living rooms or hallways.

Final Checklist for Singapore Homeowners

  • Measure and match: Determine if the rail is H-Type (3-wire), J/L-Type (2-wire), or Magnetic.

  • Confirm driver requirement: Check if the setup is direct 230V mains power or low-voltage (magnetic).

  • Verify local compliance: Ensure track systems and LED drivers carry valid Safety Marks or meet local SP Group / EMA electrical safety standards.
