RS PRO Xenon Beacon, Flashing, Stud Mount, Surface Mount x2Pcs
RS PRO Xenon Beacon, Flashing, Stud Mount, Surface Mount x2Pcs
SKU SKU:187-9653
78 in stock
Share
Technical Details:
Datasheet for 18 → 30 V dc, Red
Datasheet for 18 → 30 V dc, Amber
Datasheet for 10 → 100 V dc, 20 → 72 V ac, Amber
Datasheet for 10 → 100 V dc, 20 → 72 V ac, Red
Datasheet for 115 → 230 V ac, Amber
Datasheet for 115 → 230 V ac, Red

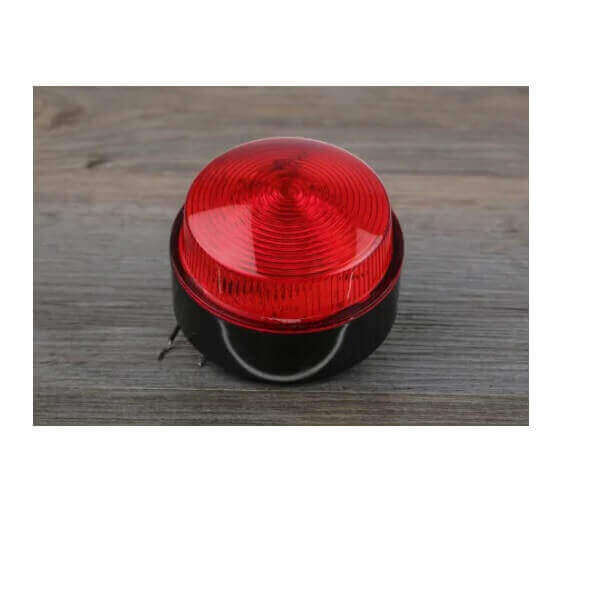

RS PRO Industrial Flashing Xenon Beacons
Introducing industrial Xenon beacons from RS PRO, a range of high quality flashing beacons ideal for use in a wide range of applications requiring a low cost and energy efficient signalling solution. This range of durable flashing beacons are available in red and amber, with varying voltages and current draws to suit your needs. The units are supplied fully assembled to enable quick and easy installation via a stud mount or surface mount using the two piece fixing plate (supplied). The snap fit design of the mounting plates allows you to install the xenon beacons with ease, with one plate being attached to the beacon and the other to the surface. These xenon amber and red beacons features an IP67 rating when installed using the foam gasket supplied, ensuring excellent protection from dust and water ingress both indoors and outdoors. This range of flashing beacons from RS PRO are suitable for light and heavy industrial signalling applications, producing a powerful flashing light source to signal hazards and emergencies.
Features and benefits
• Quick and easy installation
• Available in red or amber
• Suitable for a range of signalling applications
• Powerful flashing signal light
• Snap fit mounting plate design
• IP67 rating offering protection from dust and water ingress
• Ideal for use both indoors and outdoors
Application
Xenon beacons are an excellent low cost and energy efficient signalling solution ideal for use in industrial applications. They are available in a variety of sizes and colours, most commonly red, amber and green and emit a powerful flashing light that can be used to signal emergencies, hazards and more. xenon beacons are used in a variety of industrial applications with high levels of ambient noise such as:
• Warehouses
• Factories
• Machinery
• Vehicles
• Walkways
• Emergency exits
18 → 30 V dc, Red
Attribute | Value |
---|---|
Supply Voltage | 18 → 30 V dc |
Light Effect | Flashing |
Lens Colour | Red |
Mounting Style | Stud Mount, Surface Mount |
Bulb Type | Xenon |
Current Consumption | 40mA |
Current Type | DC |
Base Diameter | 76mm |
Height | 50mm |
IP Rating | IP67 |
18 → 30 V dc, Amber
Attribute | Value |
---|---|
Supply Voltage | 18 → 30 V dc |
Light Effect | Flashing |
Lens Colour | Amber |
Mounting Style | Stud Mount, Surface Mount |
Bulb Type | Xenon |
Current Consumption | 40mA |
Current Type | DC |
Base Diameter | 76mm |
Height | 50mm |
IP Rating | IP67 |
10 → 100 V dc, 20 → 72 V ac, Amber
Attribute | Value |
---|---|
Supply Voltage | 10 → 100 V dc, 20 → 72 V ac |
Light Effect | Flashing |
Lens Colour | Amber |
Mounting Style | Stud Mount, Surface Mount |
Bulb Type | Xenon |
Current Type | AC, DC |
Current Consumption | 110mA |
Base Diameter | 76mm |
Height | 50mm |
IP Rating | IP67 |
10 → 100 V dc, 20 → 72 V ac, Red
Attribute | Value |
---|---|
Supply Voltage | 10 → 100 V dc, 20 → 72 V ac |
Light Effect | Flashing |
Lens Colour | Red |
Mounting Style | Stud Mount, Surface Mount |
Bulb Type | Xenon |
Current Type | AC, DC |
Current Consumption | 110mA |
Base Diameter | 76mm |
Height | 50mm |
IP Rating | IP67 |
115 → 230 V ac, Amber
Attribute | Value |
---|---|
Supply Voltage | 115 → 230 V ac |
Light Effect | Flashing |
Lens Colour | Amber |
Mounting Style | Stud Mount, Surface Mount |
Bulb Type | Xenon |
Current Type | AC |
Current Consumption | 50 mA, 100 mA |
Base Diameter | 76mm |
Height | 50mm |
IP Rating | IP67 |
115 → 230 V ac, Red
Attribute | Value |
---|---|
Supply Voltage | 115 → 230 V ac |
Light Effect | Flashing |
Lens Colour | Red |
Mounting Style | Stud Mount, Surface Mount |
Bulb Type | Xenon |
Current Type | AC |
Current Consumption | 50 mA, 100 mA |
Base Diameter | 76mm |
Height | 50mm |
IP Rating | IP67 |
