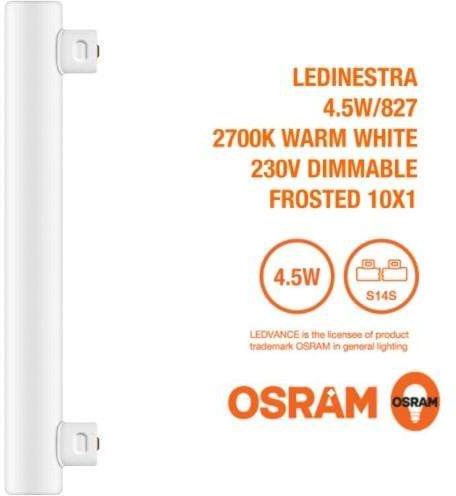

Osram LED Inestra Advanced- LED Light for Room x10PCs
Osram LED Inestra Advanced- LED Light for Room x10PCs
SKU SKU:4058075135567
Couldn't load pickup availability
Share
TECHNICAL DATA
Electrical data
|
Rated wattage |
4.50 W / 7 W |
|
Nominal wattage |
4.50 W / 7 W |
|
Nominal voltage |
220…240 V |
|
Max. lamp no. on circuit break. 10 A (B) |
400 / 200 |
|
Max. lamp no. on circuit break. 16 A (B) |
500 / 400 |
|
Operating frequency |
50…60 Hz |
|
Inrush current |
0.6 A |
|
Claimed equiv. conventional lamp power |
25 W / 40 W |
Photometrical data
|
Lumen main.fact.at end of nom.life time |
0.70 |
|
Light color (designation) |
Warm White |
|
Color temperature |
2700 K |
|
Luminous flux |
250 lm / 470 lm |
|
Color rendering index Ra |
≥80 |
|
Nominal luminous flux |
250 lm / 470 lm |
Dimensions & weight
|
Overall length |
300.0 mm / 500 mm |
Temperatures & operating conditions
|
Ambient temperature range |
-20…+40 °C |
|
Maximum temperature at tc test point |
60 °C |
Lifespan
|
Nominal lamp life time |
25000 h |
|
Rated lamp life time |
25000 h |
|
Number of switching cycles |
100000 |
Additional product data
|
Base (standard designation) |
S14s |
|
Mercury-free |
Yes |
Capabilities
|
Dimmable |
Yes |
Certificates & standards
|
Photobiological safety group EN62778 |
RG0 |
|
Energy efficiency class |
A |
Country-specific categorizations
|
Order reference |
LEDINESTRA4,5W / LEDINESTRA 7W/8 |
| Dimensions (length x width x height) 1PC |
33 mm x 50 mm x 307 mm |
|
Dimensions (length x width x height) 10PCS |
570 mm x 215 mm x 155 mm |
